GENERATOR

RM-Z250 2004 (K4) USA (E03) RMZ250 RM Z250

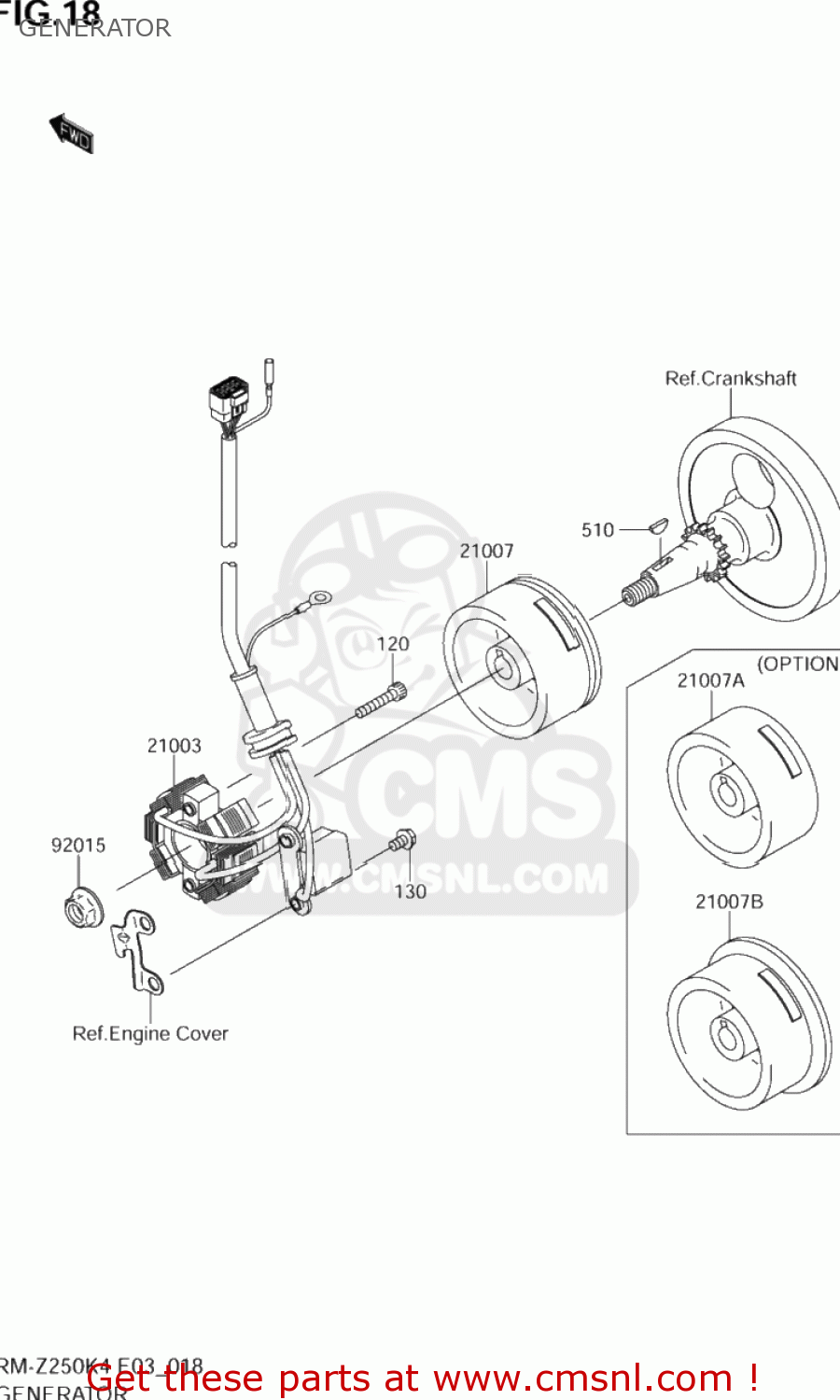

Generator diagram RM-Z250 2004 (K4) USA (E03) RMZ250 RM Z250

prices are in EUR

ref

part #

description

quantity

120

KK120P0525
ref: 120
K120C-A0525

BOLT-SOCKET

€ 1.00

130

KK130P0510
ref: 130
K130C-A0510

BOLT FLANGED

€ 1.00

510

KK510A3200
ref: 510

KEY-WOODRUFF

€ 5.00

21003

K210030015
ref: 21003

STATOR

€ 276.50

21007

K210070017
ref: 21007

ROTOR

€ 228.50

21007A

K210070022
ref: 21007A

ROTOR,I=3.6

€ 241.00

21007B

K210070023
ref: 21007B

ROTOR,I=4.8

€ 241.00

92015

K920151428
ref: 92015

NUT,FLANGED,10MM

€ 4.00
