FRAME COVER

RM-Z450 2013 (L3) USA (E03) RMZ450 RM Z450

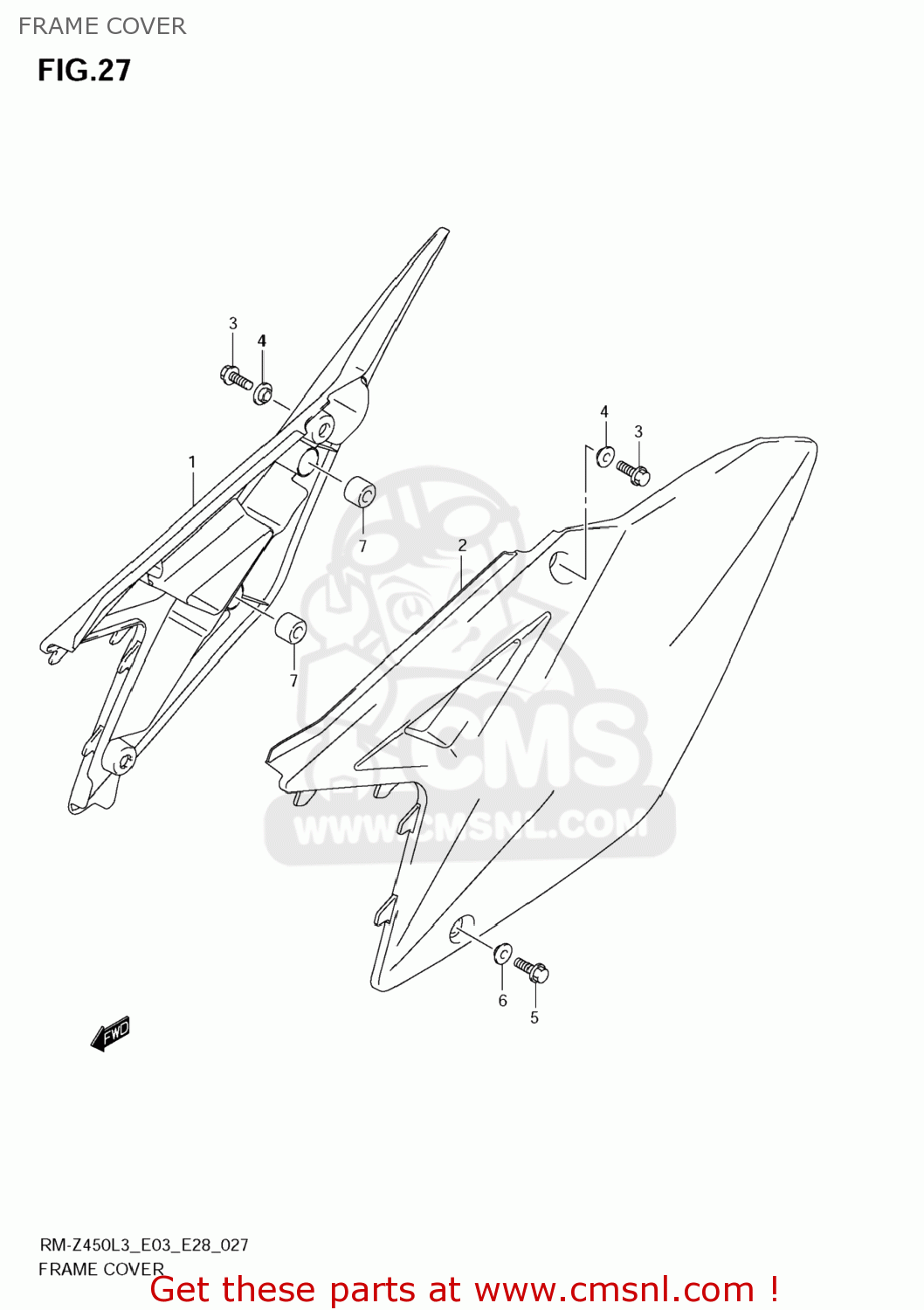

Frame cover diagram RM-Z450 2013 (L3) USA (E03) RMZ450 RM Z450

FRAME COVER RM-Z450 2013 (L3) USA (E03) RMZ450 RM Z450

FRAME COVER RM-Z450 2013 (L3) USA (E03) RMZ450 RM Z450

prices are in EUR

ref

part #

description

quantity

1

4711128H0230H
ref: 1

COVER,FRAME,R(WHITE)

€ 133.50

2

4721128H0030H
ref: 2

COVER,FRAME,L(WHITE)

€ 132.50

3

015470620A
ref: 3

BOLT

€ 2.50

4

4719128H00
ref: 4

WASHER,FRAME COVER & SEAT

€ 6.00

5

015470616A
ref: 5

BOLT

€ 2.00

6

4719128H00
ref: 6

WASHER,FRAME COVER & SEAT

€ 6.00

7

4716108G00
ref: 7

CUSHION

€ 5.00
