MAGNETO

RM-Z450 2013 (L3) USA (E03) RMZ450 RM Z450

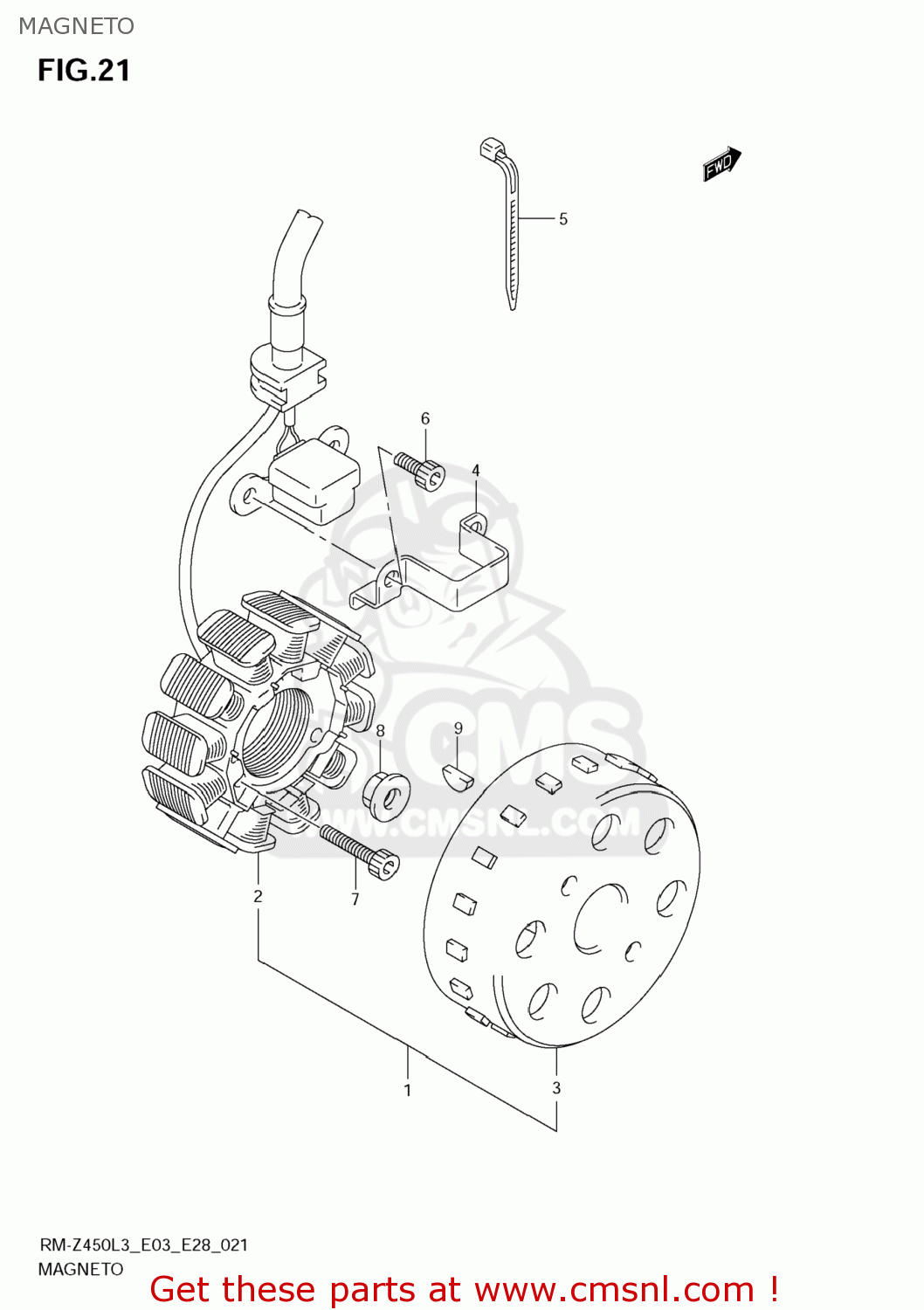

Magneto diagram RM-Z450 2013 (L3) USA (E03) RMZ450 RM Z450

MAGNETO RM-Z450 2013 (L3) USA (E03) RMZ450 RM Z450

MAGNETO RM-Z450 2013 (L3) USA (E03) RMZ450 RM Z450

prices are in EUR

ref

part #

description

quantity

1

3210028HA0
ref: 1

MAGNETO ASSY

€ 930.00

2

3210128HA0
ref: 2

STARTER ASSY

€ 348.50

3

3210228HA0
ref: 3

ROTOR ASSY

€ 437.50

4

3237135G00
ref: 4

CLAMP,MAGNETO LEAD

€ 6.50

5

0940718402
ref: 5

CLAMP(L:165)

€ 3.50

6

071300512A
ref: 6

BOLT

€ 3.50

7

071300525A
ref: 7

BOLT

€ 2.00

8

083161012B
ref: 8

NUT

€ 3.00

9

0834131039
ref: 9

KEY

€ 2.50
