FUEL PUMP

RM-Z450 2013 (L3) USA (E03) RMZ450 RM Z450

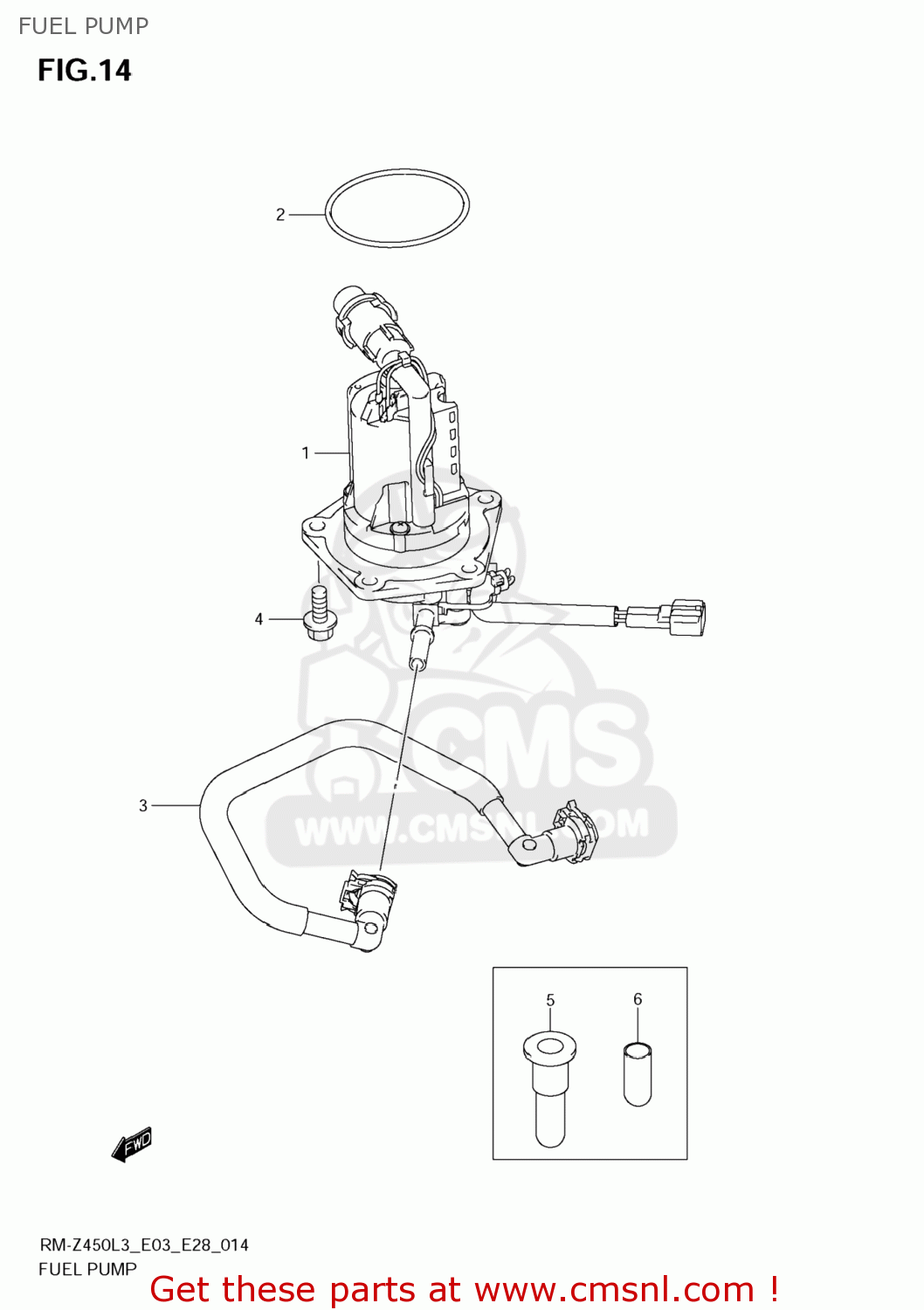

Fuel pump diagram RM-Z450 2013 (L3) USA (E03) RMZ450 RM Z450

FUEL PUMP RM-Z450 2013 (L3) USA (E03) RMZ450 RM Z450

FUEL PUMP RM-Z450 2013 (L3) USA (E03) RMZ450 RM Z450

prices are in EUR

ref

part #

description

quantity

1

1510028H10
ref: 1

PUMP ASSY,FUEL

€ 476.50

2

1511128H00
ref: 2

O RING

€ 13.00

3

1581028H20
ref: 3

HOSE,FUEL

€ 56.00

4

015470620A
ref: 4

BOLT

€ 2.50

5

1581928H00
ref: 5

CAP,FUEL HOSE

€ 2.50

6

1511428H00
ref: 6

CAP,FUEL PUMP

€ 2.50
