FRONT FENDER

RM-Z450 2013 (L3) USA (E03) RMZ450 RM Z450

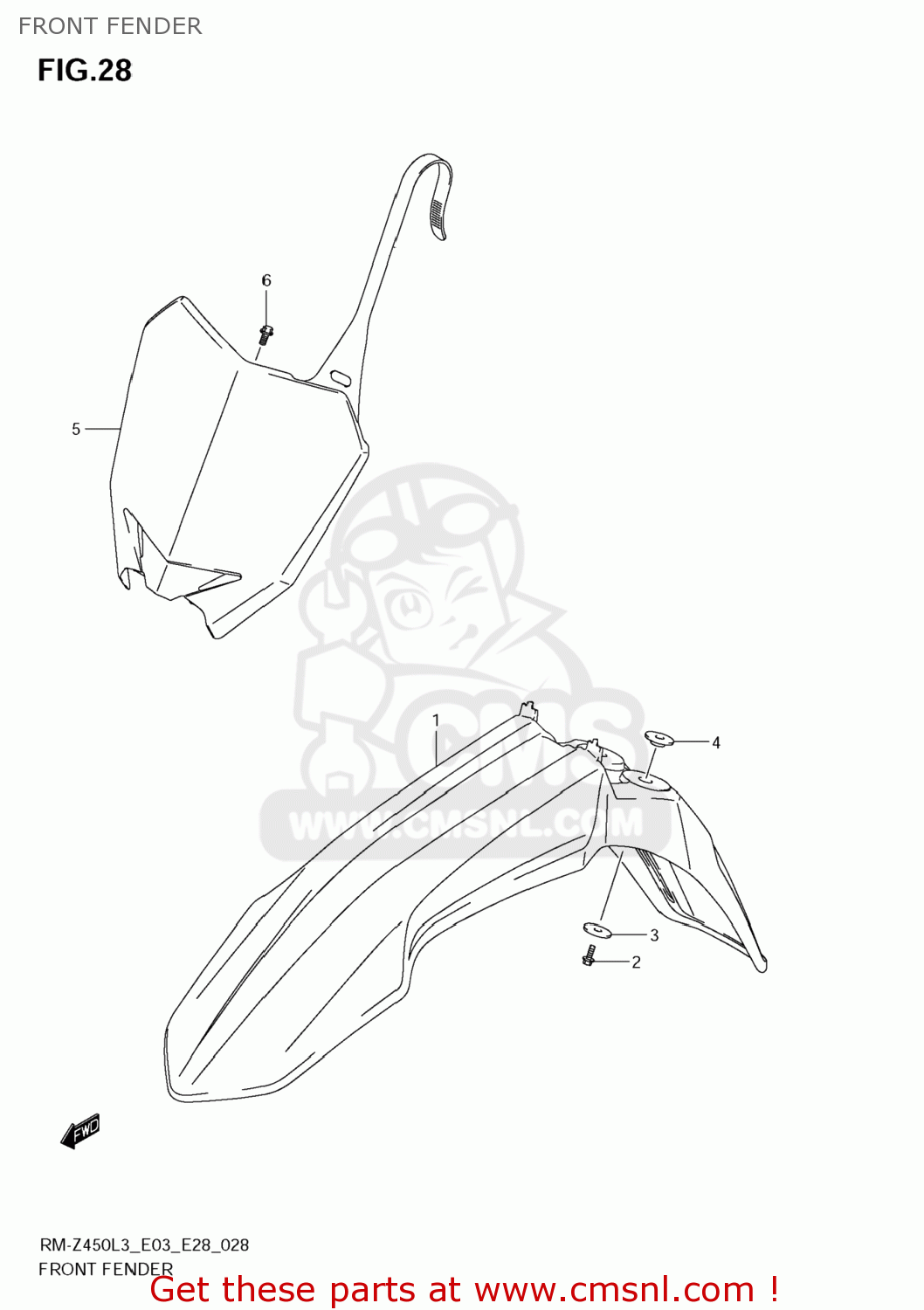

Front fender diagram RM-Z450 2013 (L3) USA (E03) RMZ450 RM Z450

FRONT FENDER RM-Z450 2013 (L3) USA (E03) RMZ450 RM Z450

FRONT FENDER RM-Z450 2013 (L3) USA (E03) RMZ450 RM Z450

prices are in EUR

ref

part #

description

quantity

1

5311128H00YU1
ref: 1

FENDER,FR

€ 87.50

2

015470616A
ref: 2

BOLT

€ 2.00

3

4413535G00
ref: 3

WASHER,FUEL TANK FR

€ 6.50

4

0916906078
ref: 4

WASHER

€ 3.00

5

9491128H02YU1
ref: 5

PLATE,NUMBER FR

€ 27.00

6

0911606197
ref: 6

BOLT(6X12)

€ 2.50
