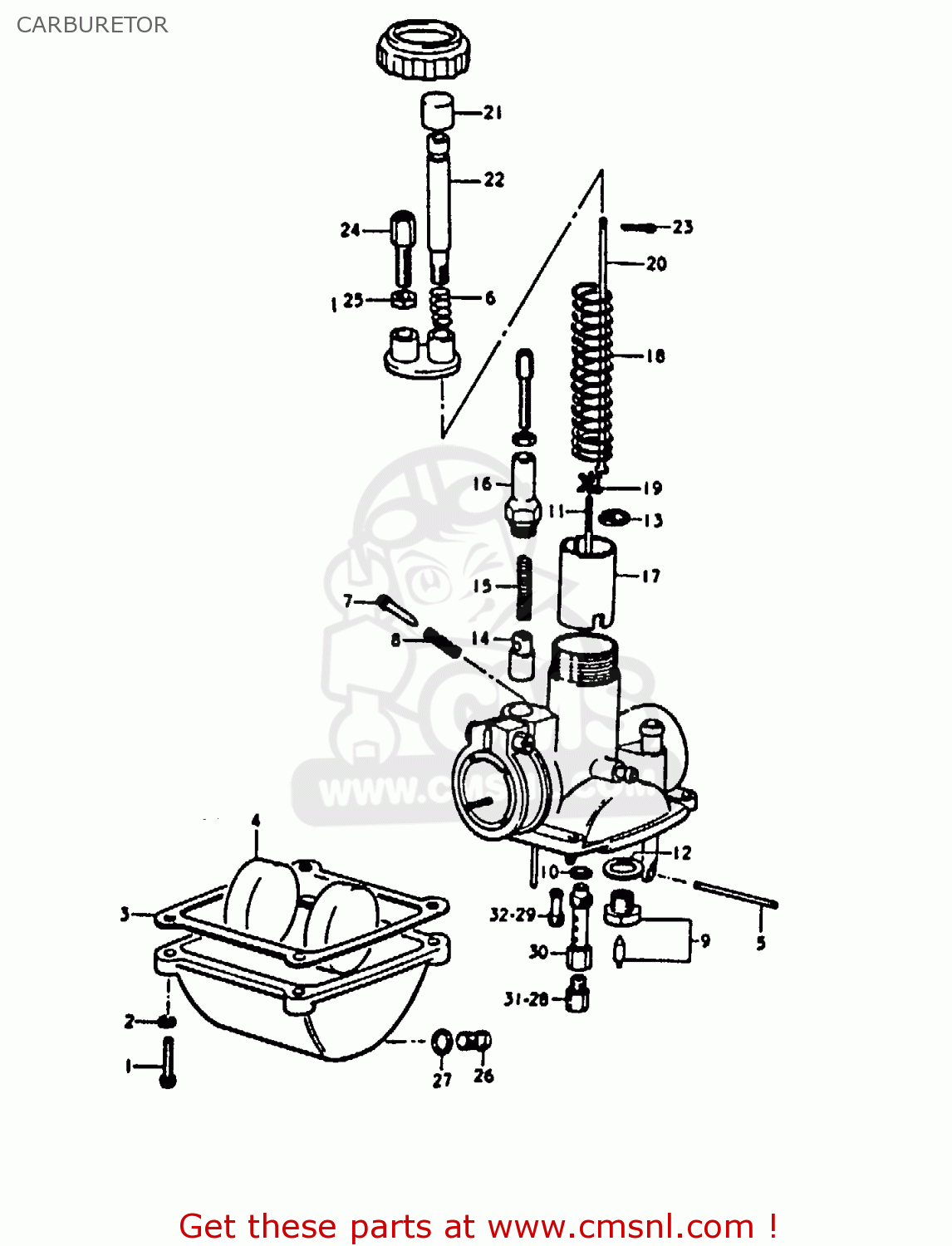

CARBURETOR

ref

part #

description

quantity

0

1320012602
ref: 0
FROM 13200-12601

CARBURETOR ASSEMBLY

€ 166.50

1

0211204208
ref: 1

SCREW

€ 1.00

2

0832121048
ref: 2

LOCK WASHER

€ 2.00

3

1325109211
ref: 3

GASKET,FLOAT CHAMBER (NAS)

€ 6.50

4

1325209210
ref: 4

FLOAT

€ 23.00

5-1

1325401010
ref: 5-1

PIN,FLOAT

€ 3.00

6

1326805010
ref: 6

SPRING,THROTTLE STOP SCREW

€ 5.50

7

1326901010
ref: 7

SCREW,PILOT AIR

€ 14.50

8

1326801010
ref: 8

SPRING

€ 3.50

9

1337009211
ref: 9

VALVE ASSY,NEEDLE

€ 55.00

10

1338203110
ref: 10

WASHER

€ 2.50

11

1338312011
ref: 11

NEEDLE,JET

€ 12.50

12

1339201010
ref: 12

GASKET,NEEDLE VALVE (NAS)

€ 2.50

13

1339412110
ref: 13

CLIP,NEEDLE

€ 3.00

14

1341101010
ref: 14

PLUNGER,STARTER

€ 14.00

15

1341701010
ref: 15

SPRING

€ 3.50

16

1341803110
ref: 16

CAP,STARTER PLUNGER

€ 6.50

17-1

1355112110
ref: 17-1
CA:2.5

VALVE,THROTTLE

€ 40.50

18

1357336110
ref: 18
FROM 13573-09210

SPRING,THROTTLE VALVE

€ 3.00

19

1358109210
ref: 19

STOPPER,NEEDLE CLIP

€ 5.50

20

1329611010
ref: 20

ROD,THROTTLE VALVE ADJUST

€ 6.50

21

1368808010
ref: 21

CAP,THROTTLE VALVE STOP SCREW

€ 4.00

22

1326705010
ref: 22

SCREW,THROTTLE STOP

€ 10.50

23

0411112108
ref: 23

PIN 12X10

€ 2.00

24

1357703010
ref: 24

ADJUSTER,CABLE

€ 8.00

25

1366103010
ref: 25

NUT

€ 3.50

26

1324705010
ref: 26

PLUG

€ 6.00

27

1324905010
ref: 27

GASKET,DRAIN,PLUG (NAS)

€ 1.50

28

0949175001
ref: 28
#75

JET,MAIN

€ 6.50

29-1

0949235001
ref: 29-1
#35 FOR 13200-12601

JET,PILOT

€ 6.50

30

0949400029
ref: 30
E-O

JET,NEEDLE

€ 17.50

31-1

0949165001
ref: 31-1
#65 OPT

JET,MAIN

€ 7.00

31-2

0949170001
ref: 31-2
#70 OPT

JET,MAIN

€ 6.00

31-3

0949180001
ref: 31-3
#80 OPT

JET,MAIN (80)

€ 12.00

31-4

0949185001
ref: 31-4
#85 OPT

JET,MAIN (85)

€ 10.00

31-5

0949190001
ref: 31-5
#90 OPT

JET,MAIN (90)

€ 6.50

32

0949240002
ref: 32
#40 OPT

JET,PILOT

€ 10.00

all assemblies
