HEADLAMP (A100-4,K,L)
A100 1973 (K) UNITED KINGDOM (E02)

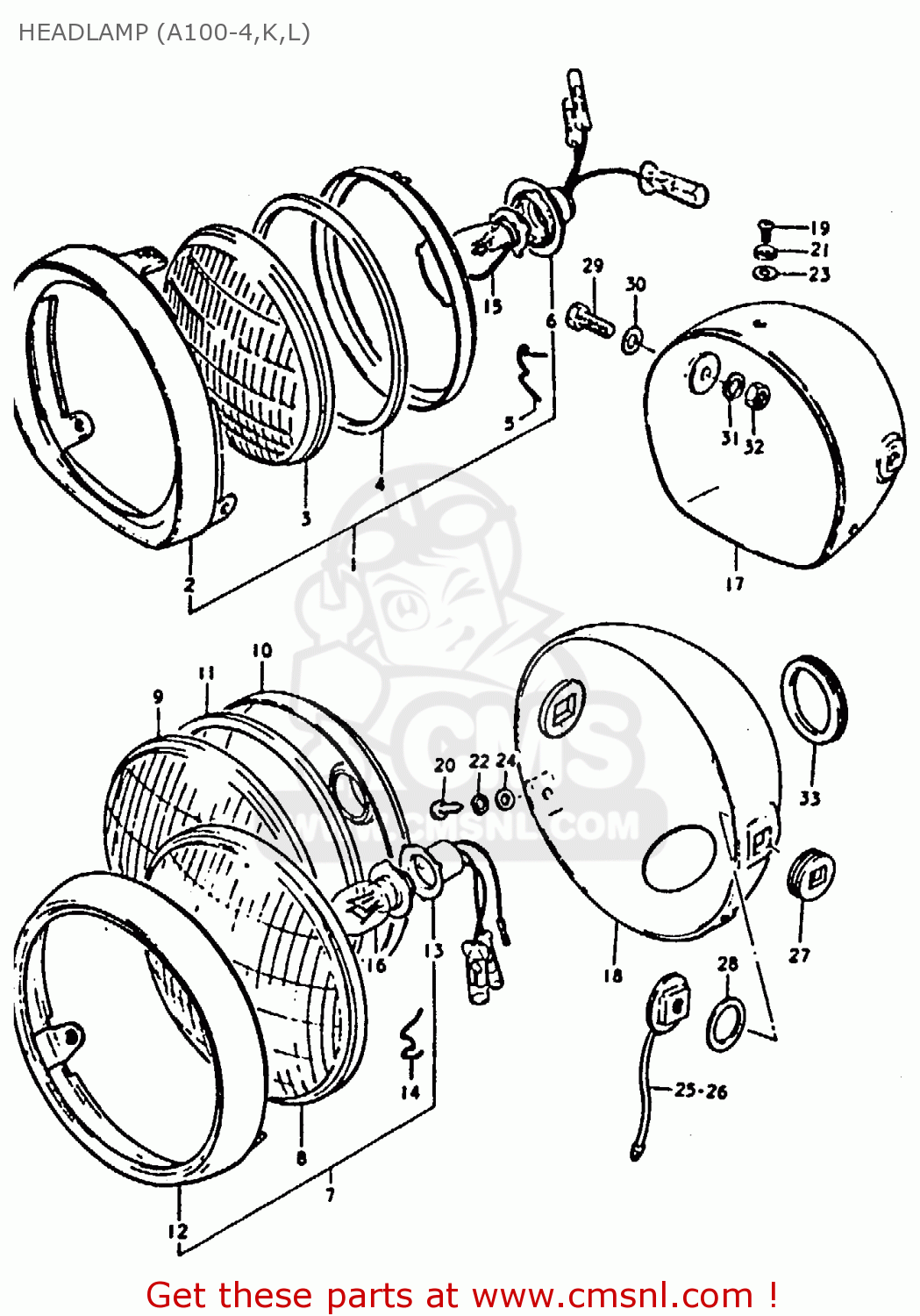

Headlamp (a100-4,k,l) diagram A100 1973 (K) UNITED KINGDOM (E02)
HEADLAMP (A100-4,K,L) A100 1973 (K) UNITED KINGDOM (E02)
×
prices are in EUR
ref
part #
description
quantity
7
3510025323999
ref: 7
FROM 35100-28023 WIT
HEADLAMP ASSEMBLY
€ 89.00
8
3512127220
ref: 8
FROM 35121-28021
UNIT
€ 80.00
9
3512427222
ref: 9
TO 35124-25324
LENS,HEADLAMP
€ 18.50
10
3512325322
ref: 10
REFLECTOR
€ 30.50
11
3512527222
ref: 11
GASKET (NAS)
€ 5.50
12
3511127221
ref: 12
RIM,HEADLAMP
€ 33.50
13
3517128021
ref: 13
SOCKET
€ 22.50
14
3512827221
ref: 14
SPRING
€ 2.50
16
0947106015
ref: 16
6V,25/25W
BULB
€ 7.50
18-1
5181026000138
ref: 18-1
HOUSING, HEADLAMP
€ 63.00
18-2
5181026000195
ref: 18-2
HOUSING, HEADLAMP
€ 63.00
18-3
5181026000157
ref: 18-3
HOUSING, HEADLAMP
€ 63.00
18-4
5181026000798
ref: 18-4
HOUSING, HEADLAMP
€ 63.00
20
0211204128
ref: 20
SCREW
€ 1.50
22
0832121048
ref: 22
LOCK WASHER
€ 2.00
24
0832221048
ref: 24
WASHER
€ 2.00
25-1
5182127301
ref: 25-1
9.3 TO 51820-36200 U
SPACER, HOUSING RH
€ 9.00
25-2
5182036200
ref: 25-2
L:10
PLATE,HEADLAMP HOUSING
€ 9.00
26-1
5182227301
ref: 26-1
L:9.3 TO 51860-36200
SPACER, HOUSING LH
€ 9.00
26-2
5186036200
ref: 26-2
L:10
SPACER
€ 9.00
27-1
5182727301
ref: 27-1
L:11.1
CUSHION,HEADLAMP HOUSING
€ 3.00
27-2
5182727302
ref: 27-2
L:11.7
CUSHION,HEADLAMP HOUSING
€ 3.00
28
5182825300
ref: 28
21X27X0.7
WASHER,HEADLAMP HOUSING
€ 2.00
29-2
0120408207
ref: 29-2
BOLT
€ 3.00
30
0832211088
ref: 30
WASHER
€ 2.00
31
0832121088
ref: 31
LOCK WASHER
€ 2.00
33
5184531031
ref: 33
FROM 51845-31030
GROMMET,HEADLAMP HOUSING
€ 4.00
