A100 1973 (K) UNITED KINGDOM (E02)

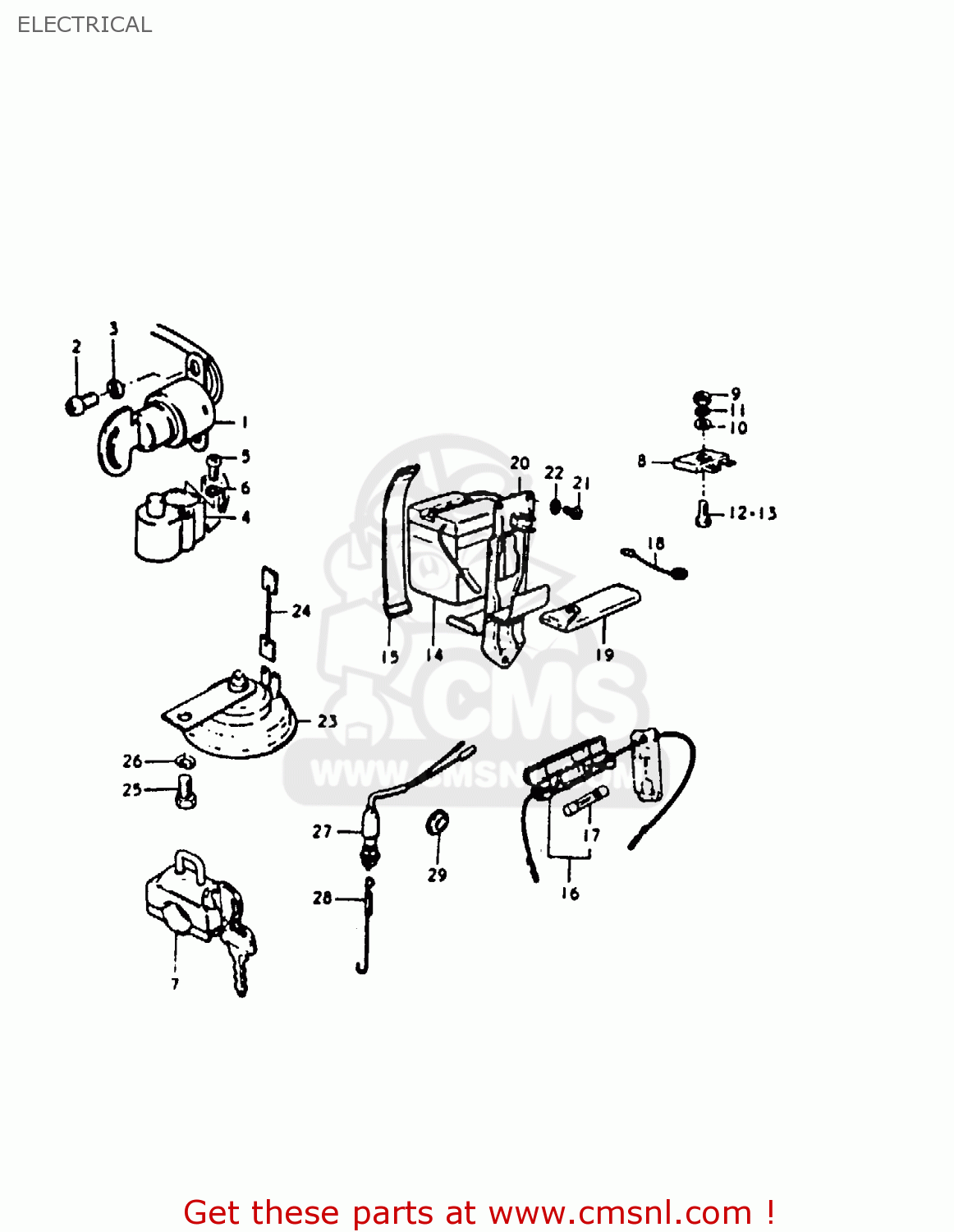

Electrical diagram A100 1973 (K) UNITED KINGDOM (E02)
ELECTRICAL A100 1973 (K) UNITED KINGDOM (E02)
×
prices are in EUR
ref
part #
description
quantity
1
3711021012
ref: 1
FROM 37110-21011
SWITCH ASSEMBLY,IGNITION
€ 115.00
2
0211206128
ref: 2
SCREW 6X12
€ 2.00
3
0832121068
ref: 3
LOCK WASHER
€ 2.50
4
5191025310
ref: 4
FROM 50000-25837
LOCK ASSEMBLY,STEERING
€ 22.50
5
0211205128
ref: 5
SCREW
€ 2.50
6
0832121068
ref: 6
LOCK WASHER
€ 2.50
7
9000131817
ref: 7
LOCK ASSY, HELMET
€ 57.50
8
3280019063
ref: 8
RECTIFIER ASSEMBLY
€ 10.50
9
0831011058
ref: 9
NUT
€ 2.50
10
0832221058
ref: 10
WASHER
€ 2.50
11
0832121058
ref: 11
LOCK WASHER
€ 2.00
12
0110405208
ref: 12
BOLT 5X20
€ 2.50
14
3361003010
ref: 14
6V,4AH
BATTERY ASSY(6N4-2A4.2AH)
€ 42.00
15
0946200007
ref: 15
BAND
€ 5.00
16-1
3674015010
ref: 16-1
BOX ASSEMBLY,FUSE
€ 11.00
17-1
0948115001
ref: 17-1
15A
FUSE(15A)
€ 3.00
19
0980000108
ref: 19
TOOL SET
€ 43.50
20-1
4154005100
ref: 20-1
HOLDER,BATTERY
€ 15.00
21
0912806004
ref: 21
SCREW(6X10)
€ 1.50
22
0832121068
ref: 22
LOCK WASHER
€ 2.50
23
3850023031
ref: 23
WITH 36870-23020
HORN ASSEMBLY
€ 30.00
24
3687023030
ref: 24
LEAD WIRE
€ 5.50
25
0110708128
ref: 25
BOLT 8X12
€ 2.50
26
0832121088
ref: 26
LOCK WASHER
€ 2.00
27-1
3774019051
ref: 27-1
SWITCH ASSY, STOP LAMP
€ 22.00
28
0944306019
ref: 28
SPRING
€ 3.50
29
0930812001
ref: 29
GROMMET
€ 6.50
