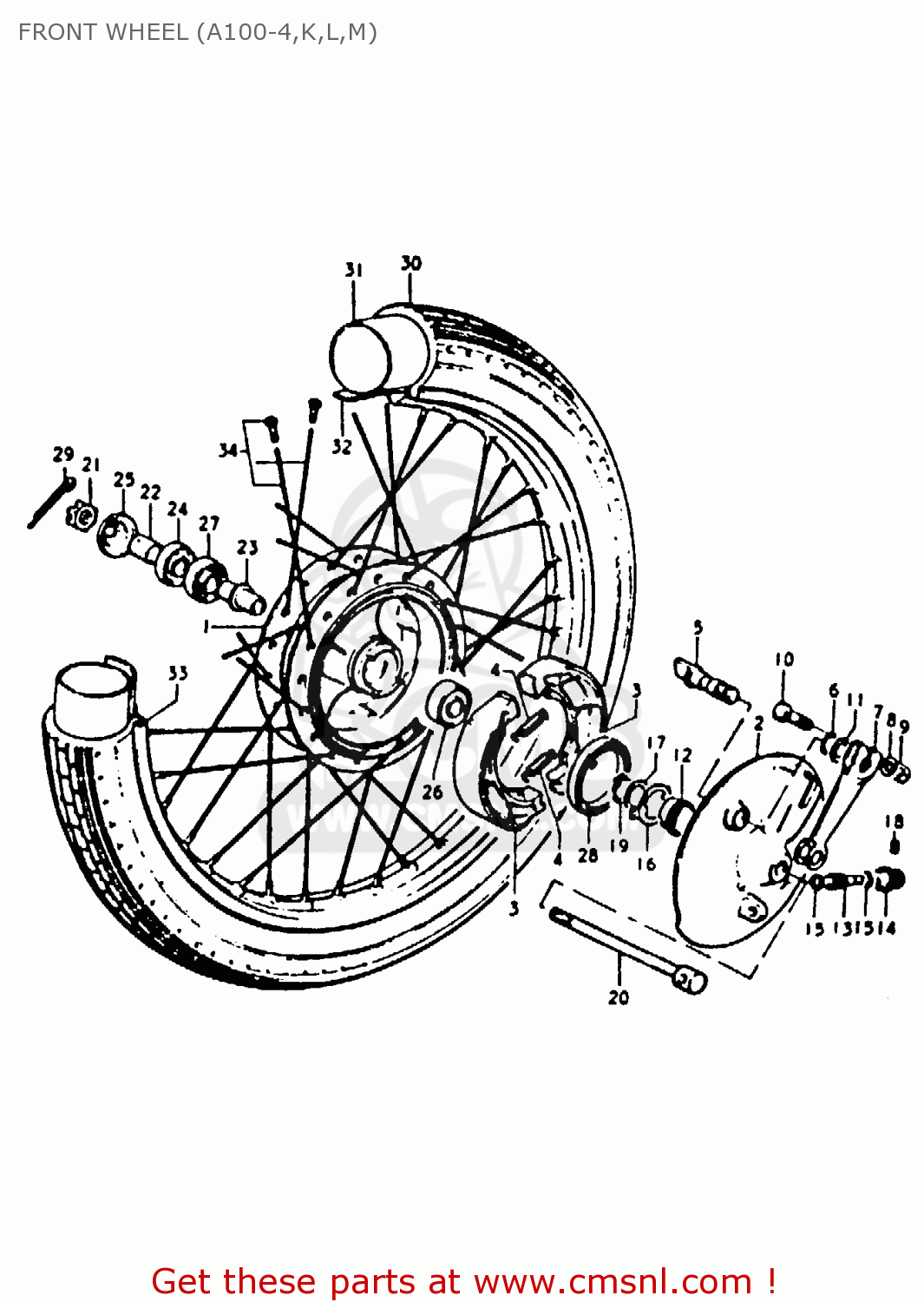

FRONT WHEEL (A100-4,K,L,M)

ref

part #

description

quantity

1

5411001004
ref: 1

HUB,FRONT

€ 91.00

2

5421003006
ref: 2

PANEL,FRONT BRAKE ANCHOR

€ 60.00

3

5441001005
ref: 3

SHOE,BRAKE

€ 39.00

4

0944307001
ref: 4

SPRING(L:34)

€ 2.50

5

5444101002
ref: 5
FROM 54441-01001

CAM,FR BRAKE

€ 19.50

6

0928012001
ref: 6

O RING(D:2.5,ID:11.4)

€ 2.50

7

5445103002
ref: 7

LEVER,FR BRAKE CAM

€ 10.50

8

0832221068
ref: 8

WASHER

€ 2.00

9

0831011068
ref: 9

NUT

€ 2.50

10

0910006050
ref: 10
6X31

BOLT

€ 1.50

11

0916012011
ref: 11
12.5X20X1

WASHER(12.5X20X1)

€ 1.50

12

5461123201
ref: 12
NT:26

GEAR, SPEEDOMETER (NT:26)

€ 16.00

13

5462123200
ref: 13

PINION, SPEEDOMETER

€ 19.50

14

5463201001
ref: 14

BUSH,METER GEAR OUTER

€ 9.00

15

0916005001
ref: 15
5.1X9X0.4

WASHER (5.1X9X0.4)

€ 2.00

16

5466103000
ref: 16

DRIVER,SPEEDOMETER GEAR

€ 3.00

17

0916016005
ref: 17
16X22X1

WASHER(16X22X1)

€ 1.50

18

0913403101
ref: 18

SCREW

€ 1.50

19

0833131159
ref: 19

CIRCLIP,15MM

€ 2.00

20

5471103601
ref: 20

AXLE,FRONT

€ 17.50

21

0831431108
ref: 21

NUT

€ 1.50

22

0918010003
ref: 22
10X15X12.4

SPACER(10X15X12.4)

€ 3.50

23

5473001000
ref: 23

SPACER,FRONT HUB BEARING

€ 11.50

24

0928415001
ref: 24

SEAL,OIL(15X31X5)

€ 4.00

25

5489201000
ref: 25

COVER,FRONT HUB DUST S

€ 3.00

26

0814363000
ref: 26

BEARING, LH

€ 12.50

27

0811362000
ref: 27

BEARING

€ 7.50

28

0928543001
ref: 28

OIL SEAL (43X58X7)

€ 10.00

29

0411120308
ref: 29

COTTER PIN

€ 1.00

30

5510014011
ref: 30
2.50-18

TIRE,FRONT

€ 78.50

31

5520014010
ref: 31
2.50-18

TUBE,INNER

€ 22.00

32

5526114010
ref: 32

PROTECTOR,WHEEL,INNER

€ 3.50

33

5531112120
ref: 33
1.40X18

RIM,WHEEL(1.40X18)

€ 85.00

34

5530021807
ref: 34

SPOKE SET

€ 31.50
