FRAME
A100 1973 (K) UNITED KINGDOM (E02)

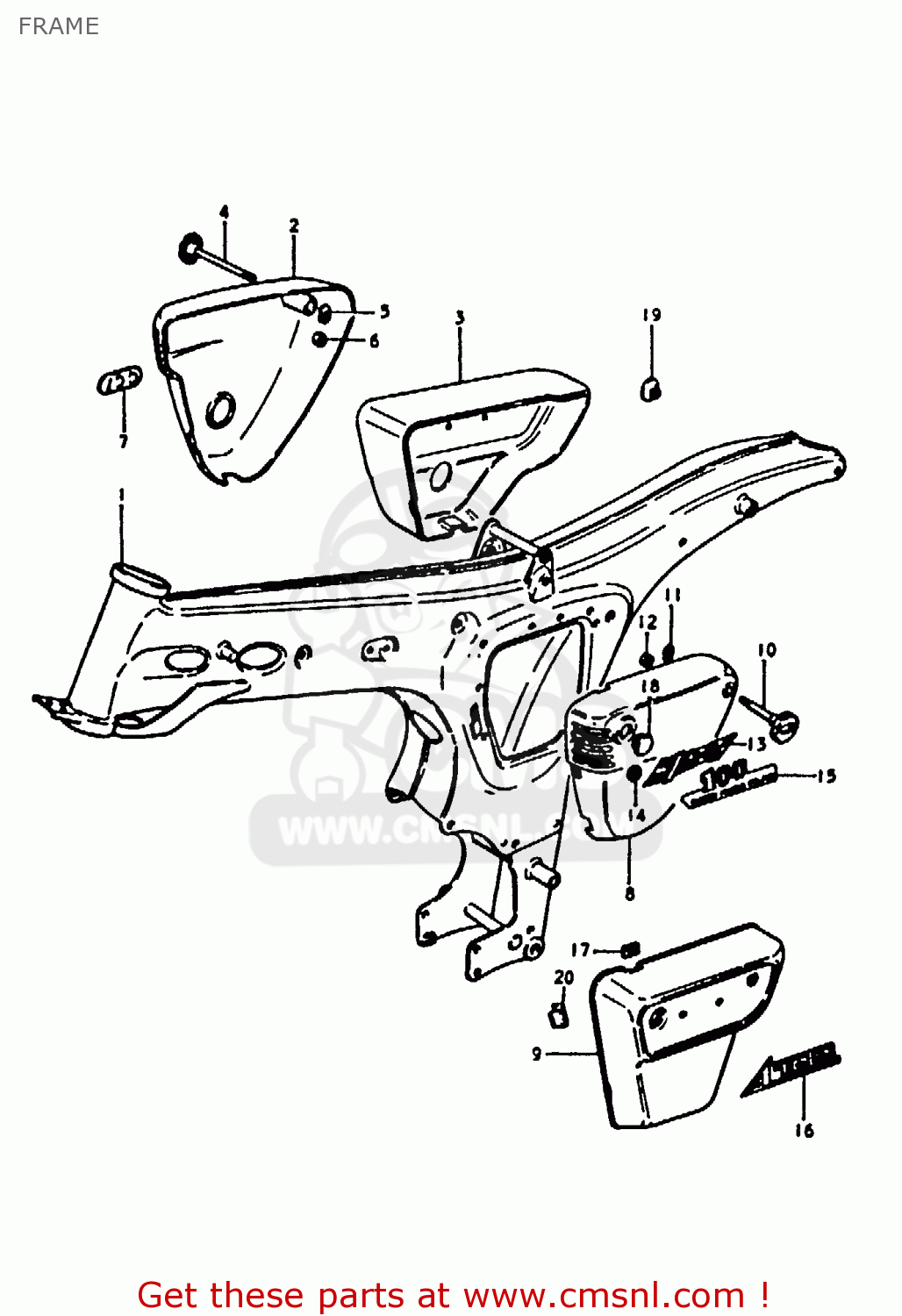

Frame diagram A100 1973 (K) UNITED KINGDOM (E02)
FRAME A100 1973 (K) UNITED KINGDOM (E02)
×
prices are in EUR
ref
part #
description
quantity
1-1
4110022500019
ref: 1-1
FRAME
€ 0.00
2-1
4711122502138
ref: 2-1
COVER, FRAME RH
€ 24.50
2-2
4711122502195
ref: 2-2
COVER, FRAME RH
€ 24.50
2-3
4711122502157
ref: 2-3
COVER, FRAME RH
€ 24.50
2-4
4711122502798
ref: 2-4
COVER, FRAME RH
€ 24.50
2-5
4711122502797
ref: 2-5
COVER, FRAME RH
€ 24.50
4-1
4713003002
ref: 4-1
WITH 08310-22068
KNOB,FRAME COVER,R
€ 5.50
5
0915206002
ref: 5
NUT
€ 2.00
7
6817126000
ref: 7
EMBLEM,CCIS
€ 4.00
8-1
4721122501138
ref: 8-1
COVER, FRAME LH
€ 62.50
8-2
4721122501195
ref: 8-2
COVER, FRAME LH
€ 62.50
8-3
4721122501157
ref: 8-3
COVER, FRAME LH
€ 62.50
8-4
4721122501798
ref: 8-4
COVER, FRAME LH
€ 62.50
8-5
4721122501797
ref: 8-5
COVER, FRAME LH
€ 62.50
10-1
4713001002
ref: 10-1
WITH 08310-22068
KNOB,FRAME COVER,L
€ 8.00
11
0915206002
ref: 11
NUT
€ 2.00
13-1
6814123301
ref: 13-1
TO 68141-23302
EMBLEM
€ 4.00
13-2
6814123302
ref: 13-2
EMBLEM
€ 4.00
14
0914803004
ref: 14
NUT
€ 2.00
19
0925008003
ref: 19
CAP
€ 2.50
