FRONT FORK (A100-4,K,L,M)

A100 1974 (L) UNITED KINGDOM (E02)

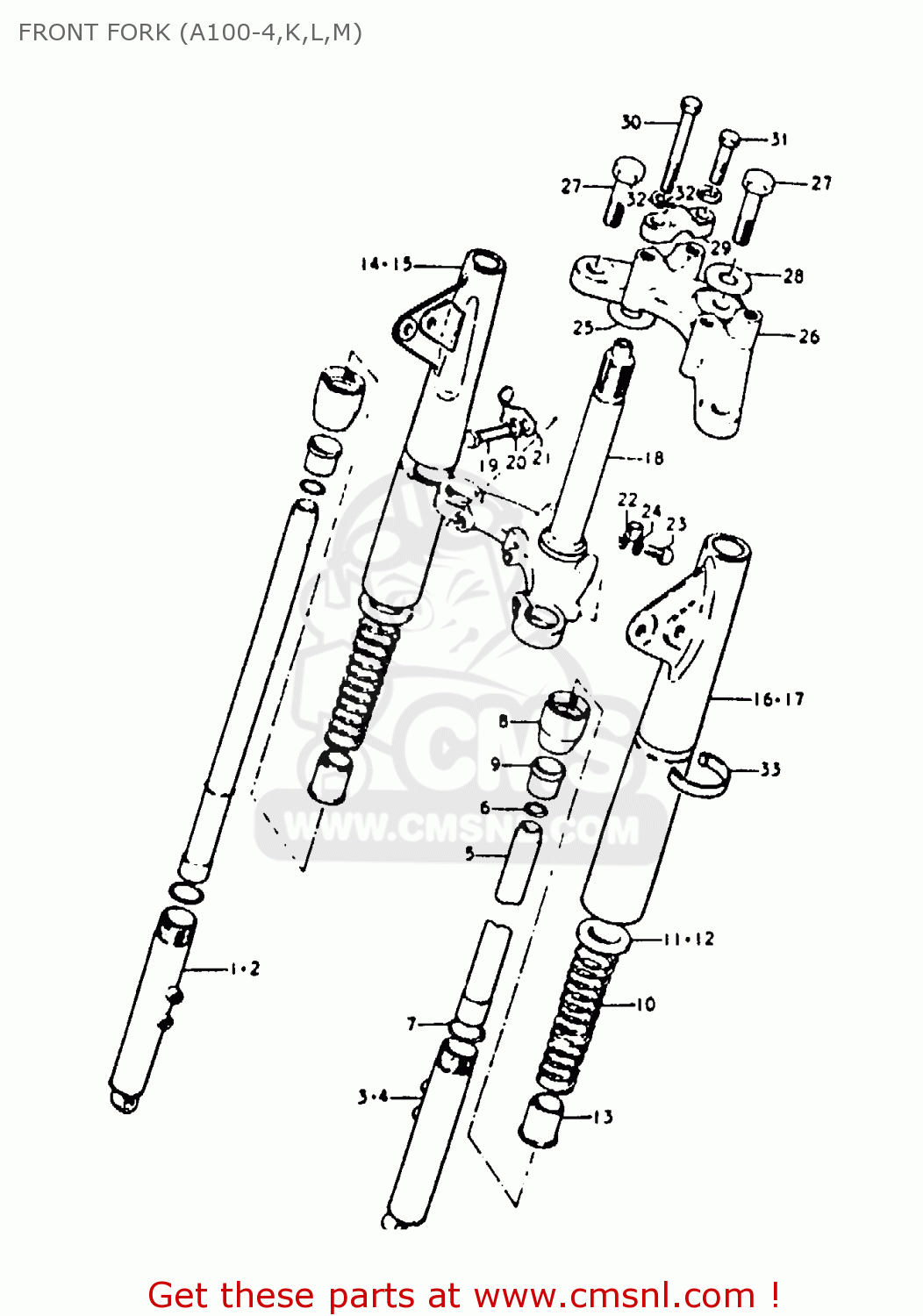

Front fork (a100-4,k,l,m) diagram A100 1974 (L) UNITED KINGDOM (E02)

FRONT FORK (A100-4,K,L,M) A100 1974 (L) UNITED KINGDOM (E02)
FRONT FORK (A100-4,K,L,M) A100 1974 (L) UNITED KINGDOM (E02)
FRONT FORK (A100-4,K,L,M) A100 1974 (L) UNITED KINGDOM (E02)
prices are in EUR
ref
part #
description
quantity
0
5110023312019
ref: 0
FRONT FORK ASSY
€ 508.00
0
5110023312797
ref: 0
FRONT FORK ASSY
€ 508.00
0
511002331200R
ref: 0
FRONT FORK ASSY
€ 508.00
0
511002331200U
ref: 0
FRONT FORK ASSY
€ 508.00
2
5113022210
ref: 2
TUBE, OUTER RH
€ 0.00
4
5114022210
ref: 4
TUBE, OUTER LH
€ 0.00
5
5111023010
ref: 5
TUBE,FORK,INNER
5111023010
€ 71.50
6
5118122011
ref: 6
O RING
5118122011
€ 3.00
7-1
5115426010
ref: 7-1
RING,VALVE STOPPER
5115426010
€ 4.00
7-2
5115412011
ref: 7-2
O RING,OIL SEAL LWR
5115412011
€ 4.00
8
5115003011
ref: 8
NUT,FORK OUTER TUBE
5115003011
€ 17.00
9
5115203011
ref: 9
GUIDE,FORK INNER TUBE
5115203011
€ 7.00
10
5117124900
ref: 10
SPRING
5117124900
€ 20.50
12
5117223010
ref: 12
OD:47.7
GUIDE,FRONT FORK SPRING C
€ 7.00
13
5117301210
ref: 13
GUIDE,FRONT FORK SPRING
5117301210
€ 8.50
15-5
5153023311019
ref: 15-5
COVER, FORK RH
€ 0.00
15-6
5153023311797
ref: 15-6
COVER, FORK RH
5153023311797
€ 105.50
15-7
515302331100R
ref: 15-7
COVER, FORK RH
515302331100R
€ 105.50
15-8
515302331100U
ref: 15-8
COVER, FORK RH
€ 105.50
17-5
5154023311019
ref: 17-5
COVER, FORK LH
€ 0.00
17-6
5154023311797
ref: 17-6
COVER, FORK LH
5154023311797
€ 105.50
17-7
515402331100R
ref: 17-7
COVER, FORK LH
515402331100R
€ 105.50
17-8
515402331100U
ref: 17-8
COVER, FORK LH
515402331100U
€ 105.50
18
5141022011
ref: 18
BEMOVE 51357-22010
STEM,STEERING
5141022011
€ 76.50
19
5145103010
ref: 19
BOLT,FORK INNER TUBE F
€ 3.00
20
0832121108
ref: 20
LOCK WASHER
0832121108
€ 2.00
21
5145208010
ref: 21
CLIP,SPEEDOMETER CABLE
5145208010
€ 3.00
22
5145303010
ref: 22
CLIP,BRAKE CABLE
5145303010
€ 5.00
23
0211206108
ref: 23
SCREW
0211206108
€ 1.50
24
0832121068
ref: 24
LOCK WASHER
0832121068
€ 2.50
25
5135722010
ref: 25
WASHER,STEERING STEM L
€ 3.50
26
5131122210
ref: 26
HEAD,STEERING STEM
5131122210
€ 94.00
27
5135120010
ref: 27
BOLT,FORK INNER TUBE
5135120010
€ 25.00
28-1
5135622011
ref: 28-1
WASHER
5135622011
€ 6.00
28-2
5135622012
ref: 28-2
WASHER,STEM HEAD(10.5X30X3.2)
5135622012
€ 4.00
29-1
5621122011
ref: 29-1
HOLDER,HANDLEBAR
5621122011
€ 6.50
29-2
5621127100
ref: 29-2
HOLDER,HANDLEBAR
5621127100
€ 12.50
30-1
5623120010
ref: 30-1
BOLT,HANDLEBAR CLAMP
5623120010
€ 34.50
30-2
0122108757
ref: 30-2
BOLT
€ 2.50
31-1
0120408307
ref: 31-1
BOLT
0120408307
€ 2.50
31-2
0120408357
ref: 31-2
BOLT
0120408357
€ 3.50
32
0832121088
ref: 32
LOCK WASHER
0832121088
€ 2.00
33
5155522010
ref: 33
COVER, SPRING
€ 8.50
