MAGNETO (A100-4,K,L,M)
A100 1974 (L) UNITED KINGDOM (E02)

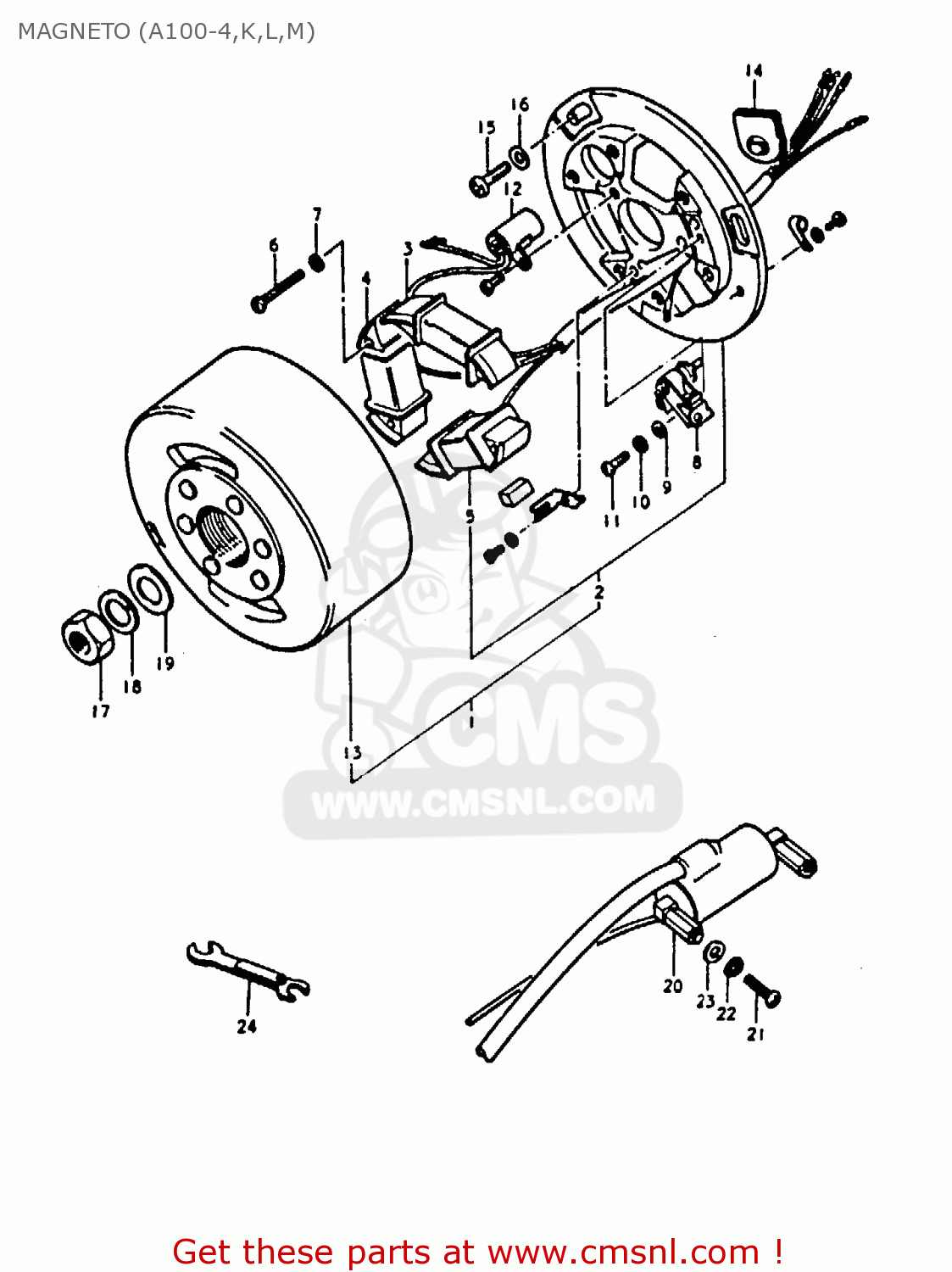

Magneto (a100-4,k,l,m) diagram A100 1974 (L) UNITED KINGDOM (E02)
MAGNETO (A100-4,K,L,M) A100 1974 (L) UNITED KINGDOM (E02)
×
prices are in EUR
ref
part #
description
quantity
1
3210024011
ref: 1
MAGNETO ASSEMBLY
€ 392.00
2
3210124010
ref: 2
STATOR ASSEMBLY
€ 392.00
3
3212012010
ref: 3
COIL,LIGHTING
€ 39.00
4
3213012010
ref: 4
COIL,LIGHTING
€ 39.00
5
3214012010
ref: 5
COIL,PRIMARY
€ 46.50
6
0211104308
ref: 6
SCREW
€ 1.50
7
0832121048
ref: 7
LOCK WASHER
€ 2.00
8
3224028010
ref: 8
POINT ASSEMBLY,CONTACT
€ 18.50
9
0832221048
ref: 9
WASHER
€ 2.00
10
0832121048
ref: 10
LOCK WASHER
€ 2.00
11
0231104108
ref: 11
.SCREW
€ 1.00
12-1
3234112010
ref: 12-1
TO 32341-12011
CONDENSER
€ 18.00
12-2
3234112011
ref: 12-2
CONDENSER
€ 18.00
13
3210224011
ref: 13
ROTOR ASSEMBLY
€ 392.00
14
0930909003
ref: 14
GROMMET
€ 4.50
15
0211206168
ref: 15
SCREW
€ 2.50
16
0832221068
ref: 16
WASHER
€ 2.00
17
0914010003
ref: 17
NUT (10MM)
€ 3.50
18
0832221108
ref: 18
WASHER
€ 2.50
19
0832121108
ref: 19
LOCK WASHER
€ 2.00
20-1
3341022220
ref: 20-1
COIL ASSEMBLY,IGNITION
€ 184.50
20-2
3341019011
ref: 20-2
COIL ASSEMBLY,IGNITION
€ 67.50
21
0211205128
ref: 21
SCREW
€ 2.50
22
0832121058
ref: 22
LOCK WASHER
€ 2.00
23
0832221058
ref: 23
WASHER
€ 2.50
