MUFFLER
A100 1974 (L) UNITED KINGDOM (E02)

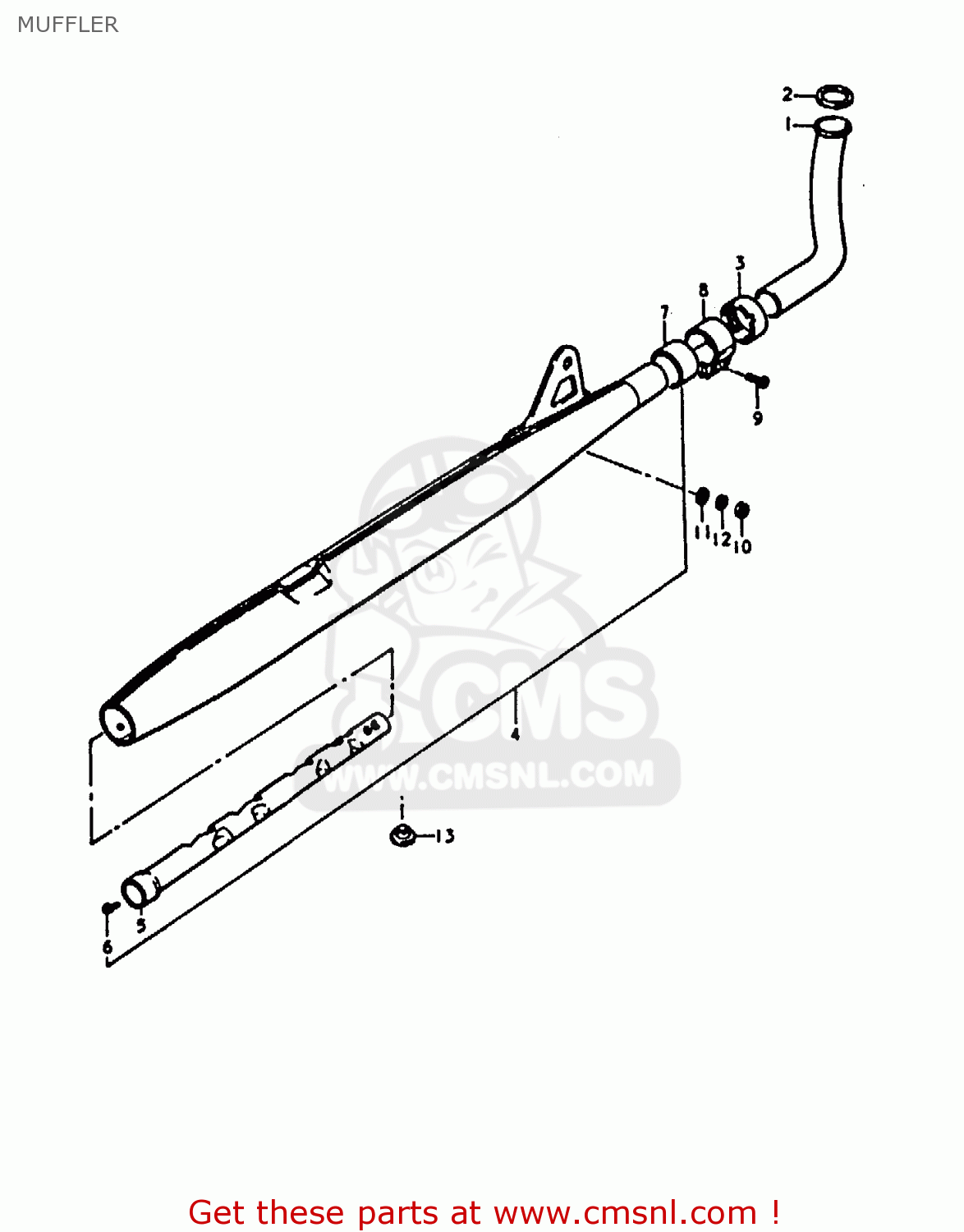

Muffler diagram A100 1974 (L) UNITED KINGDOM (E02)
MUFFLER A100 1974 (L) UNITED KINGDOM (E02)
×
prices are in EUR
ref
part #
description
quantity
1
1415112000
ref: 1
PIPE,EXHAUST
€ 83.50
2
1418112000
ref: 2
GASKET,EXHAUST PIPE
€ 8.50
3
1418212600
ref: 3
CLAMP,EXHAUST PIPE
€ 73.50
4
1430121201
ref: 4
MUFFLER ASSEMBLY
€ 277.00
5
1451012002
ref: 5
PIPE,MUFFLER BAFFLE
€ 24.00
6
0211205068
ref: 6
SCREW
€ 4.00
7
1477112011
ref: 7
CONNECTOR,MUFFLER
€ 15.50
8
0940239701
ref: 8
CLAMP
€ 11.00
9
0211206258
ref: 9
SCREW
€ 2.00
10
0831012088
ref: 10
NUT
€ 2.00
11
0832211088
ref: 11
WASHER
€ 2.00
12
0832121088
ref: 12
LOCK WASHER
€ 2.00
13
0932110001
ref: 13
CUSHION
€ 2.50
