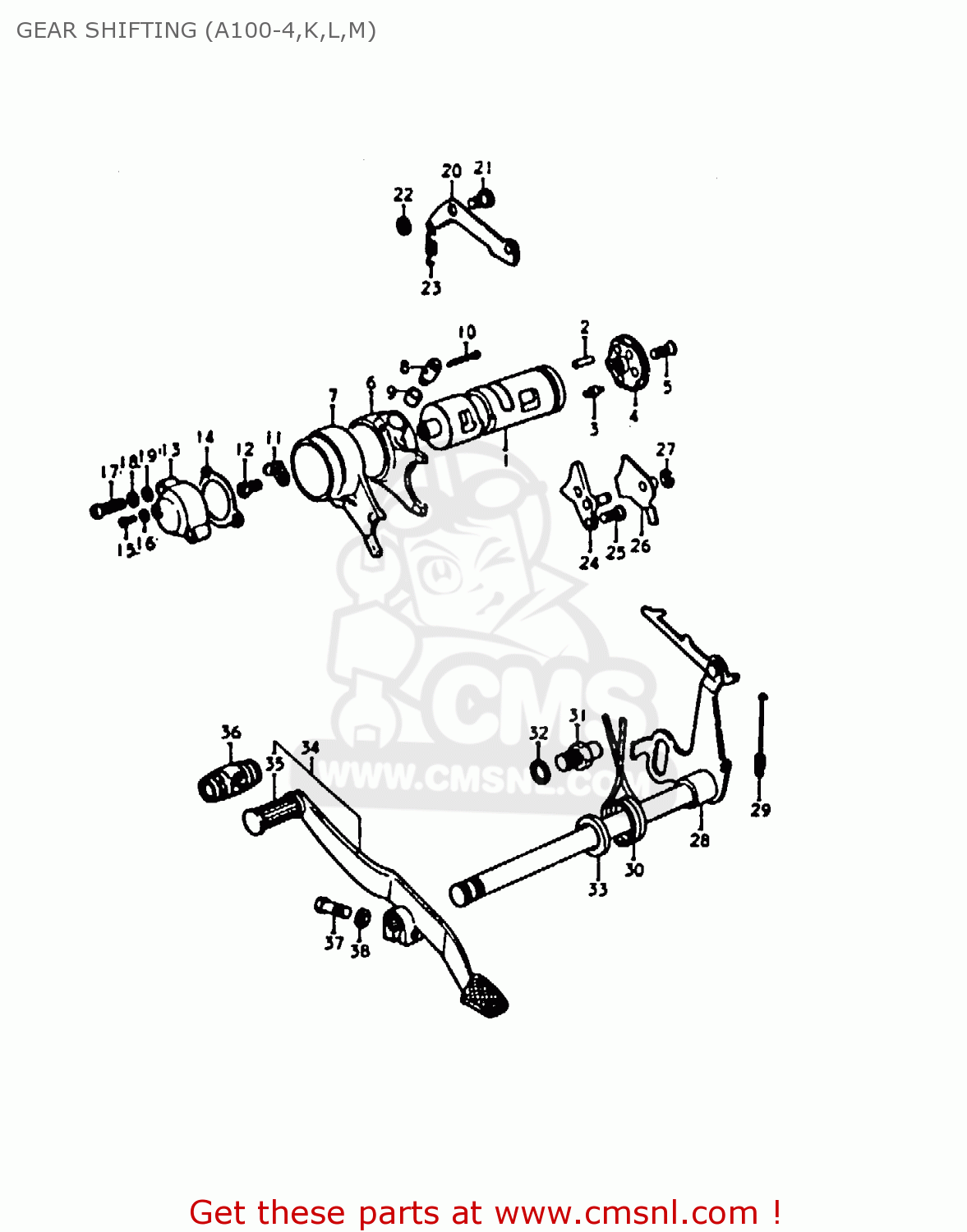

GEAR SHIFTING (A100-4,K,L,M)

ref

part #

description

quantity

1

2531112102
ref: 1

CAM,GEAR SHIFT

€ 69.50

2

0926104003
ref: 2

PIN(4X20)

€ 2.00

3

0920904012
ref: 3

PIN

€ 2.50

4

2538025030
ref: 4

PLATE,GEAR SHIFT CAM STOPPER

€ 11.50

5

0212206208
ref: 5

SCREW

€ 2.00

6-1

2521112100
ref: 6-1

FORK,GEAR SHIFT NO.1

€ 0.00

6-2

2521125101
ref: 6-2

FORK,GEAR SHIFT NO.1

€ 26.50

7

2522112100
ref: 7

FORK,GEAR SHIFT NO.2

€ 40.00

8

0920910002
ref: 8

PIN

€ 8.50

9

0918006004
ref: 9

SPACER

€ 2.50

10

0411125208
ref: 10

PIN 25X20

€ 2.00

11

3771105101
ref: 11
FROM 37711-05100

CONTACT,GEAR SHIFT SWITCH

€ 4.00

12

0212206128
ref: 12

SCREW

€ 3.00

13

3772105100
ref: 13

SWITCH,NEUTRAL INDICATOR

€ 10.50

14

3771201000
ref: 14

GASKET,GEAR SHIFT SWITCH (NAS)

€ 2.00

15

0211203048
ref: 15

SCREW

€ 2.00

16

0832221038
ref: 16

WASHER

€ 2.00

17

0211204208
ref: 17

SCREW

€ 1.00

18

0832121048
ref: 18

LOCK WASHER

€ 2.00

19

0832221048
ref: 19

WASHER

€ 2.00

20

2535012101
ref: 20

STOPPER,GEAR SHIFTING

€ 0.00

21

0911106003
ref: 21

BOLT(6X16.1)

€ 1.50

22

0916006022
ref: 22
6.5X16X2.3

WASHER(6.5X16X2.3)

€ 1.50

23

0944307003
ref: 23

SPRING

€ 1.50

24

2534012101
ref: 24

GUIDE,GEAR SHIFT CAM

€ 11.50

25

0212206168
ref: 25

SCREW

€ 2.00

26

2537012101
ref: 26

PAWL,GEAR SHIFT CAM STOPPER

€ 5.50

27

0833211058
ref: 27

E RING

€ 1.50

28

2551012100
ref: 28

SHAFT,GEAR SHIFT

€ 40.00

29

0944306008
ref: 29

SPRING

€ 2.00

30

0944426008
ref: 30

SPRING

€ 4.50

31

2567119000
ref: 31

STOPPER,GEAR SHIFT ARM

€ 5.50

32

0832121108
ref: 32

LOCK WASHER

€ 2.00

33

0928512001
ref: 33
TO 09285-12002

OIL SEAL

€ 7.00

34

2560005201
ref: 34

LEVER ASSY,GEAR SHIFT

€ 48.00

36

2565216500
ref: 36
L:39

RUBBER,GEAR SHIFT PEDAL

€ 4.00

37

0110706208
ref: 37

BOLT

€ 2.00

38

0832121068
ref: 38

LOCK WASHER

€ 2.50
