OIL PUMP
A100 1974 (L) UNITED KINGDOM (E02)

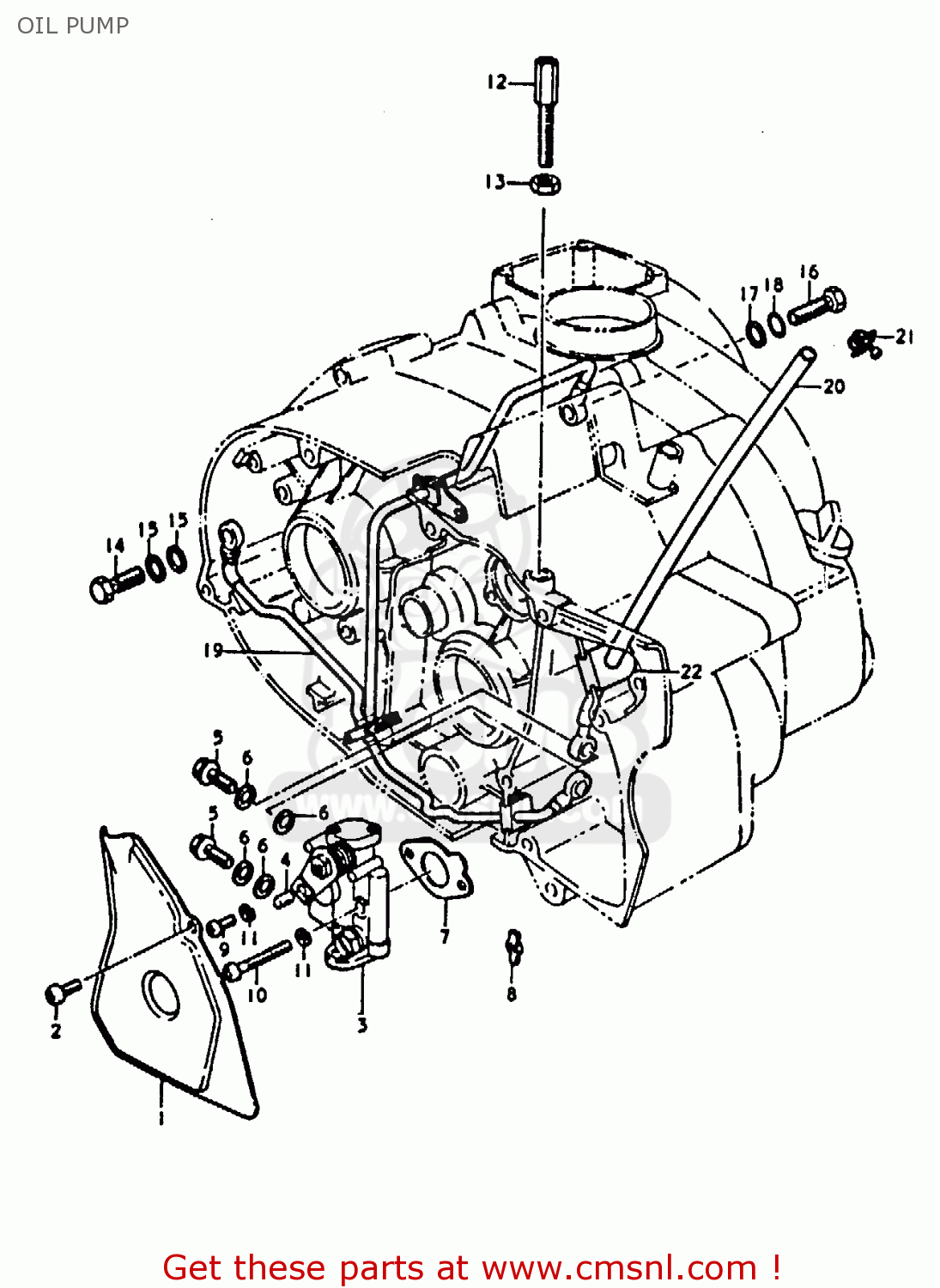

Oil pump diagram A100 1974 (L) UNITED KINGDOM (E02)
OIL PUMP A100 1974 (L) UNITED KINGDOM (E02)
×
prices are in EUR
ref
part #
description
quantity
1
1138512000
ref: 1
CAP,OIL PUMP INSPECTION
€ 0.00
2
0211206108
ref: 2
SCREW
€ 1.50
3
1610012603
ref: 3
PUMP ASSEMBLY,OIL
€ 173.00
4
1629203111
ref: 4
FROM 16292-03110
TERMINAL,CABLE
€ 3.50
5-1
0936006005
ref: 5-1
UNION
€ 3.50
6
0916806002
ref: 6
6.2X12X1.5
GASKET (NAS)
€ 1.50
7-1
1673103100
ref: 7-1
GASKET,OIL PUMP (MCA)
€ 2.50
8
1639105030
ref: 8
PIECE,OIL PUMP DRIVE
€ 2.50
9
0211205168
ref: 9
SCREW
€ 2.50
10
0211205308
ref: 10
SCREW
€ 1.50
11
0832121058
ref: 11
LOCK WASHER
€ 2.00
12
0911908014
ref: 12
BOLT
€ 3.50
13
0831012088
ref: 13
NUT
€ 2.00
14
0936006003
ref: 14
UNION BOLT
€ 5.00
15
0916806002
ref: 15
6.2X12X1.5
GASKET (NAS)
€ 1.50
16
1671011012
ref: 16
CHECK VALVE,INLET
€ 16.50
17
0916810005
ref: 17
10X16X3
GASKET(10X16X3) (NAS)
€ 6.00
18
0928008003
ref: 18
ID:7.6, D:1.3
O RING(D:1.3,ID:7.6)
€ 1.00
19
1682012033
ref: 19
FROM 16820-12032
HOSE
€ 35.00
20
1681005031
ref: 20
HOSE,OIL NO.1
€ 17.50
21
0940010301
ref: 21
CLAMP
€ 9.50
22
0930908002
ref: 22
GROMMET
€ 3.00
