2ND AIR
DL650 VSTROM 2004 (K4) USA (E03)

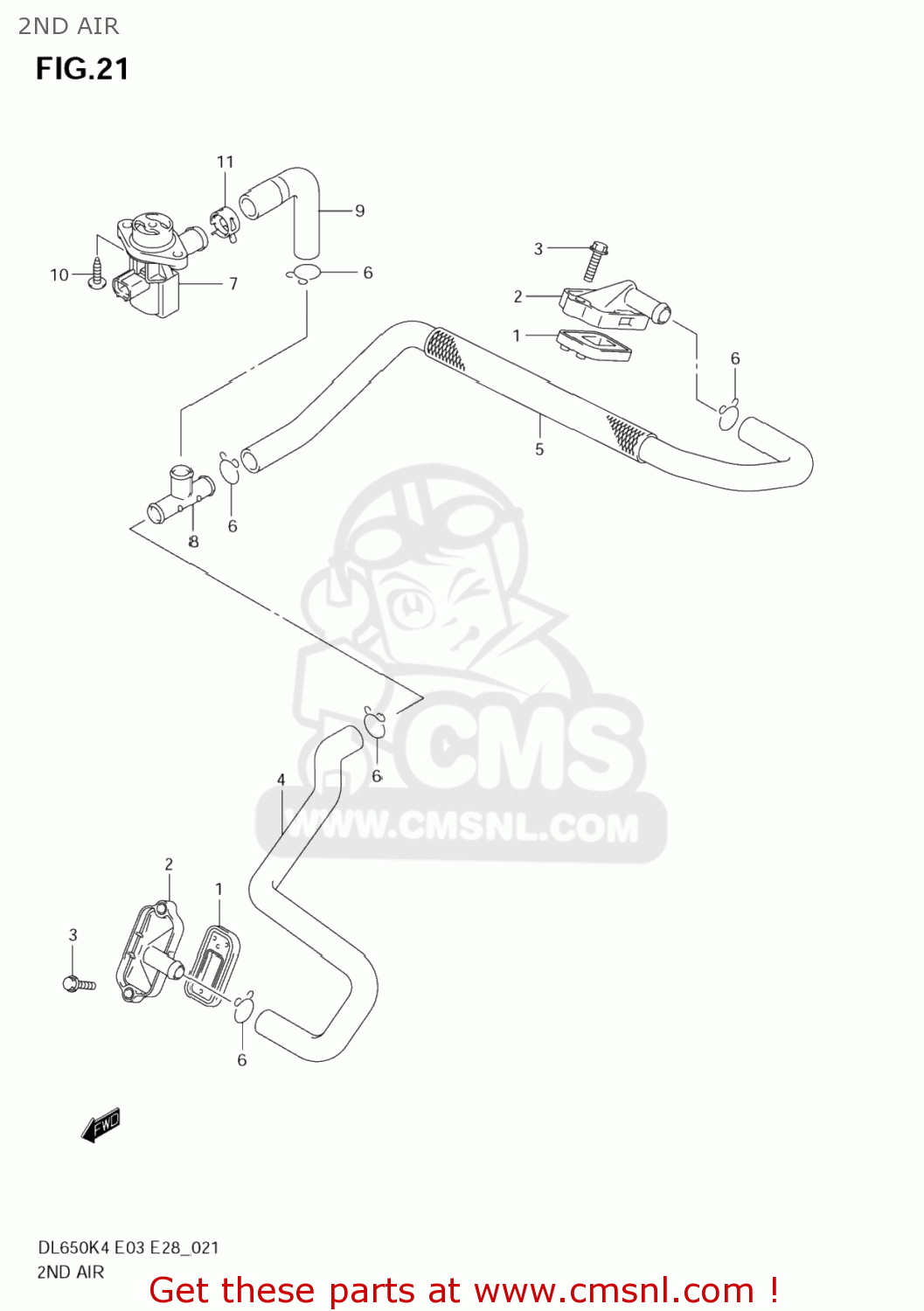

2nd air diagram DL650 VSTROM 2004 (K4) USA (E03)
2ND AIR DL650 VSTROM 2004 (K4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1845006G00
ref: 1
VALVE ASSY,2ND AIR REED
€ 22.50
2
1853106G01
ref: 2
COVER,2ND AIR
€ 9.50
3
0910306201
ref: 3
BOLT(6X20)
€ 2.00
4
1846117G00
ref: 4
HOSE,2ND AIR VALVE FR
€ 15.00
5
1847117G00
ref: 5
HOSE,2ND AIR VALVE RR
€ 25.00
6
0940115101
ref: 6
CLIP
€ 2.00
7
1851027G00
ref: 7
VALVE ASSY,AIR CUT
€ 61.00
8
1385518A03
ref: 8
JOINT
€ 4.00
9
1871127G00
ref: 9
HOSE,2ND AIR VALVE
€ 10.00
10
0354105203
ref: 10
03541-0520A
SCREW
€ 2.50
11
0940118304
ref: 11
09401-18304-A05
CLAMP
€ 2.00
