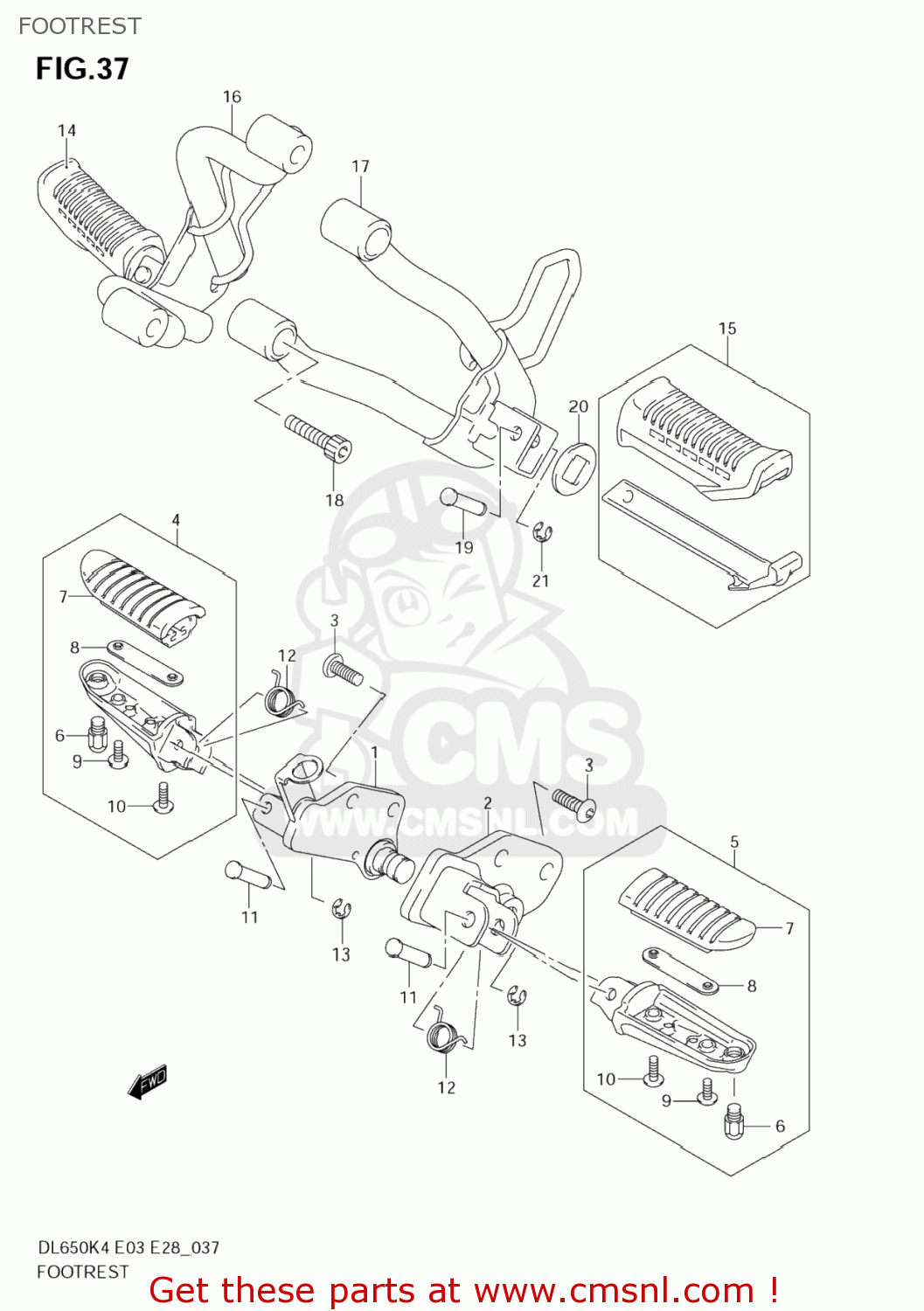

FOOTREST

ref

part #

description

quantity

1-1

4351027G00
ref: 1-1
43510-27G01-13L

BRACKET COMP,F

€ 109.00

1-2

4351027G01YAP
ref: 1-2

BRACKET,FR FOO

€ 57.00

2-1

4352027G00
ref: 2-1

BRACKET,FR FOO

€ 55.00

2-2

4352027G01YAP
ref: 2-2

BRACKET,FR FOO

€ 28.50

3

0910608150
ref: 3

BOLT(8X23)

€ 3.50

4

4350106G01
ref: 4

FOOTREST ASSY,PILLION,R

€ 49.00

5

4350206G01
ref: 5

FOOTREST ASSY,PILLION,L

€ 79.50

6

4357607D01
ref: 6

BOLT,BANK SENSOR

€ 8.00

7

4355106G00
ref: 7

RUBBER,FOOTREST

€ 7.50

8

4355206G00
ref: 8

PLATE,FR FOOTREST RUBBER

€ 6.50

9

0214205163
ref: 9
02142-0516A

SCREW

€ 2.50

10

0214205203
ref: 10
02142-0520B

SCREW 5X20

€ 2.00

11

0920808010
ref: 11

PIN(8X33.2)

€ 3.00

12

0944818022
ref: 12

SPRING

€ 3.50

13

0833211063
ref: 13
08332-1106A

E.RING

€ 2.00

14

4360012B00
ref: 14

FOOTREST ASSY,PILLION,R

€ 20.00

15

4370012B00
ref: 15

FOOTREST ASSY,PILLION,L

€ 22.00

16-1

4381027G00
ref: 16-1
43810-27G01-019

BRACKET,PILLIO

€ 240.50

16-2

4381027G01YAP
ref: 16-2
43810-27G01-019

BRACKET

€ 240.50

16-3

4381027G01019
ref: 16-3

BRACKET,PILLION FOOTREST,R(BLA

€ 240.50

17-1

4382027G00
ref: 17-1
43820-27G01-019

BRACKET,PILLIO

€ 90.50

17-2

4382027G01YAP
ref: 17-2

BRACKET,PILLION FOOTREST,L(BLA

€ 90.50

17-3

4382027G01019
ref: 17-3

BRACKET,PILLION FOOTREST,L(BLA

€ 90.50

18

0910608074
ref: 18

BOLT(8X40)

€ 3.50

19

0920806005
ref: 19

PIN

€ 3.00

20

4363134A01
ref: 20

WASHER,FOOTREST RUBBER

€ 6.50

21

0833211043
ref: 21
08332-1104A

E-RING

€ 2.00
