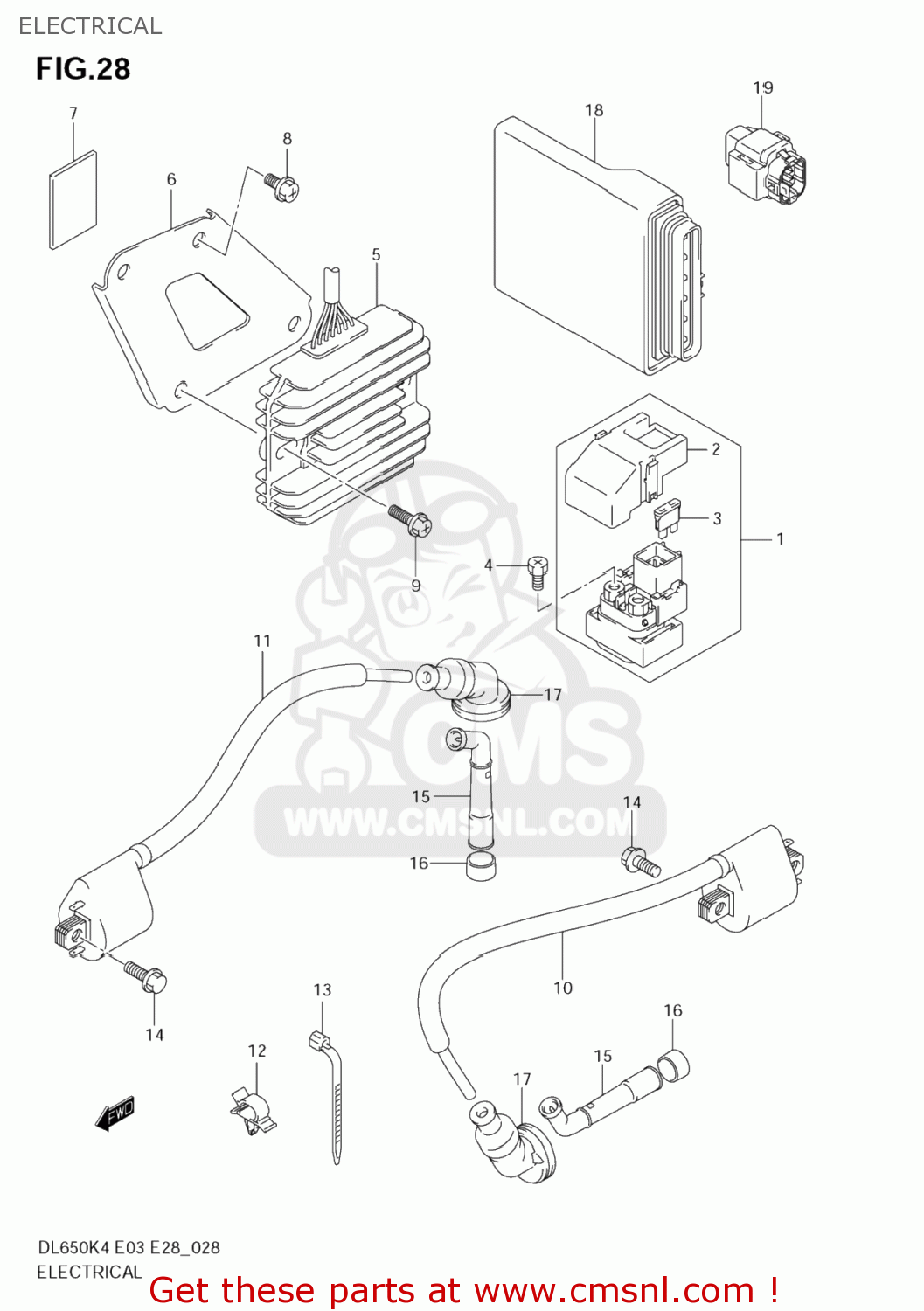

ELECTRICAL

ref

part #

description

quantity

1

3180006G00
ref: 1

RELAY ASSY,STARTING MOTOR

€ 78.50

2

3186147E00
ref: 2

COVER

€ 10.50

3

0948130101
ref: 3

FUSE(30A)

€ 6.00

4

0912806013
ref: 4

SCREW(6X8)

€ 1.50

5

3280016G00
ref: 5
32800-16G01

RECTIFIER ASSY

€ 301.00

6

3283127G00
ref: 6

BRACKET,RECT FTG

€ 6.50

7

3365137000
ref: 7

PROTECTOR(170X95X3.0)

€ 5.00

7

3365137000
ref: 7

PROTECTOR(170X95X3.0)

€ 5.00

8

0216206103
ref: 8

BOLT

€ 2.00

9

0216206203
ref: 9
02162-0620C

BOLT

€ 2.00

10

3341017G00
ref: 10

COIL ASSY,IGNITION

€ 86.50

11

3342017G00
ref: 11

COIL ASSY,IGNITION

€ 116.00

12

0940310319
ref: 12

CLAMP

€ 2.50

13

0940718402
ref: 13

CLAMP(L:165)

€ 2.50

14

0154706203
ref: 14
01547-0620B

SCREW

€ 2.50

15

3351017G00
ref: 15

CAP ASSY,SPARK PLUG

€ 28.50

16

3354123E01
ref: 16

SEAL,SPARK PLUG CAP

€ 7.00

17

3354217G00
ref: 17
33542-17G01

SEAL,HIGH TENS

€ 5.50

18-1

3292027G20
ref: 18-1

CONTROL UNIT,FI

€ 0.00

18-2

3292027G40
ref: 18-2

CONTROL UNIT,FI

€ 0.00

18-3

3292027G40
ref: 18-3

CONTROL UNIT,FI

€ 0.00

19

3396027G00
ref: 19

SENSOR ASSY,FUEL CUT

€ 72.00

all assemblies
