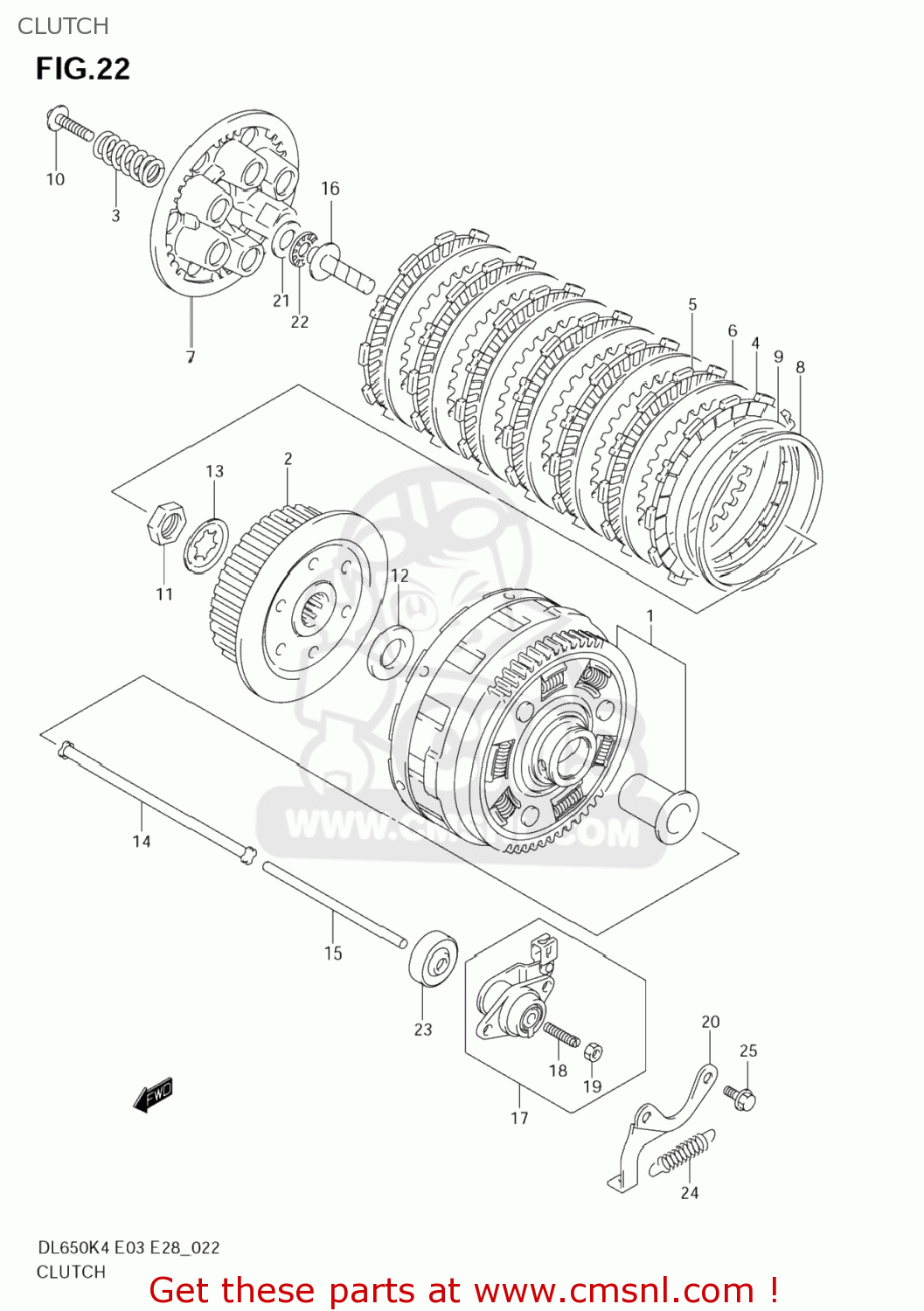

CLUTCH

ref

part #

description

quantity

1

2120017860
ref: 1

GEAR ASSY,PRI DRIVEN

€ 371.00

2

2141144101
ref: 2

HUB,CLUTCH SLEEVE

€ 56.50

3

2141317G01
ref: 3

SPRING,CLUTCH

€ 7.00

4

2144229F00
ref: 4

PLATE,CLUTCH DRIVE NO.2 (NAS)

€ 13.50

5

2144129F20
ref: 5

PLATE,CLUTCH DRIVE (NAS)

€ 20.50

6

2145128C31
ref: 6

PLATE,CLUTCH DRIVEN(T:1.6) (NAS)

€ 10.50

7

2146214301
ref: 7

DISC,CLUTCH PRESSURE

€ 51.00

8

2147117G00
ref: 8

SEAT,WAVE WASHER

€ 8.50

9

2147217G00
ref: 9

WASHER,CLUTCH PLATE WAVE

€ 15.00

10-1

0911606185
ref: 10-1

BOLT(6X30)

€ 2.50

10-2

0911606203
ref: 10-2

BOLT(6X30)

€ 2.50

11

0914020001
ref: 11

NUT

€ 3.50

12

0916020067
ref: 12

WASHER(20X36X3)

€ 6.50

13

0916720006
ref: 13
09167-20009

WASHER,LOCK

€ 3.00

14

2311044111
ref: 14

ROD,PUSH,R

€ 13.00

15

2311124A01
ref: 15

ROD,CLUTCH PUSH,L

€ 15.00

16

2312144100
ref: 16

PIECE,CLUTCH PUSH

€ 21.50

17

2320011D00
ref: 17

SCREW ASSY,CLUTCH RELEASE

€ 64.50

18

0913406010
ref: 18

SCREW(6X25)

€ 3.00

19

0831000067
ref: 19

NUT

€ 2.50

20

2322619F01
ref: 20

SUPPORT,CL RLSE RETURN SPRING

€ 6.50

21

0916015045
ref: 21

WASHER(15.5X28X1)

€ 4.00

22

0926315003
ref: 22

BEARING(15X28X2)

€ 7.00

23

0928506015
ref: 23

SEAL,OIL(6X34X5.5)

€ 8.50

24

0944308001
ref: 24

SPRING

€ 3.00

25

0150006163
ref: 25
01500-0616A

BOLT

€ 2.00
