EVAPO SYSTEM (E33)

DL650 VSTROM 2004 (K4) USA (E03)

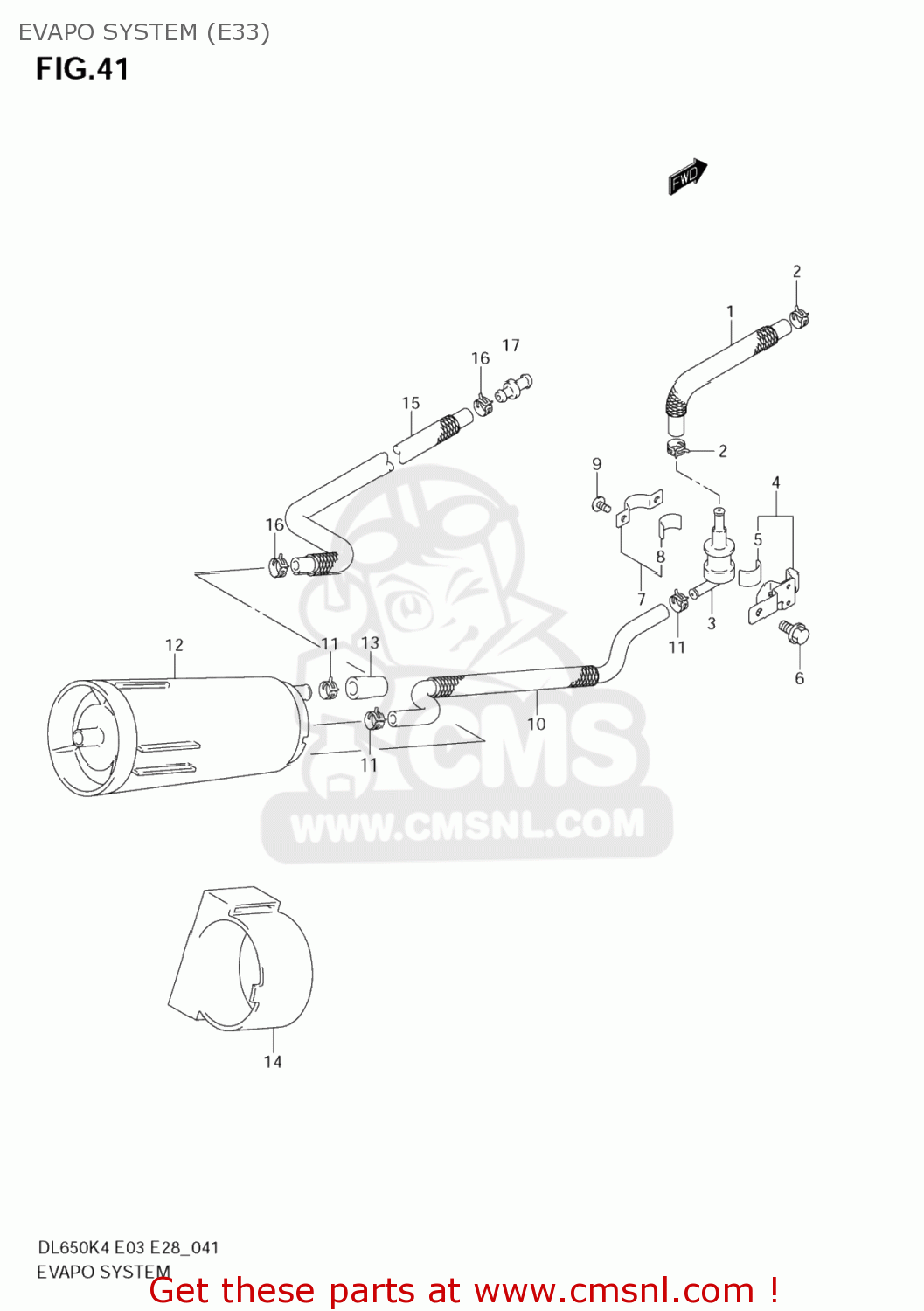

Evapo system (e33) diagram DL650 VSTROM 2004 (K4) USA (E03)

prices are in EUR

ref

part #

description

quantity

4443406G00
ref: 1

HOSE,TANK & BREATHER VALVE

€ 0.00

0940111413
ref: 2

CLIP

€ 2.50

4424017C00
ref: 3

VALVE,FUEL TANK BREATHER

€ 40.00

4489006G00
ref: 4

PLATE,BREATHER VALVE

€ 0.00

4489424A00
ref: 5

CUSHION

€ 1.50

0155006123
ref: 6
01550-0612A

BOLT

€ 2.50

4489224A00
ref: 7

PLATE,FUEL TANK BREATHER NO.2

€ 3.00

4489424A00
ref: 8

CUSHION

€ 1.50

0214204083
ref: 9
02142-0408B

SCREW

€ 1.50

4443527G00
ref: 10

HOSE, VALVE & CANISTER

€ 0.00

0940111413
ref: 11

CLIP

€ 2.50

1721026E00
ref: 12

CANISTER ASSY,CHARCOAL

€ 261.50

0925107003
ref: 13

CAP,OD:11.5

€ 2.00

4488306G00
ref: 14

CUSHION,CANISTER

€ 8.00

4443627G00
ref: 15
44436-06G00

HOSE,CSTR PURGE

€ 47.50

0940112404
ref: 16

CLIP

€ 2.50

0936706009
ref: 17

JOINT

€ 2.50
