CRANKCASE COVER
DR100 1986 (G) USA (E03)

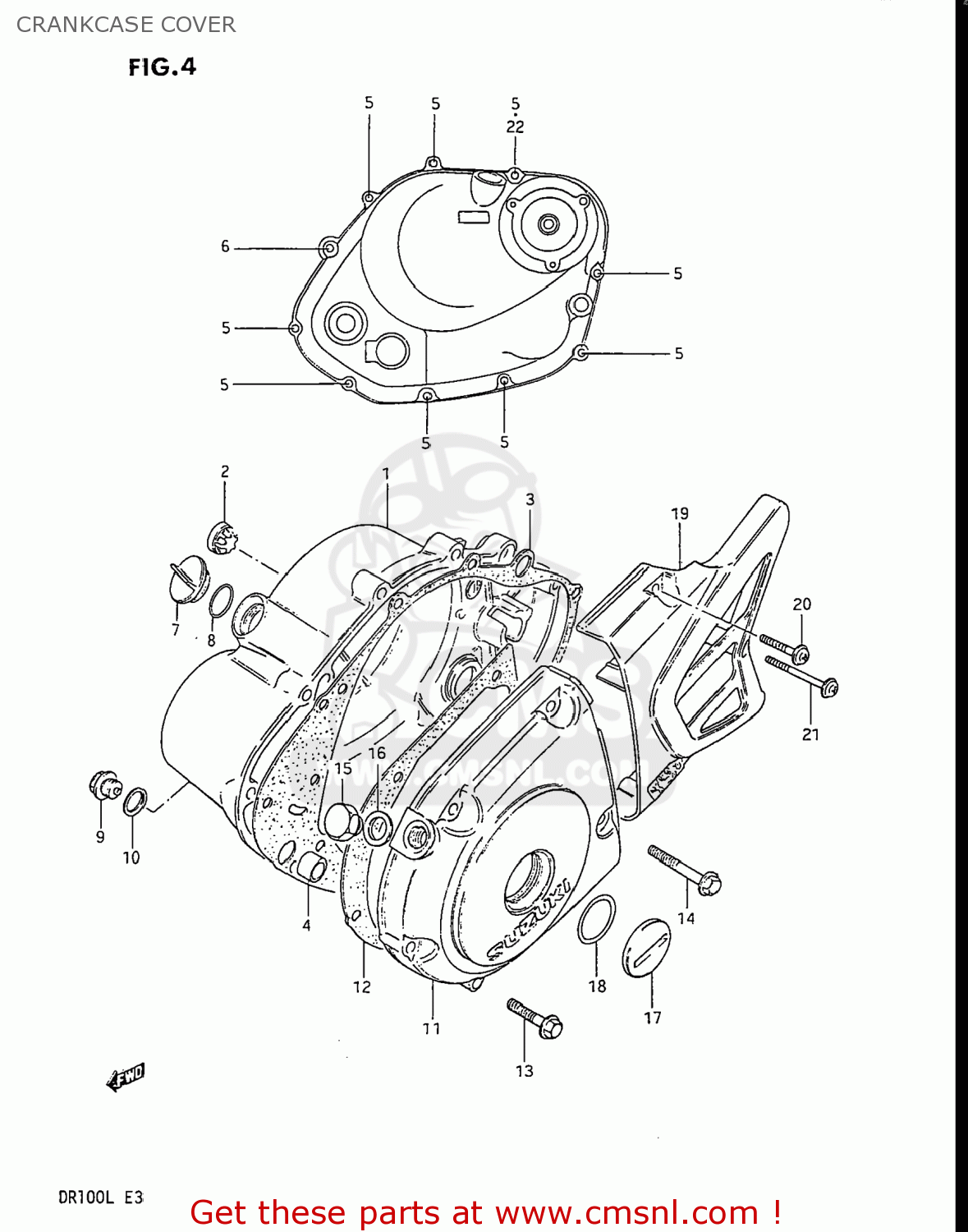

Crankcase cover diagram DR100 1986 (G) USA (E03)
CRANKCASE COVER DR100 1986 (G) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1134005250
ref: 1-1
11340-05280
COVER,CLUTCH
€ 87.00
1-2
1134005260
ref: 1-2
COVER,CLUTCH
€ 135.50
1-3
1134005270
ref: 1-3
11340-05280
COVER,CLUTCH
€ 87.00
2
1197145010
ref: 2
LENS,OIL LEVEL CHECK
€ 13.00
3
1148205201
ref: 3
11482-05211
GASKET,CLUTCH COVER (MCA)
€ 13.00
4
0920613001
ref: 4
04211-13189
PIN
€ 2.50
5
0154706304
ref: 5
01547-06307
BOLT 6X30
€ 2.50
6
0154706454
ref: 6
01547-0645B
BOLT
€ 3.00
7-1
0925920008
ref: 7-1
09259-20008-XC0
PLUG
€ 6.50
7-2
0925920013
ref: 7-2
09259-20019
PLUG
€ 9.50
7-3
0925920016
ref: 7-3
09259-20019
PLUG
€ 9.50
8
0928017003
ref: 8
O RING(D:3.1,ID:16.8)
€ 2.00
9
0924714015
ref: 9
PLUG(14X12)
€ 2.50
10
0916814004
ref: 10
GASKET(14X19.2X2) (NAS)
€ 2.50
11-1
1135105250
ref: 11-1
COVER,MAGNETO
€ 90.00
11-2
1135105260
ref: 11-2
COVER,MAGNETO
€ 93.50
11-3
1135105270
ref: 11-3
11351-05201
COVER,MAGNETO
€ 87.00
12
1148305200
ref: 12
11483-05210
GASKET,MAGNETO COVER (MCA)
€ 7.50
13
0154706304
ref: 13
01547-06307
BOLT 6X30
€ 2.50
14
0154706404
ref: 14
01547-0640B
BOLT 6X40
€ 3.00
15
0924712103
ref: 15
PLUG(12X9)
€ 3.50
16
0916812002
ref: 16
GASKET(12.1X16.2X3.7) (NAS)
€ 2.00
17-1
0925926005
ref: 17-1
PLUG
€ 6.00
17-2
0925926002
ref: 17-2
09259-26002-XC0
PLUG
€ 17.00
17-3
0925926008
ref: 17-3
PLUG,CRANKSHAFT HOLE
€ 0.00
18
0928022008
ref: 18
O RING(D:3.1,ID:22.7)
€ 2.50
19-1
1136105250
ref: 19-1
11361-05201
COVER,SPROCKET
€ 14.50
19-2
1136105260
ref: 19-2
COVER,ENGINE SPROCKET
€ 26.50
19-3
1136105270
ref: 19-3
11361-05260
COVER,SPROCKET
€ 26.50
20
0215205255
ref: 20
02112-0525A
SCREW
€ 1.50
21
0215205455
ref: 21
02112-0545B
SCREW
€ 3.00
22
0916806023
ref: 22
GASKET(5.8X13X1.2) (NAS)
€ 2.00
