DR100 1986 (G) USA (E03)

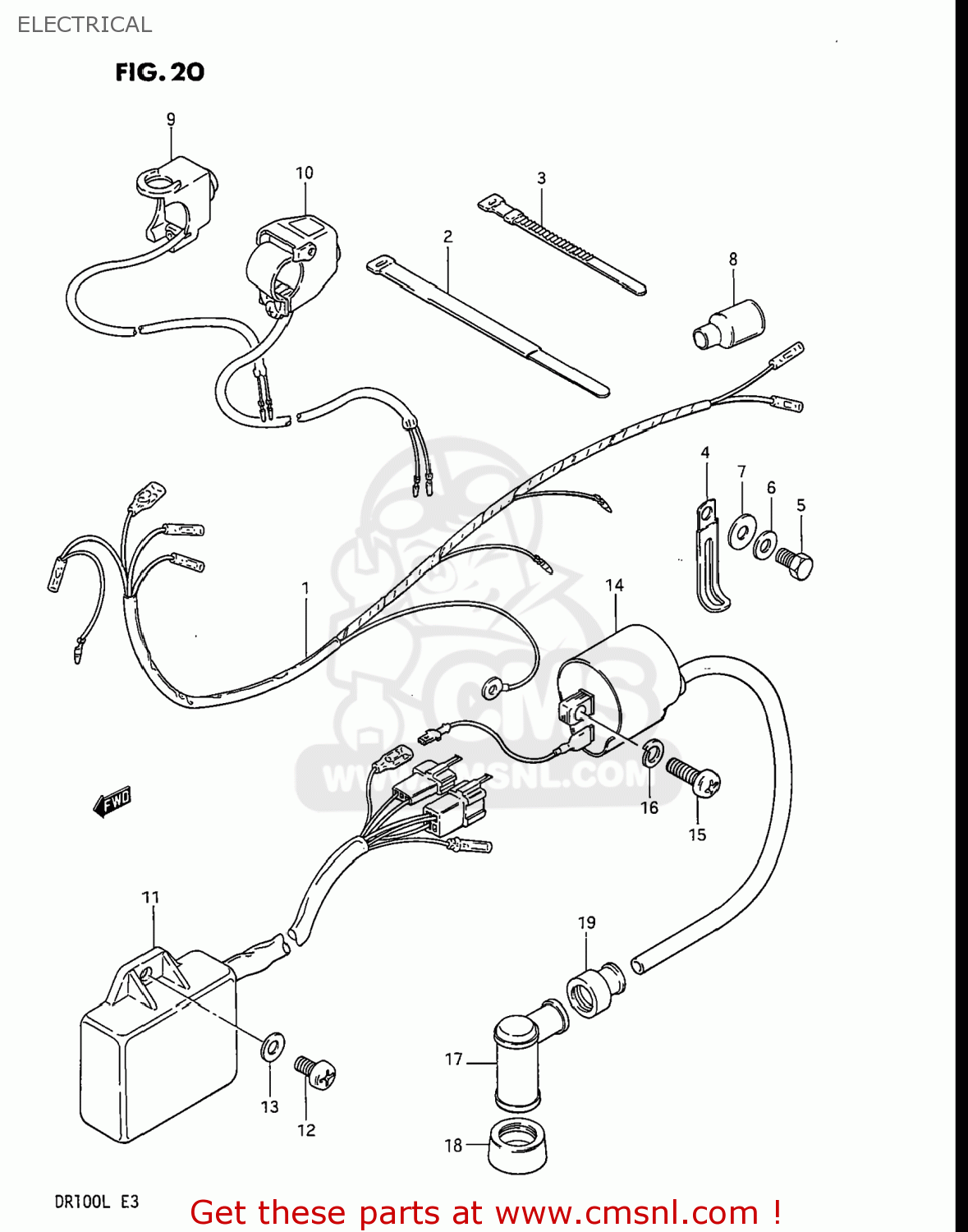

Electrical diagram DR100 1986 (G) USA (E03)
ELECTRICAL DR100 1986 (G) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3661005280
ref: 1
36610-29502
HARNESS,WIRING
€ 31.00
2-1
0940711301
ref: 2-1
09407-18301
CLAMP L:110
€ 6.00
2-2
0940718301
ref: 2-2
CLAMP
€ 6.00
2-3
0940714301
ref: 2-3
09407-18301
CLAMP
€ 6.00
3
0940712402
ref: 3
CLAMP(L:120)
€ 3.00
4-1
0940408404
ref: 4-1
09404-08420
CLAMP
€ 3.00
4-2
0940406404
ref: 4-2
09404-06433
CLAMP
€ 3.00
4-3
0940406401
ref: 4-3
09404-06432
CLAMP L:35
€ 2.50
5
0110706165
ref: 5
01500-0616A
BOLT 6X16
€ 2.00
6
0832221064
ref: 6
08322-0106B
WASHER
€ 2.00
7
0916006006
ref: 7
09160-06084
WASHER
€ 2.00
8
3661834000
ref: 8
BOOT,WIRING HARNESS
€ 3.00
9
3783038200
ref: 9
SWITCH ASSY,ENGINE STOP
€ 72.00
10
3783013A00
ref: 10
SWITCH ASSY,ENGINE STOP
€ 43.00
11
3290005210
ref: 11
CDI UNIT
€ 355.00
12
0211206164
ref: 12
02112-0616A
SCREW
€ 2.00
13
0832221064
ref: 13
08322-0106B
WASHER
€ 2.00
14
3341005211
ref: 14
33410-01X50
COIL ASSEMBLY,IGNITION
€ 90.00
15
0211206208
ref: 15
02112-06207
SCREW
€ 2.00
16
0832121067
ref: 16
08321-01067
WASHER,LOCK
€ 2.50
17
3351022010
ref: 17
33510-97313
CAP ASSY,SPARK PLUG
€ 16.50
18
3354124510
ref: 18
33541-47D00
SEAL,SPARK PLUG CAP
€ 7.00
19
3354298000
ref: 19
33542-38B00
SEAL,SPARK PLU
€ 4.50
