FRONT WHEEL
DR100 1986 (G) USA (E03)

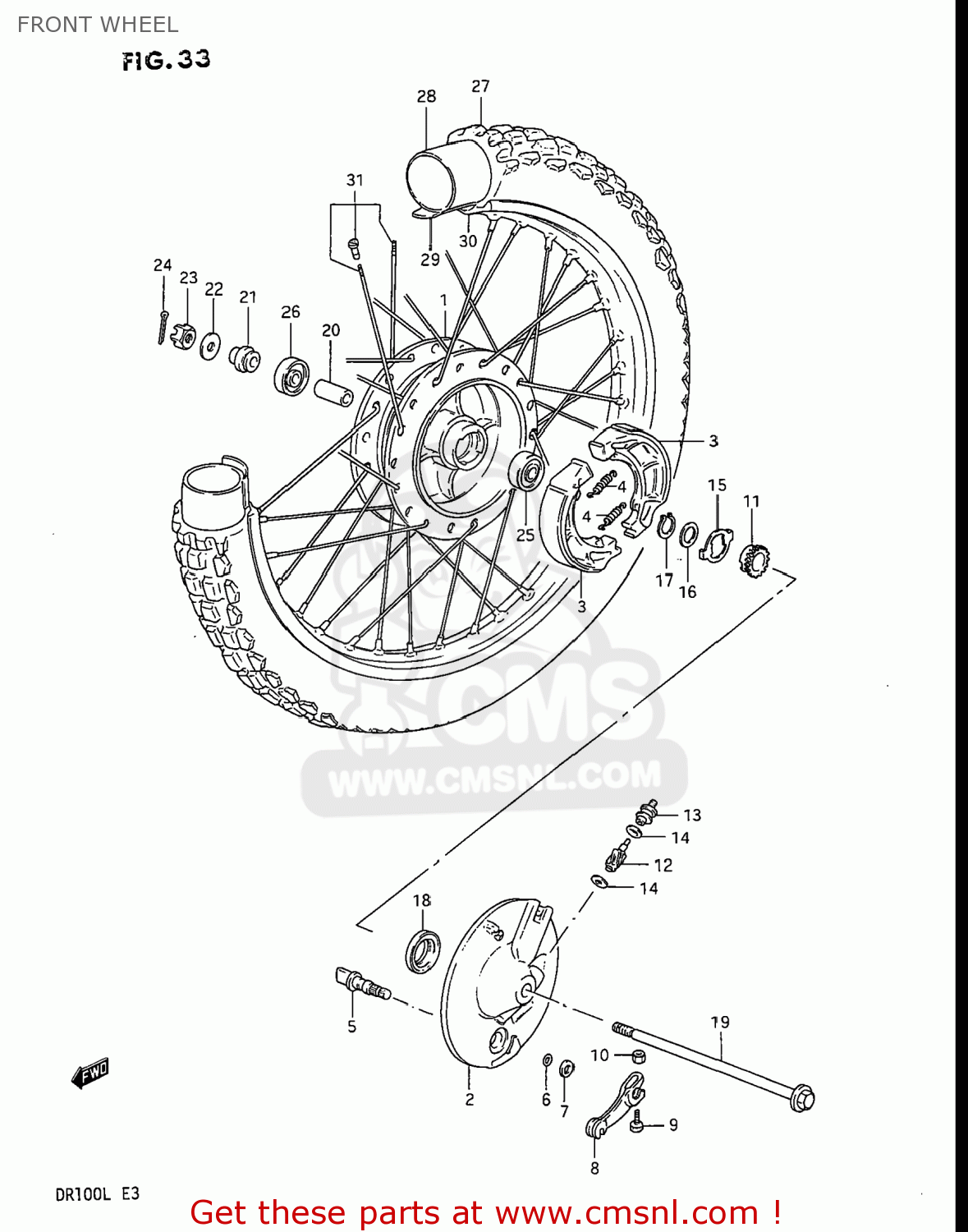

Front wheel diagram DR100 1986 (G) USA (E03)
FRONT WHEEL DR100 1986 (G) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
5411005200
ref: 1-1
DRUM,FRONT HUB
€ 93.00
1-2
5411005220
ref: 1-2
54110-05200
HUB,FRONT
€ 93.00
2-1
5421005200
ref: 2-1
PANEL,FRONT HUB
€ 54.00
2-2
5421005220
ref: 2-2
54210-05200
PANEL,FRONT BRAKE ANCHOR
€ 54.00
3-1
5441043010
ref: 3-1
54400-43880
SHOE,BRAKE
€ 19.00
3-2
5441043011
ref: 3-2
54400-43880
SHOE,BRAKE
€ 19.00
3-3
5441043030
ref: 3-3
54400-43880
SHOE,BRAKE
€ 19.00
4
0944307001
ref: 4
09443-07025
SPRING(L:34)
€ 2.50
5
5444105200
ref: 5
54441-26503
CAM,FRONT BRAKE
€ 12.00
6
0928014003
ref: 6
09280-14011
O-RING (D:2.4 ID:13.8)
€ 3.50
7
0916014001
ref: 7
09160-14055
WASHER (14.5X22X1.6)
€ 2.50
8
5445126500
ref: 8
LEVER,FR BRAKE CAM
€ 7.00
9
0151706358
ref: 9
01550-06357
BOLT 6X35
€ 2.50
10
0915906017
ref: 10
08319-31067
NUT
€ 2.50
11
5461127102
ref: 11
GEAR,SPEEDOMETER
€ 16.00
12
5462139202
ref: 12
PINION,SPEEDOMETER(NT:9)
€ 33.50
13
5463202201
ref: 13
BUSH,SPEEDOMETER PINION OUTER
€ 6.50
14
0916005001
ref: 14
09160-05001-A05
WASHER (5.1X9X0.4)
€ 2.00
15
5466107000
ref: 15
DRIVER,SPEEDOMETER GEAR
€ 3.00
16
0916018002
ref: 16
WASHER(18.5X24X1)
€ 2.00
17
0833111189
ref: 17
CIRCLIP
€ 2.00
18
0928543001
ref: 18
09283-43004
OIL SEAL (43X58X7)
€ 10.00
19
5471105200
ref: 19
AXLE,FRONT
€ 19.00
20
0918012041
ref: 20
09180-12144
SPACER (12.6X19X52)
€ 4.50
21
5474005200
ref: 21
SPACER,FRONT AXLE,RIGHT
€ 11.00
22
0832211128
ref: 22
08322-01127
WASHER
€ 2.00
23
0831431128
ref: 23
08314-3112A
NUT 12MM
€ 2.00
24
0411130308
ref: 24
04111-3030A
COTTER PIN
€ 1.50
25
0814362017
ref: 25
BEARING
€ 11.50
26
0813362017
ref: 26
BEARING (12X32X10)
€ 15.00
27
5510020520
ref: 27
55100-205V0
TIRE 2.75-17
€ 56.50
28
5520020330
ref: 28
55200-08G00
TUBE,INNER
€ 21.00
29
5526120330
ref: 29
55261-02B40
PROTECTOR,WHEEL,INNER
€ 3.50
30-1
5531105280
ref: 30-1
RIM,FR WHEEL(1.40X17)(GOLD)
€ 45.50
30-2
5531105290
ref: 30-2
55311-05280
RIM,FRONT WHEEL
€ 45.50
31
5532005240
ref: 31
SPOKE SET,FRONT
€ 48.50
