MUFFLER
DR100 1986 (G) USA (E03)

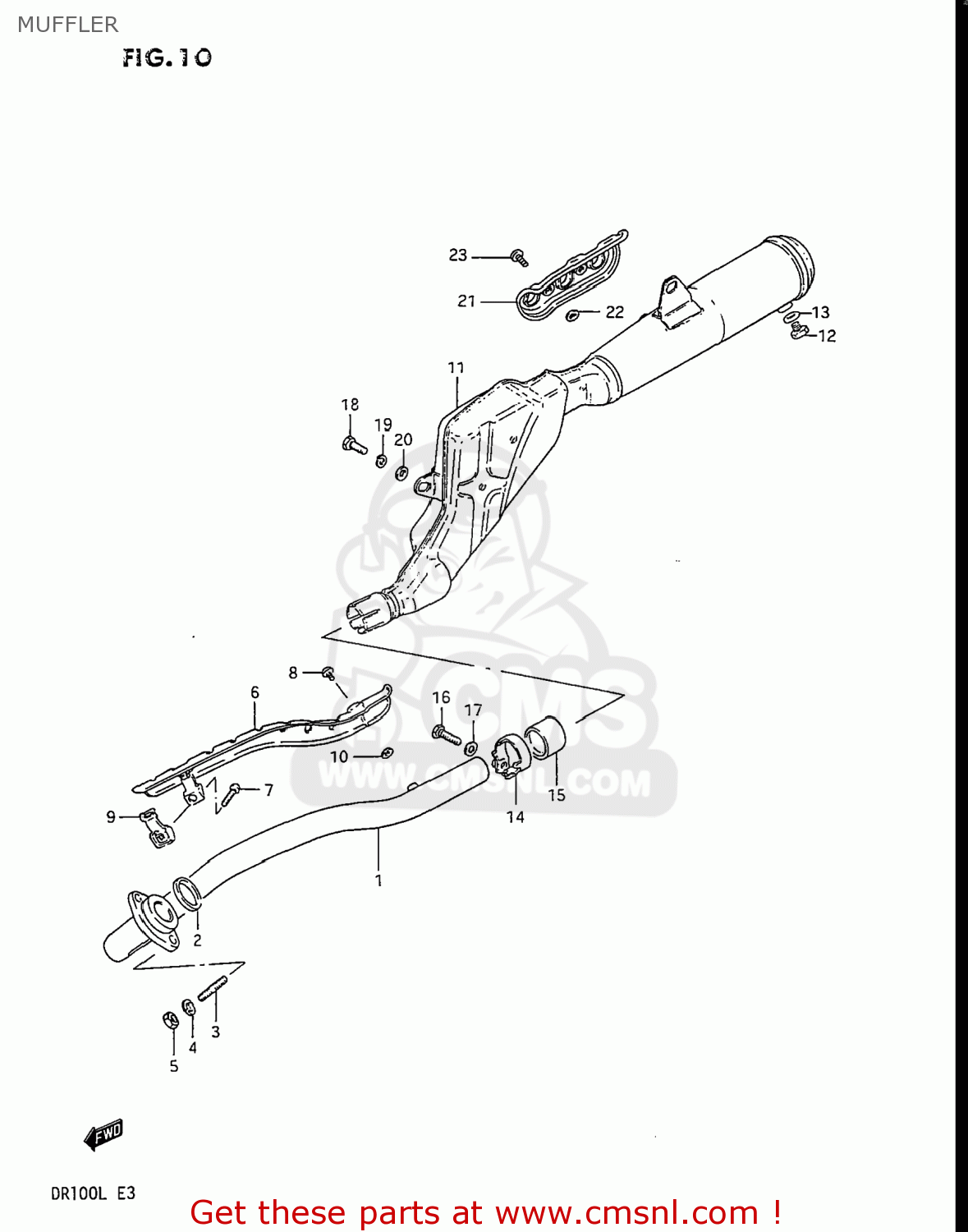

Muffler diagram DR100 1986 (G) USA (E03)
MUFFLER DR100 1986 (G) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1415005210
ref: 1
PIPE,EXHAUST
€ 42.00
2
1418105020
ref: 2
14181-18C00
GASKET,EXHAUST PIPE (NAS)
€ 6.50
3
0142106205
ref: 3
01421-0620A
STUD BOLT L:20
€ 2.50
4
0832121064
ref: 4
08321-0106A
WASHER,LOCK
€ 2.00
5
0831011065
ref: 5
08310-0006A
NUT
€ 2.00
6
1418005210
ref: 6
COVER,EXHAUST PIPE
€ 21.00
7
0211205205
ref: 7
02112-0520B
SCREW 5X20
€ 2.50
8
0214206104
ref: 8
02142-0610A
SCREW
€ 2.00
9
1418505210
ref: 9
CLAMP,EXHAUST PIPE COVER
€ 5.50
10
0916806005
ref: 10
09168-06105
GASKET 6.2X12X1.5 (MCA)
€ 2.00
11
1430105270H01
ref: 11
MUFFLER ASSY
€ 80.00
12
0924712103
ref: 12
PLUG(12X9)
€ 3.50
13
0916812002
ref: 13
GASKET(12.1X16.2X3.7) (NAS)
€ 2.00
14
1445905210
ref: 14
14459-44A00
CLAMP,MUFFLER CONNECTOR
€ 14.50
15
1477105210
ref: 15
14771-05211
CONNECTOR,MUFFLER
€ 6.00
16
0910008195
ref: 16
BOLT 8X35
€ 2.50
17
0832211084
ref: 17
08322-0108A
WASHER
€ 1.50
18
0110708165
ref: 18
01500-0816B
BOLT
€ 2.00
19
0832121084
ref: 19
08321-0108A
WASHER,LOCK,8.
€ 2.50
20
0832211084
ref: 20
08322-0108A
WASHER
€ 1.50
21
1478105230
ref: 21
COVER,MUFFLER
€ 7.50
22
0916806005
ref: 22
09168-06105
GASKET 6.2X12X1.5 (MCA)
€ 2.00
23
0214206104
ref: 23
02142-0610A
SCREW
€ 2.00
