FRONT FENDER
DR100 1986 (G) USA (E03)

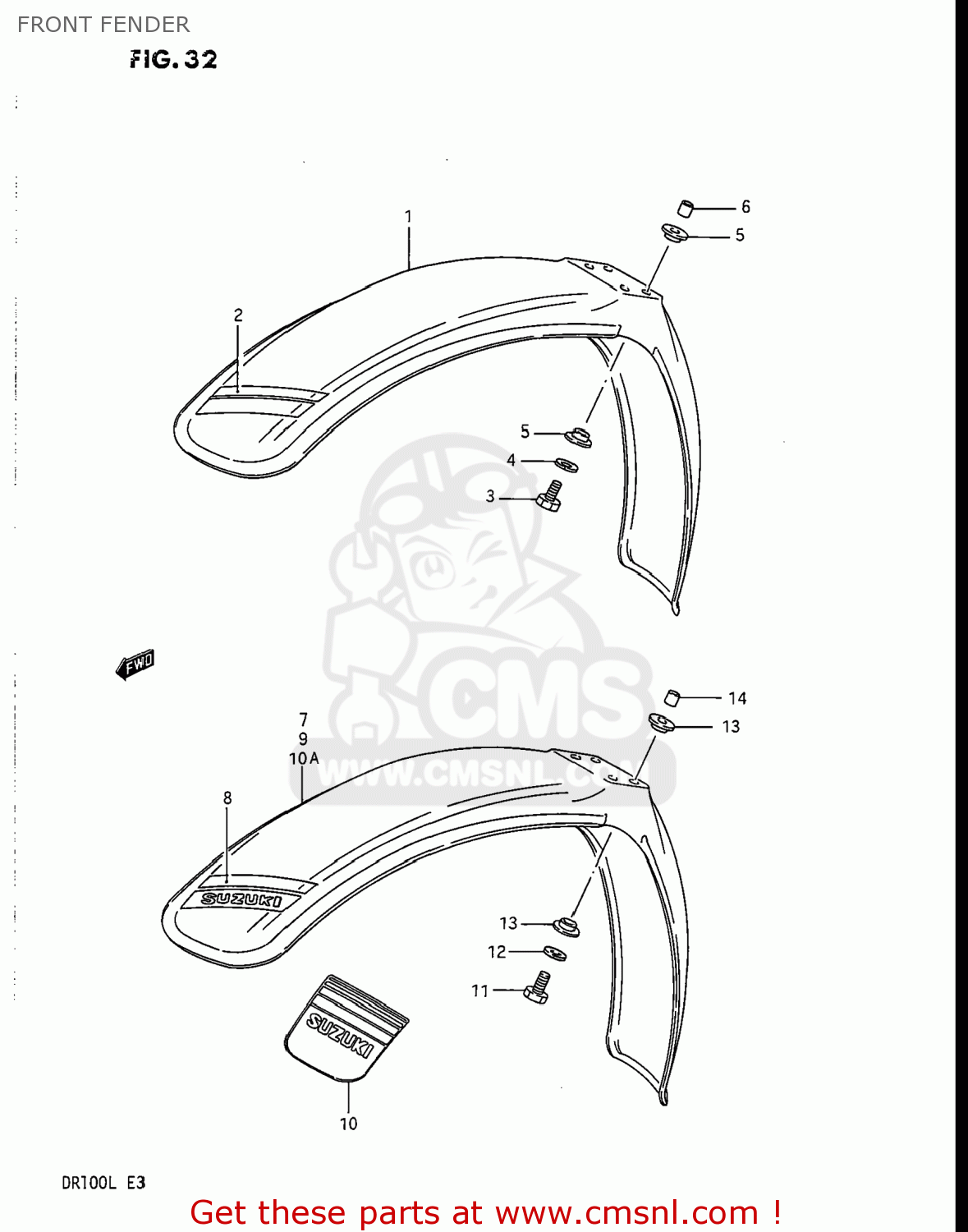

Front fender diagram DR100 1986 (G) USA (E03)
FRONT FENDER DR100 1986 (G) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5311105252163
ref: 1
53111-05252-13L
FENDER,FRONT
€ 59.00
2
68150052007CL
ref: 2
TAPE SET,FRONT FENDER
€ 8.50
3
0110706257
ref: 3
01500-06257
BOLT
€ 2.00
4
0832121067
ref: 4
08321-01067
WASHER,LOCK
€ 2.50
5
0916906053
ref: 5
WASHER
€ 2.00
6
0918006030
ref: 6
09180-06310
SPACER (6.8X10X10)
€ 2.00
7
531100521025Y
ref: 7
FENDER COMP,FRONT
€ 52.50
8
68150052109BZ
ref: 8
TAPE SET,FRONT FENDER
€ 10.00
9
531100522025Y
ref: 9
53110-05210-25Y
FENDER,FRONT
€ 52.50
10
68155052009SG
ref: 10
TAPE,FRONT FENDER
€ 6.50
10A
531110525230H
ref: 10A
53111-05252-13L
FENDER,FRONT
€ 59.00
11
0110706257
ref: 11
01500-06257
BOLT
€ 2.00
12
0832121067
ref: 12
08321-01067
WASHER,LOCK
€ 2.50
13
0916906053
ref: 13
WASHER
€ 2.00
14
0918006030
ref: 14
09180-06310
SPACER (6.8X10X10)
€ 2.00
