CYLINDER
DR125 1983 (D) USA (E03)

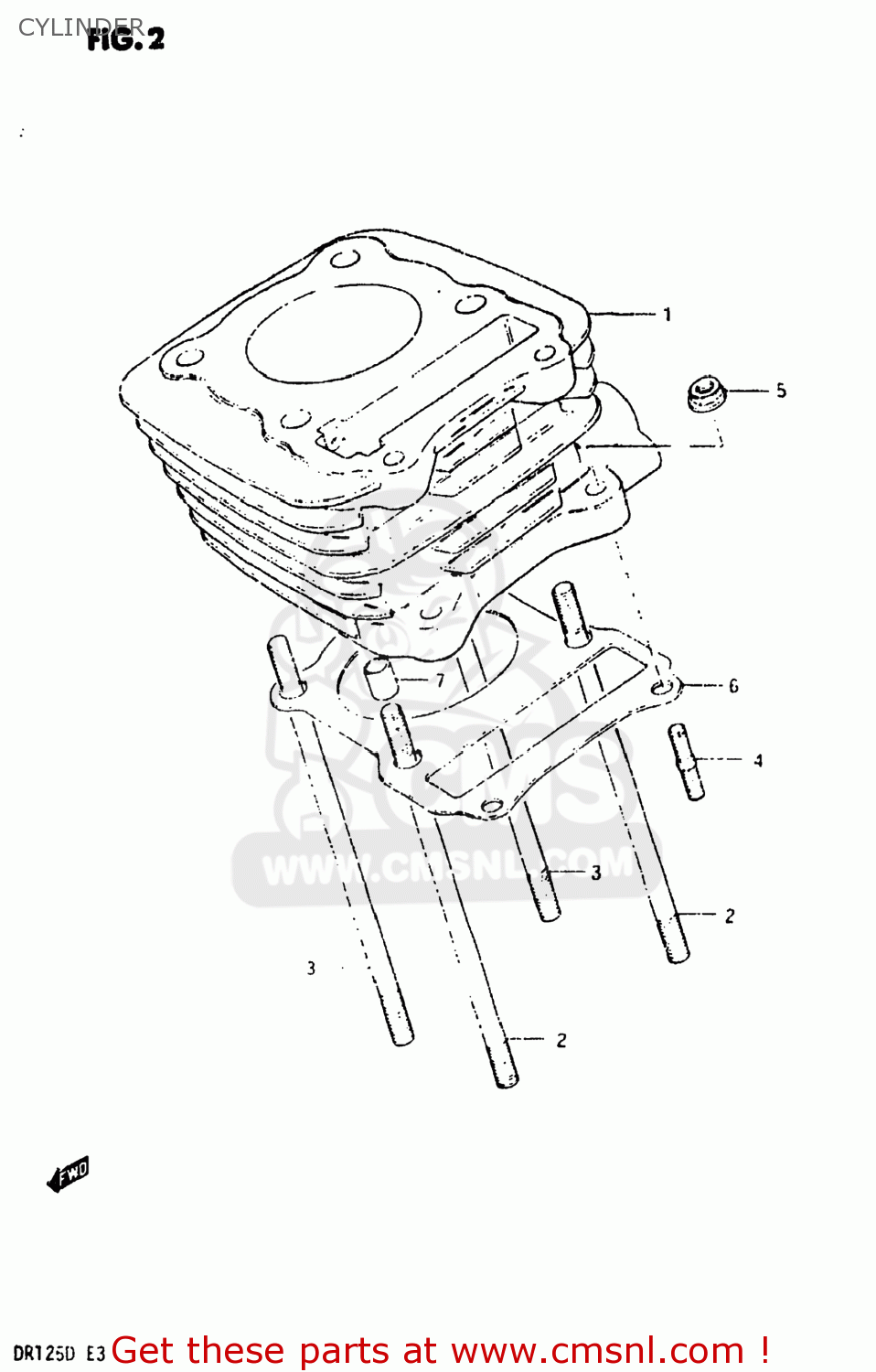

Cylinder diagram DR125 1983 (D) USA (E03)
CYLINDER DR125 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1121005210
ref: 1-1
11210-05211-0F0
CYLINDER
€ 263.50
1-2
1121005211
ref: 1-2
11210-05211-0F0
CYLINDER
€ 263.50
2
0910808062
ref: 2
BOLT,STUD
€ 4.50
3
0910808089
ref: 3
BOLT,STUD
€ 6.00
4
0142106255
ref: 4
01421-0625A
STUD 6X25
€ 2.00
5
0831616065
ref: 5
08316-1006B
NUT
€ 2.50
6
1124105200
ref: 6
11241-05311
GASKET,CYLINDER (MCA)
€ 4.50
7
0421111169
ref: 7
PIN
€ 2.00
