FOOTREST
DR125 1983 (D) USA (E03)

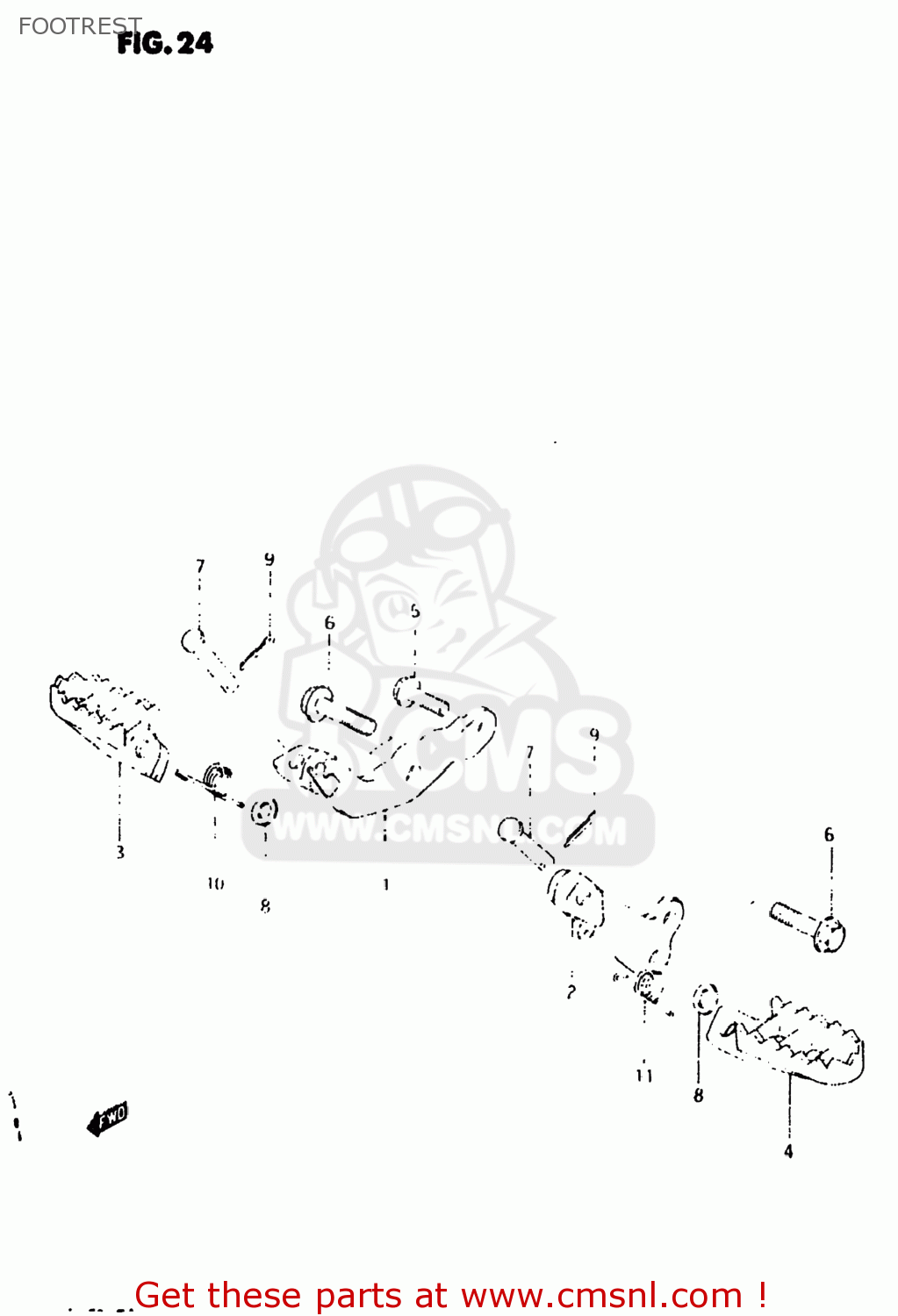

Footrest diagram DR125 1983 (D) USA (E03)
FOOTREST DR125 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4351005201
ref: 1
43510-05201-019
BAR,FRONT FOOTREST
€ 37.50
2
4352005200
ref: 2
43520-05200-019
BAR,FRONT FOOTREST,LEFT
€ 27.00
3-1
4355137201
ref: 3-1
43551-37202-019
FOOTREST,RIGHT
€ 31.00
3-2
4355137202
ref: 3-2
43551-37202-019
FOOTREST,RIGHT
€ 31.00
4
4356140401
ref: 4
43561-40401-019
FOOTREST
€ 24.50
5
0152710207
ref: 5
01550-1020A
BOLT
€ 3.00
6
0152712255
ref: 6
01550-1225A
BOLT
€ 3.00
7
0920008035
ref: 7
09200-08064
PIN
€ 6.50
8
0832221088
ref: 8
08322-01087
WASHER
€ 2.00
9
0411120208
ref: 9
04111-2020A
PIN 20X20
€ 1.50
10
0944814027
ref: 10
SPRING
€ 4.50
11
4358214300
ref: 11
43582-14600
SPRING,FOOTREST,LEFT
€ 5.50
