FRAME COVER (MODEL Z)

DR125 1983 (D) USA (E03)

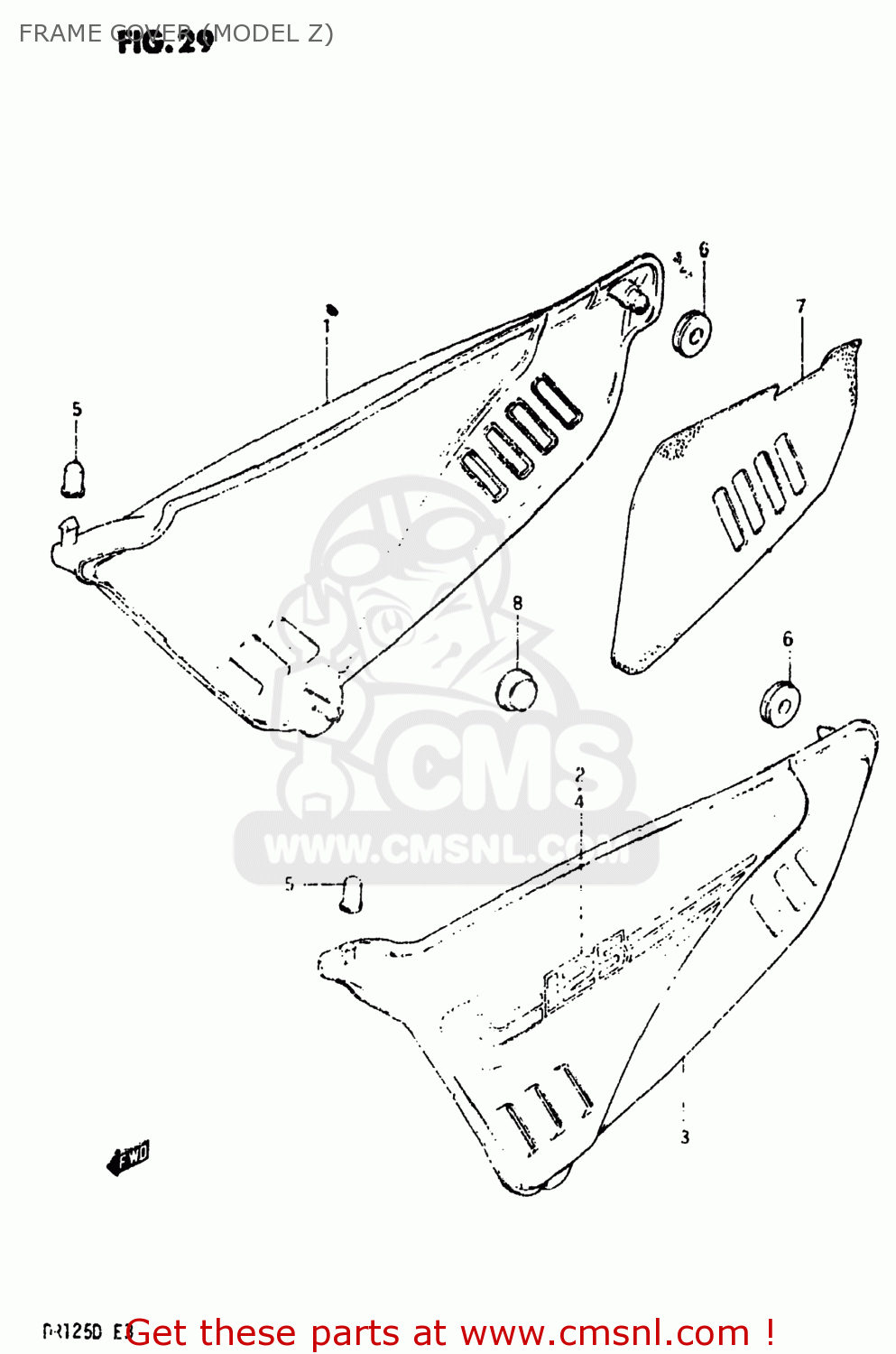

Frame cover (model z) diagram DR125 1983 (D) USA (E03)

FRAME COVER (MODEL Z) DR125 1983 (D) USA (E03)
FRAME COVER (MODEL Z) DR125 1983 (D) USA (E03)
FRAME COVER (MODEL Z) DR125 1983 (D) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
471110520010V
ref: 1
47111-05212-13L
COVER,FRAME,RIGHT
€ 85.50
2
681300520067H
ref: 2
TAPE SET,FRAME COVER
€ 9.50
3
472110521010V
ref: 3
47211-05211
COVER,FRAME,LEFT
€ 37.00
4
681400520067H
ref: 4
TAPE SET,FRAME COVER,LEFT
€ 9.50
5
0932003005
ref: 5
09320-03004
CUSHION
0932003005
€ 2.00
6
0932008018
ref: 6
CUSHION
0932008018
€ 4.00
7
4712205201
ref: 7
47122-05202
HEAT SHIELD,FRAME COVER
€ 36.50
8
0932110007
ref: 8
CUSHION
0932110007
€ 4.50
