REAR SWINGING ARM
DR125 1983 (D) USA (E03)

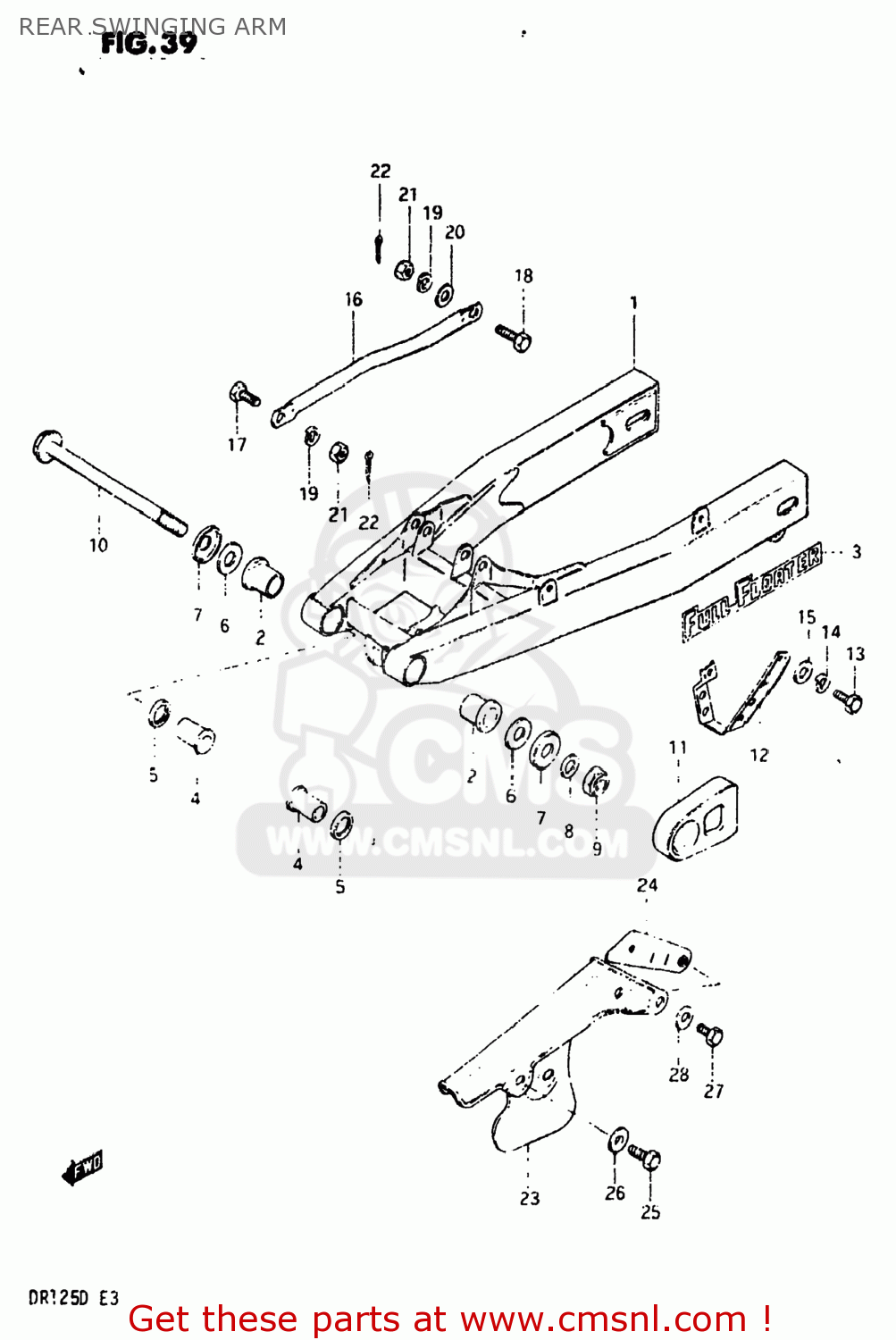

Rear swinging arm diagram DR125 1983 (D) USA (E03)
REAR SWINGING ARM DR125 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
610000521008C
ref: 1-1
61000-05213-08C
SWING ARM ASSEMBLY,REAR
€ 93.00
1-2
610000523008C
ref: 1-2
SWING ARM ASSEMBLY,REAR
€ 102.50
2
6126105300
ref: 2
61261-05301
BUSHING,REAR SWING ARM PIVOT
€ 9.50
3-1
683811410064D
ref: 3-1
EMBLEM,SWING ARM
€ 3.50
3-2
683811411073K
ref: 3-2
EMBLEM,SWING ARM
€ 3.50
4
6125105300
ref: 4
SPACER,RR SWGARM PIVOT
€ 10.00
5
0928620001
ref: 5
SEAL,OIL(20X27X5)
€ 2.50
6
0821114341
ref: 6
WASHER
€ 3.00
7
6126245002
ref: 7
CVR,RR SWGARM DUST SEAL(OD:40)
€ 4.50
8
0832211148
ref: 8
08322-01147
WASHER
€ 2.00
9
0831921148
ref: 9
08319-2114A
NUT 14MM
€ 3.00
10-1
6121105300
ref: 10-1
61211-05302
SHAFT,REAR SWING ARM
€ 12.00
10-2
6121105301
ref: 10-2
61211-05302
SHAFT,REAR SWING ARM
€ 12.00
11-1
6127305200
ref: 11-1
61273-05201
BUFFER,CHAIN TOUCH DEFLECTOR
€ 14.50
11-2
6127305201
ref: 11-2
BUFFER,CHAIN TOUCH DEFENSE
€ 14.50
12-1
6134148502
ref: 12-1
61341-48504
GUIDE,CHAIN
€ 10.00
12-2
6134148504
ref: 12-2
GUIDE,CHAIN
€ 10.00
13
0110708128
ref: 13
01500-08127
BOLT 8X12
€ 2.50
14
0832121088
ref: 14
08321-01087
LOCK WASHER
€ 2.00
15
0832211088
ref: 15
08322-01087
WASHER
€ 2.00
16
643114600008C
ref: 16
64311-46000-019
TORQUE LINK,REAR
€ 8.00
17
0911108015
ref: 17
BOLT(8X22)
€ 3.00
18
0911108013
ref: 18
BOLT(8X26.5)
€ 3.00
19
0832121088
ref: 19
08321-01087
LOCK WASHER
€ 2.00
20
0832211088
ref: 20
08322-01087
WASHER
€ 2.00
21
0914008008
ref: 21
NUT
€ 1.50
22
0411120208
ref: 22
04111-2020A
PIN 20X20
€ 1.50
23
6131126501019
ref: 23
CASE,CHAIN
€ 47.50
24
6138026500
ref: 24
REINFORCEMENT,CHAIN CASE
€ 8.50
25
0910006011
ref: 25
BOLT(6X8)
€ 2.50
26
0916906010
ref: 26
WASHER
€ 3.00
27
0110706168
ref: 27
01500-06167
BOLT, UPPER
€ 3.00
28
0832221068
ref: 28
08322-01067
WASHER
€ 2.00
