FRONT WHEEL
DR125 1983 (D) USA (E03)

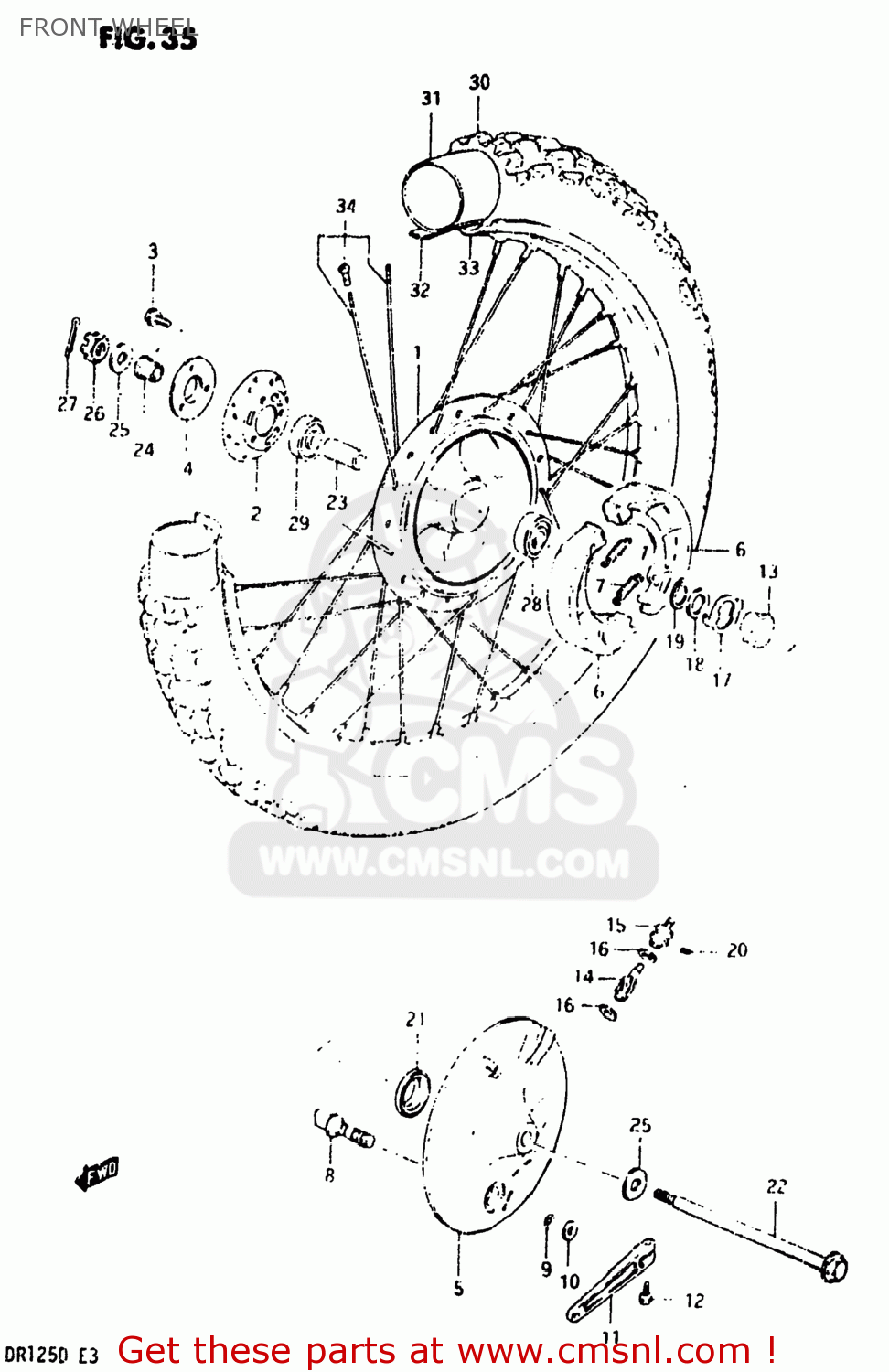

Front wheel diagram DR125 1983 (D) USA (E03)
FRONT WHEEL DR125 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5411029300
ref: 1
HUB,FR WHEEL
€ 156.50
2
5411238200
ref: 2
FLANGE,FR HUB,R
€ 15.50
3
0151706168
ref: 3
01550-06167
BOLT
€ 1.50
4
5415138200
ref: 4
PLATE,FRONT HUB BEARING
€ 5.00
5
5421048501
ref: 5
54210-48502
PANEL,FRONT HUB
€ 150.50
6
5441007002
ref: 6
54401-07810
SHOE,BRAKE
€ 35.00
7
0944307001
ref: 7
09443-07025
SPRING(L:34)
€ 2.50
8
5444148501
ref: 8
54441-48502
CAM,FRONT BRAKE
€ 10.00
9
0928014003
ref: 9
09280-14011
O-RING (D:2.4 ID:13.8)
€ 3.50
10
0916014001
ref: 10
09160-14055
WASHER (14.5X22X1.6)
€ 2.50
11
5445132400
ref: 11
54451-32401
LEVER,FRONT BRAKE CAM
€ 48.00
12
0151706258
ref: 12
01550-06257
BOLT
€ 2.50
13
5461128402
ref: 13
GEAR,SPEEDOMETER
€ 26.00
14
5462128401
ref: 14
PINION,SPEEDOMETER
€ 15.50
15
5463201001
ref: 15
BUSH,METER GEAR OUTER
€ 9.00
16
0916005001
ref: 16
09160-05001-A05
WASHER (5.1X9X0.4)
€ 2.00
17
5466129300
ref: 17
DRIVER,SPEEDOMETER GEAR
€ 4.00
18
0916018002
ref: 18
WASHER(18.5X24X1)
€ 2.00
19
0833111189
ref: 19
CIRCLIP
€ 2.00
20
0913403101
ref: 20
09134-03101-A05
SCREW
€ 1.50
21
0928543001
ref: 21
09283-43004
OIL SEAL (43X58X7)
€ 10.00
22
5471116503
ref: 22
54711-16504
AXLE,FRONT
€ 29.50
23
0918012041
ref: 23
09180-12144
SPACER (12.6X19X52)
€ 4.50
24
5474141100
ref: 24
SPACER,FR AXLE,R
€ 10.00
25
0832211128
ref: 25
08322-01127
WASHER
€ 2.00
26
0831431128
ref: 26
08314-3112A
NUT 12MM
€ 2.00
27
0411130308
ref: 27
04111-3030A
COTTER PIN
€ 1.50
28
0814362017
ref: 28
BEARING
€ 11.50
29
0812362017
ref: 29
08133-62017
BEARING, RH
€ 15.00
30-1
5510005260
ref: 30-1
55100-29555
TIRE,FRONT
€ 74.00
30-2
5510005270
ref: 30-2
TIRE,FRONT
€ 62.50
31
5520016510
ref: 31
TUBE
€ 32.50
32
5526116510
ref: 32
55261-14540
PROTECTOR,WHEEL,INNER
€ 5.00
33-1
5531105210
ref: 33-1
RIM,FRONT WHEEL
€ 216.50
33-2
5531105260
ref: 33-2
55311-38230
RIM,FRONT WHEEL
€ 216.50
34
5532005210
ref: 34
SPOKE SET,FRONT
€ 31.00
