CYLINDER

DR125 1984 (E) USA (E03)

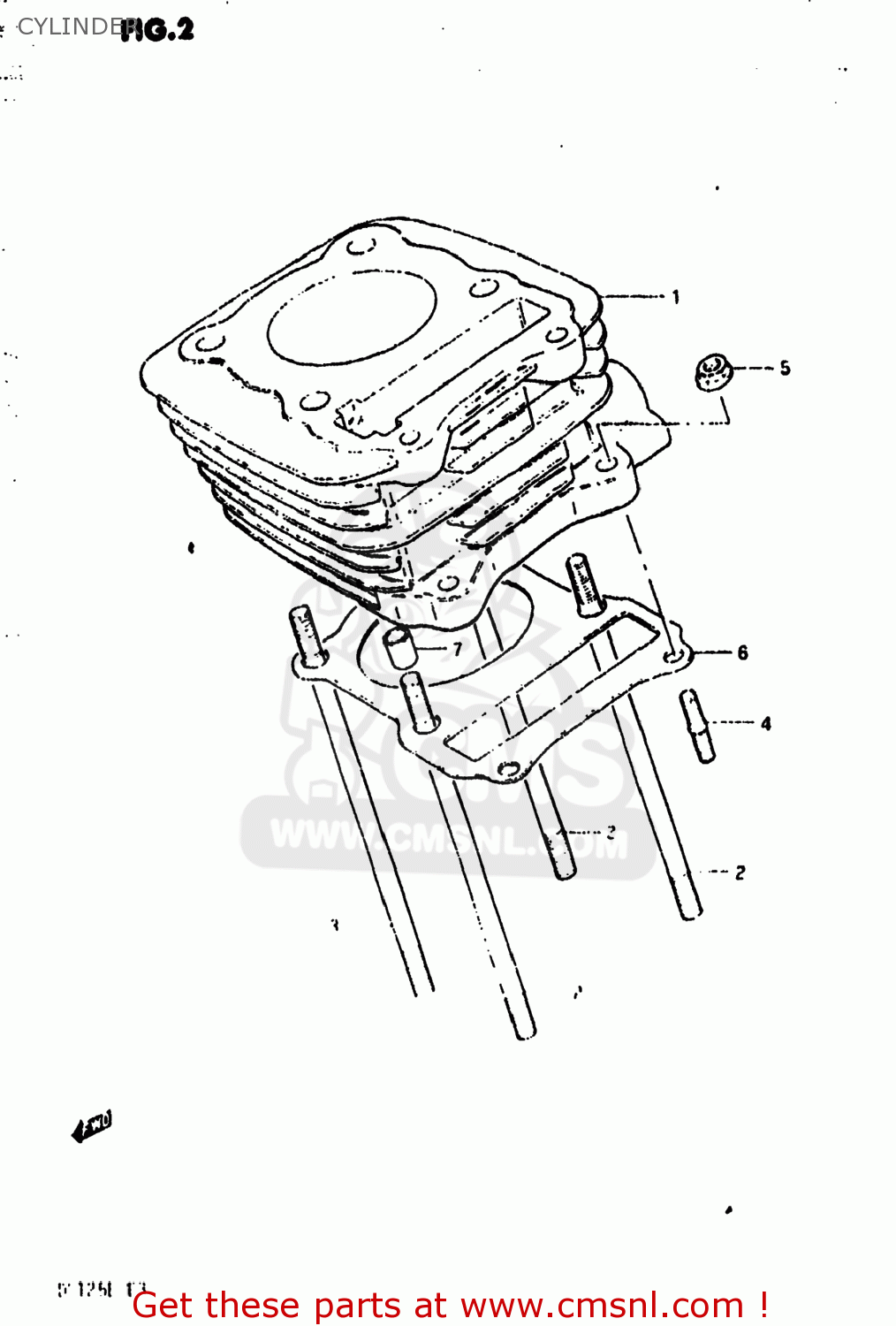

Cylinder diagram DR125 1984 (E) USA (E03)

CYLINDER DR125 1984 (E) USA (E03)

CYLINDER DR125 1984 (E) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1121005211
ref: 1
11210-05211-0F0

CYLINDER

€ 263.50

2

0910808062
ref: 2

BOLT,STUD

€ 4.50

3

0910808089
ref: 3

BOLT,STUD

€ 6.00

4

0142106255
ref: 4
01421-0625A

STUD 6X25

€ 2.00

5

0831616065
ref: 5
08316-1006B

NUT

€ 2.50

6

1124105200
ref: 6
11241-05311

GASKET,CYLINDER (MCA)

€ 4.50

7

0421111169
ref: 7

PIN

€ 2.00
