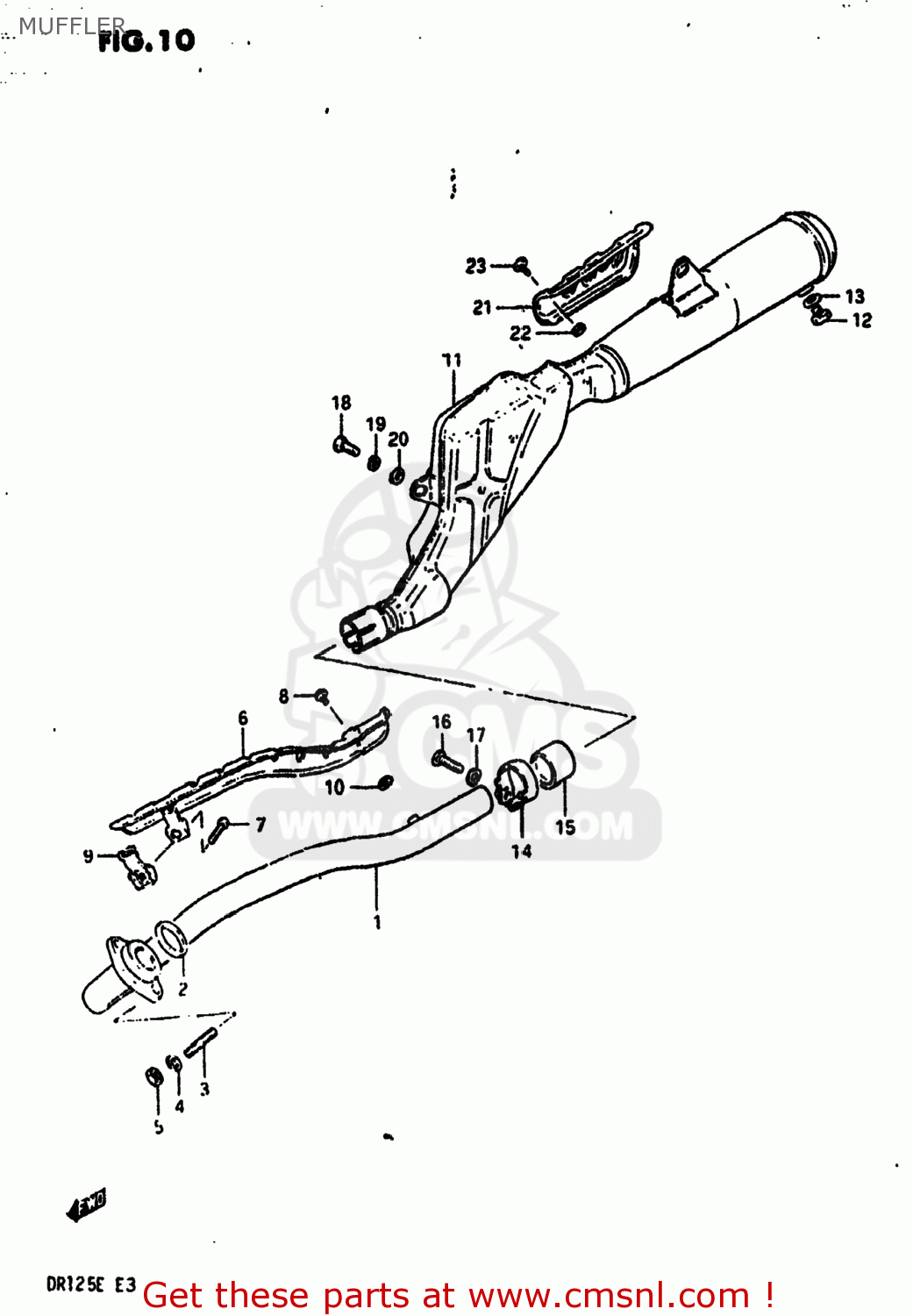

MUFFLER

ref

part #

description

quantity

1

1415005200
ref: 1

PIPE,EXHAUST

€ 53.50

2

1418105020
ref: 2
14181-18C00

GASKET,EXHAUST PIPE (NAS)

€ 6.50

3

0142106205
ref: 3
01421-0620A

STUD BOLT L:20

€ 2.50

4

0832121065
ref: 4
08321-0106A

LOCK WASHER

€ 2.00

5

0831011065
ref: 5
08310-0006A

NUT

€ 2.00

6

1418005200
ref: 6

COVER,EXHAUST PIPE

€ 32.50

7

0211205205
ref: 7
02112-0520B

SCREW 5X20

€ 2.50

8

0214206105
ref: 8
02142-0610A

SCREW

€ 2.00

9

1418505200
ref: 9

CLAMP,EXHAUST PIPE COVER

€ 3.50

10

0916806005
ref: 10
09168-06105

GASKET 6.2X12X1.5 (MCA)

€ 2.00

11

1430105250H01
ref: 11

MUFFLER ASSEMBLY

€ 0.00

12

0924712103
ref: 12

PLUG(12X9)

€ 3.50

13

0916812003
ref: 13

GASKET(12X16X2) (NAS)

€ 2.00

14

1445905200
ref: 14
14459-44A00

CLAMP,MUFFLER CONNECTOR

€ 14.50

15

1477105200
ref: 15
14771-05220

CONNECTOR,MUFFLER

€ 51.50

16

0910008195
ref: 16

BOLT 8X35

€ 2.50

17

0832211085
ref: 17
08322-0108A

WASHER,8.5X16X

€ 1.50

18

0110708165
ref: 18
01500-0816B

BOLT

€ 2.00

19

0832121085
ref: 19
08321-0108A

LOCK WASHER

€ 2.50

20

0832211085
ref: 20
08322-0108A

WASHER,8.5X16X

€ 1.50

21

1478105200
ref: 21

COVER,MUFFLER

€ 11.50

22

0916806005
ref: 22
09168-06105

GASKET 6.2X12X1.5 (MCA)

€ 2.00

23

0214206105
ref: 23
02142-0610A

SCREW

€ 2.00

all assemblies
