TRIP METER
DR125 1984 (E) USA (E03)

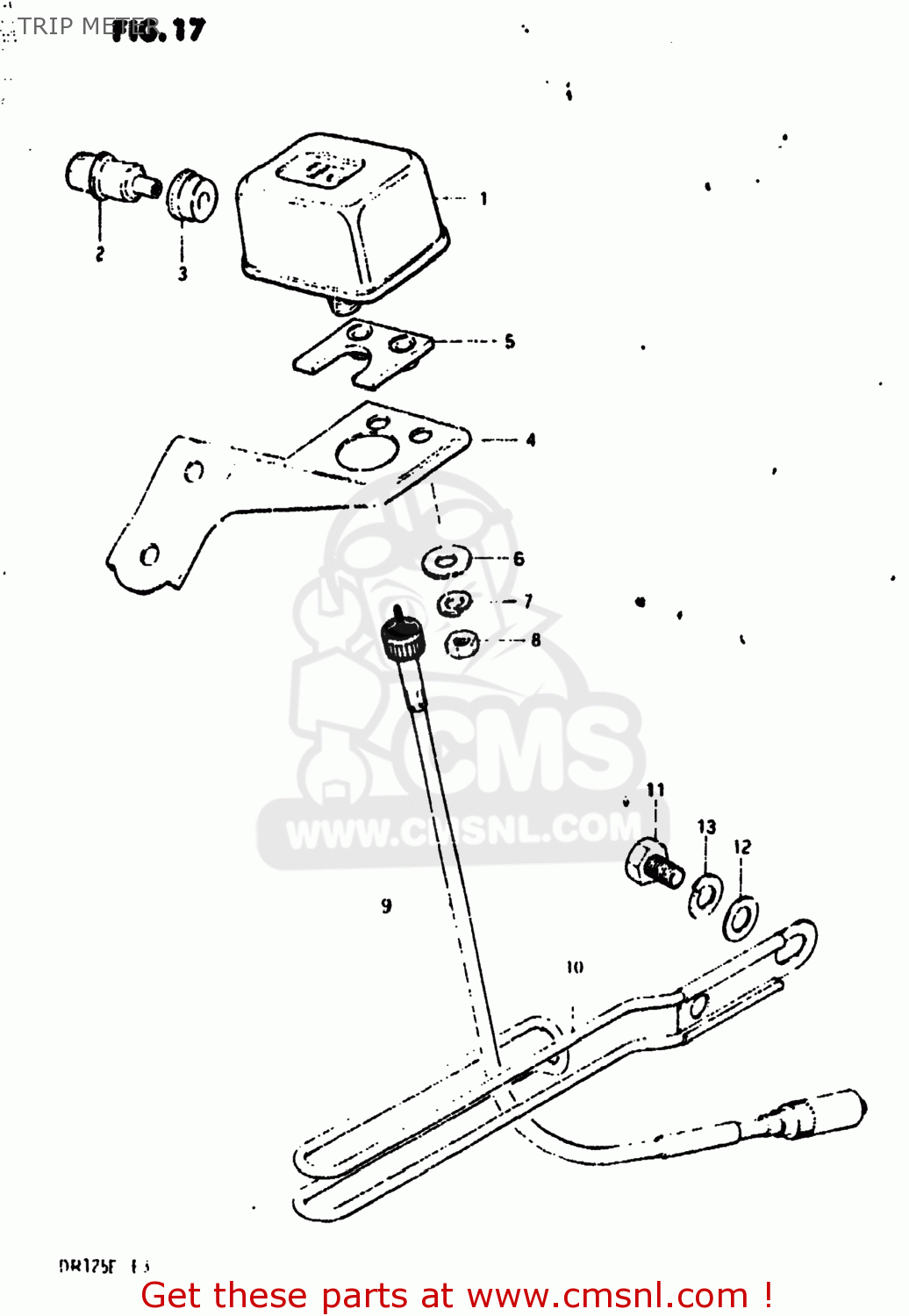

Trip meter diagram DR125 1984 (E) USA (E03)
TRIP METER DR125 1984 (E) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3472140610
ref: 1
34721-05D20
TRIP METER
€ 136.50
2
3412440610
ref: 2
KNOB,TRIP METER
€ 6.00
3
3412641410
ref: 3
COVER,TRIPMETER KNOB
€ 2.00
4
3472537262
ref: 4
BRACKET,TRIPMETER
€ 20.00
5
3472641410
ref: 5
CUSHION,TRIPMETER
€ 4.00
6
3472741410
ref: 6
09160-04022
WASHER,METER
€ 1.50
7
0832121048
ref: 7
08321-0104A
LOCK WASHER
€ 2.00
8
0831011048
ref: 8
08310-00047
NUT
€ 2.00
9
3491005350
ref: 9
34910-05992
CABLE ASSEMBLY,SPEEDOMETER
€ 54.00
10
3493005200
ref: 10
34930-05203
GUIDE,CABLE
€ 16.00
11
0110708128
ref: 11
01500-08127
BOLT 8X12
€ 2.50
12
0832211088
ref: 12
08322-01087
WASHER
€ 2.00
13
0832121088
ref: 13
08321-01087
LOCK WASHER
€ 2.00
