FRONT FORK
DR125 1984 (E) USA (E03)

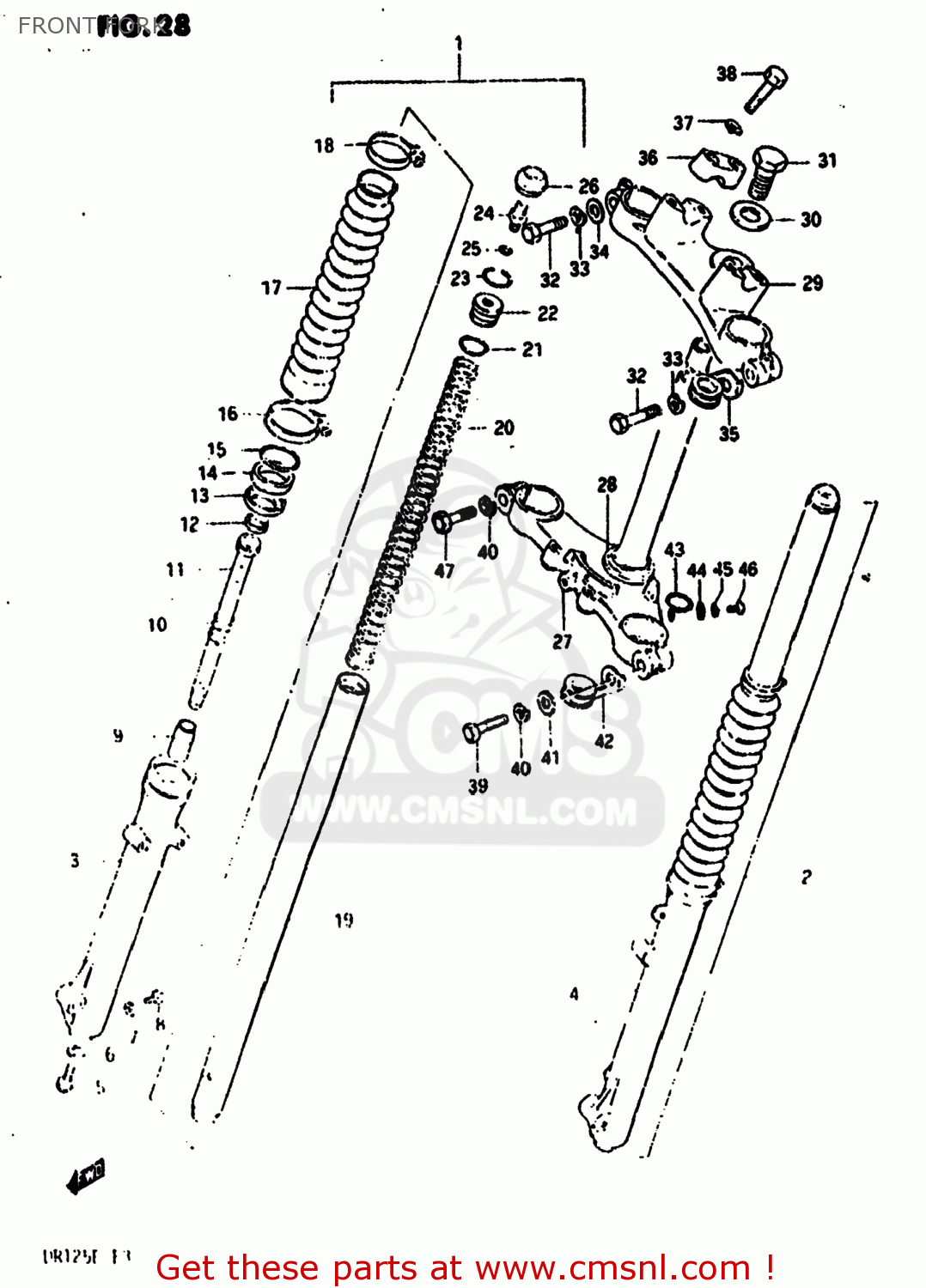

Front fork diagram DR125 1984 (E) USA (E03)
FRONT FORK DR125 1984 (E) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
511030520819F
ref: 1
DAMPER ASSEMBLY,RIGHT
€ 149.00
2
511040520819F
ref: 2
DAMPER ASSEMBLY,LEFT
€ 155.50
3
5113005200
ref: 3
TUBE,FORK,OUTER,RIGHT
€ 83.00
4
5114005200
ref: 4
TUBE,OUTER,LEFT
€ 81.50
5
5114748130
ref: 5
BOLT(8X27)
€ 3.50
6
5114831030
ref: 6
51148-36011
GASKET (NAS)
€ 4.00
7
5118331030
ref: 7
GASKET,DRAIN,PLUG (NAS)
€ 4.00
8
0110706088
ref: 8
09100-06157
BOLT
€ 2.50
9
5119548000
ref: 9
PIECE,OIL LOCK
€ 8.50
10
5117748700
ref: 10
SPRING,REBOUND
€ 4.50
11
5114605205
ref: 11
CYLINDER,FR FORK
€ 21.00
12
5119633130
ref: 12
RING,PISTON
€ 7.50
13
5116805210
ref: 13
SPACER
€ 3.00
14
5115348500
ref: 14
51153-05210
OIL SEAL,FRONT FORK
€ 8.00
15
5115605200
ref: 15
RING,OIL SEAL STOPPER
€ 0.00
16
5157613620
ref: 16
BAND,FR FORK BOOT
€ 5.00
17
515711362019F
ref: 17
BOOT,FR FORK COVER
€ 53.50
18
5157513620
ref: 18
BAND,BOOT,UPPER
€ 5.00
19
5111005200
ref: 19
TUBE,FORK INNER
€ 176.00
20
5117105205
ref: 20
SPRING,FRONT FORK
€ 0.00
21
5118133131
ref: 21
O RING
€ 5.00
22
5117244170
ref: 22
SEAT,SPRING
€ 0.00
23
5116948500
ref: 23
RING,STOPPER
€ 2.00
24
5129345440
ref: 24
VALVE,AIR
€ 17.00
25
5111745440
ref: 25
09280-06005
O-RING
€ 2.50
26
5118905200
ref: 26
CAP,FRONT FORK
€ 5.50
27
5141005208126
ref: 27
51410-05230-291
STEM,STEERING
€ 162.50
28
5162133001
ref: 28
RACE,STEERING OUTER LWR
€ 10.00
29
5131105208
ref: 29
HEAD,STEERING STEM
€ 62.50
30
5135622012
ref: 30
WASHER,STEM HEAD(10.5X30X3.2)
€ 4.00
31
5135220030
ref: 31
BOLT,STEERING STEM HEAD
€ 4.50
32
5145127431
ref: 32
BOLT
€ 4.50
33
0832121108
ref: 33
08321-01107
LOCK WASHER
€ 2.00
34
0832221108
ref: 34
08322-01107
WASHER
€ 2.50
35
5145505211
ref: 35
GUIDE,CABLE
€ 0.00
36
5621127100
ref: 36
HOLDER,HANDLEBAR
€ 12.50
37
0832121088
ref: 37
08321-01087
LOCK WASHER
€ 2.00
38
0120408357
ref: 38
BOLT
€ 3.50
39
0110712458
ref: 39
01500-12457
BOLT 12X45
€ 5.50
40
0832121128
ref: 40
08321-01127
WASHER,LOCK 12
€ 2.50
41
0832221128
ref: 41
08322-01127
WASHER
€ 2.00
42
5145205211
ref: 42
GUIDE,CABLE
€ 0.00
43
5145248500
ref: 43
CLIP
€ 6.00
44
0832221068
ref: 44
08322-01067
WASHER
€ 2.00
45
0832121068
ref: 45
08321-01067
LOCK WASHER
€ 2.50
46
0211206128
ref: 46
02112-06127
SCREW 6X12
€ 2.00
47
0110412408
ref: 47
01500-12403
BOLT
€ 3.00
