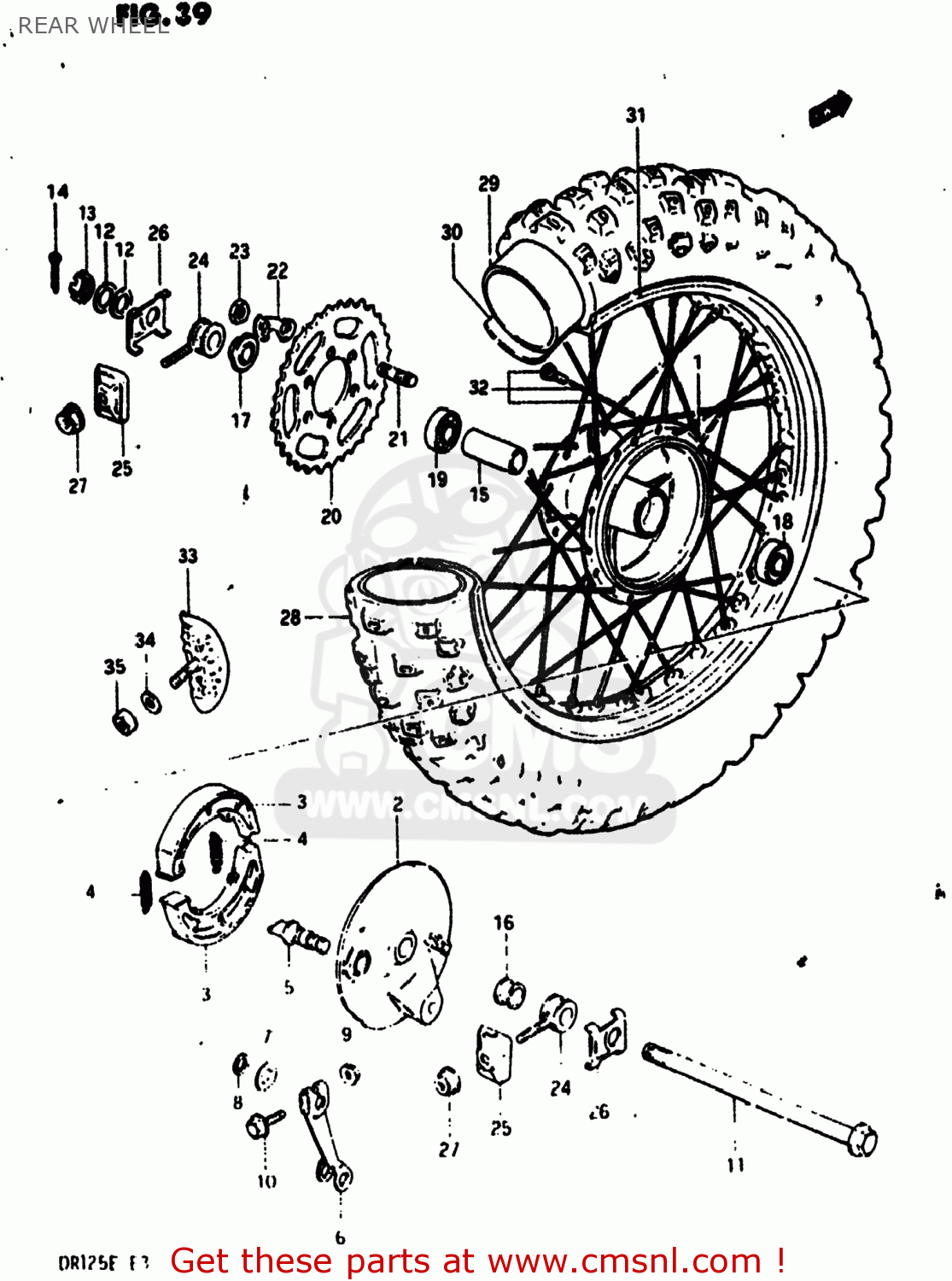

REAR WHEEL

ref

part #

description

quantity

1

6411005200
ref: 1
64110-05201

HUB,REAR WHEEL

€ 190.50

2

6421048000
ref: 2

PANEL,RR BRAKE ANCHOR

€ 83.50

3

5441007002
ref: 3
54401-07810

SHOE,BRAKE

€ 35.00

4

0944307001
ref: 4
09443-07025

SPRING(L:34)

€ 2.50

5

5444129304
ref: 5
54441-29305

CAM,FRONT BRAKE

€ 13.00

6

6445130501
ref: 6

LEVER,RR BRAKE CAM

€ 15.00

7

0916014001
ref: 7
09160-14055

WASHER (14.5X22X1.6)

€ 2.50

8

0928014003
ref: 8
09280-14011

O-RING (D:2.4 ID:13.8)

€ 3.50

9

0915906017
ref: 9
08319-31067

NUT

€ 2.50

10

0151706408
ref: 10
01550-06407

BOLT

€ 2.50

11

6471105200
ref: 11
64711-05201

AXLE,REAR

€ 38.50

12

0832221148
ref: 12
08322-01147

WASHER

€ 2.00

13

0914114001
ref: 13

NUT

€ 4.50

14

0411130308
ref: 14
04111-3030A

COTTER PIN

€ 1.50

15

0918015013
ref: 15

SPACER(15.3X21.7X107.5)

€ 7.50

16

6474105200
ref: 16

SPACER,RR AXLE,R

€ 6.50

17

6475005201
ref: 17
64750-05202

SPACER,REAR AXLE,LEFT

€ 8.00

18

0814362027
ref: 18

BEARING

€ 12.50

19

0812363027
ref: 19

BEARING

€ 19.00

20

6451105210
ref: 20

SPROCKET,RR(NT:47)

€ 28.00

21

0910808100
ref: 21

BOLT,STUD

€ 4.00

22

0916908013
ref: 22

WASHER

€ 2.50

23

0831012088
ref: 23
08310-00087

NUT

€ 2.00

24

6141005200
ref: 24

ADJUSTER,CHAIN

€ 8.50

25

6142138200
ref: 25

PLATE,CHAIN ADJUSTER

€ 3.50

26

6471205200
ref: 26

WASHER,CHAIN ADJUSTER GUIDE

€ 4.50

27

0831931088
ref: 27
08319-3108A

NUT

€ 2.50

28-1

6510005215
ref: 28-1

TIRE 3.50-17

€ 87.00

28-2

6510005270
ref: 28-2

TIRE

€ 79.50

29-1

6520029500
ref: 29-1

TUBE 3.50-17 089-432MM

€ 0.00

29-2

6520005220
ref: 29-2

TUBE ASSEMBLY,WHEEL,INNER

€ 15.50

30

5526120330
ref: 30
55261-02B40

PROTECTOR,WHEEL,INNER

€ 3.50

31

6531105260
ref: 31

RIM,REAR WHEEL (1.85-17 A)

€ 136.50

32

6532005200
ref: 32

SPOKE SET,REAR

€ 0.00

33

6527046910
ref: 33
65270-43D00

STOPPER,BEAD

€ 30.50

34

0832211088
ref: 34
08322-01087

WASHER

€ 2.00

35

0831012088
ref: 35
08310-00087

NUT

€ 2.00
