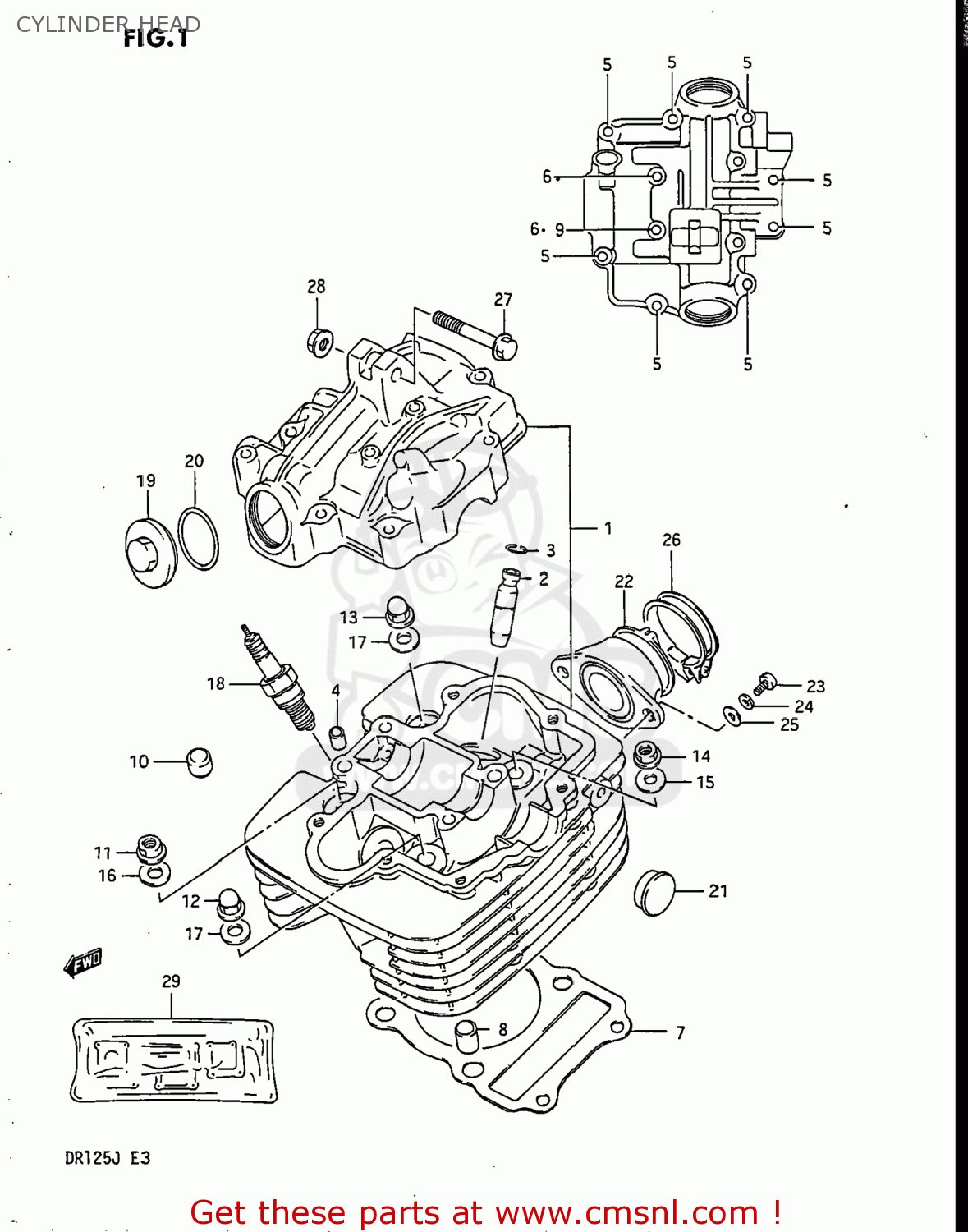

CYLINDER HEAD

ref

part #

description

quantity

1-1

1110044A00
ref: 1-1

HEAD ASSY,CYLINDER

€ 307.00

1-2

1110044A10
ref: 1-2
11100-44A11

HEAD ASSEMBLY,CYLINDER

€ 278.00

2

1111505270
ref: 2

GUIDE,VALVE

€ 18.50

3

0938110004
ref: 3

RING,SNAP

€ 1.50

4

0920608001
ref: 4

PIN(6.2X8X11)

€ 2.00

5

0151706354
ref: 5
01550-0635A

BOLT 6X35

€ 2.50

6

0151706605
ref: 6
01550-0660A

BOLT ,6X60

€ 2.50

7

1114105201
ref: 7
11141-05202

GASKET,CYLINDER HEAD (NAS)

€ 7.50

8

0421111169
ref: 8

PIN

€ 2.00

9

0916806015
ref: 9
09168-06023

WASHER

€ 2.00

10

1115145000
ref: 10

PAD,CYLINDER HEAD

€ 3.00

11

0915908047
ref: 11
09159-08049

NUT

€ 7.00

12

0915908064
ref: 12
09159-08049

NUT (8MM)

€ 7.00

13

0831616085
ref: 13
08316-1008B

NUT 8MM

€ 3.00

14

0831616088
ref: 14
08316-10087

NUT

€ 2.50

15

0916008053
ref: 15
09160-08039

WASHER (8.5X19X2.3)

€ 2.00

16

0916008039
ref: 16

WASHER(8.5X19X2.3)

€ 2.00

17

0916808012
ref: 17
09168-08013

GASKET (NAS)

€ 4.50

18-1

0948200144
ref: 18-1

SPARK PLUG D8EA

€ 3.50

18-2

0948200145
ref: 18-2
09482-00223

SPARK PLUG X24ES-U

€ 3.50

19-1

1117505260
ref: 19-1

CAP,INSPECTION

€ 13.00

19-2

1117542A00
ref: 19-2

CAP,INSPECTION

€ 9.50

20

0928030001
ref: 20

O RING(D:3,ID:29.5)

€ 2.00

21

0924122002
ref: 21

PLUG(OD:22.5)

€ 5.50

22

1311044A00
ref: 22

PIPE,INTAKE

€ 20.50

23

0211206164
ref: 23
02112-0616A

SCREW

€ 2.00

24

0832121064
ref: 24
08321-0106A

WASHER,LOCK

€ 2.00

25

0832221064
ref: 25
08322-0106B

WASHER

€ 2.00

26

0940244208
ref: 26

CLAMP

€ 5.50

27-1

0910308082
ref: 27-1
09103-08395

BOLT 8X50

€ 7.00

27-2

0910308081
ref: 27-2

BOLT(8X50)

€ 3.50

28-1

0831931085
ref: 28-1
08319-3108A

NUT

€ 2.50

28-2

0831931087
ref: 28-2

NUT

€ 2.50

29

1140005890
ref: 29
11400-05894

GASKET SET (MCA)

€ 44.00

all assemblies
