HEADLAMP HOUSING
DR125 1987 (H) USA (E03)

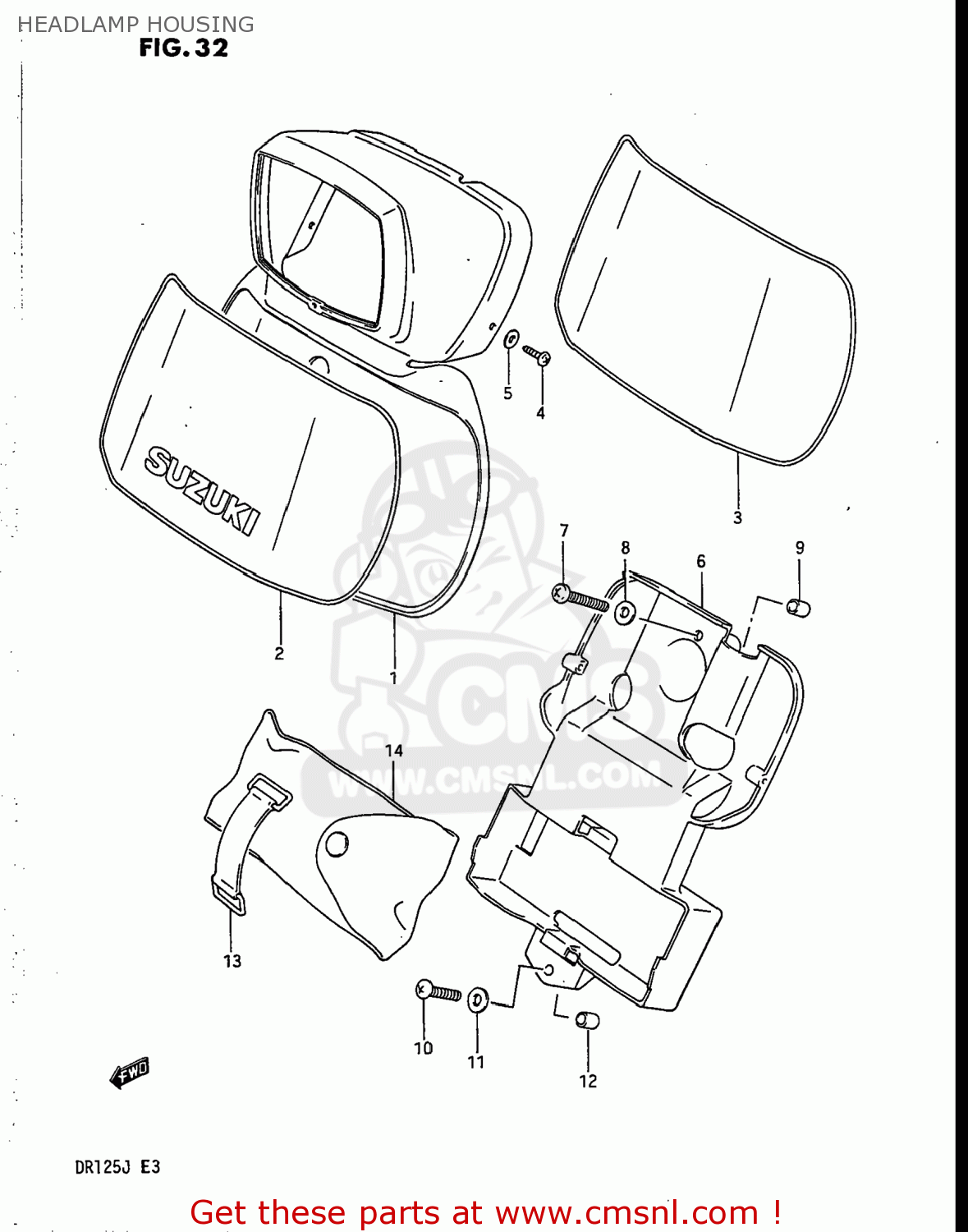

Headlamp housing diagram DR125 1987 (H) USA (E03)
HEADLAMP HOUSING DR125 1987 (H) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
5181042A00163
ref: 1-1
51811-37202-163
HOUSING,HEADLAMP
€ 25.00
1-2
5181042A1025Y
ref: 1-2
51810-42A10-22X
HOUSING,HEADLAMP
€ 85.00
1-3
5181042A1022X
ref: 1-3
COVER,HEADLAMP
€ 85.00
2
6825044A0073K
ref: 2
TAPE SET,HEADLAMP COVER
€ 0.00
3-1
6825042A00765
ref: 3-1
TAPE SET,HEADLAMP COVER
€ 17.00
3-2
6825042A0033N
ref: 3-2
TAPE SET,HEADLAMP COVER
€ 0.00
4
0321104128
ref: 4
03142-0412B
TAPPING SCREW
€ 1.50
5
0832221047
ref: 5
08322-01047
WASHER 4MM
€ 2.00
6
4155137202
ref: 6
HOLDER,TOOL
€ 25.00
7
0211206555
ref: 7
02112-0655B
SCREW
€ 2.00
8
0832221064
ref: 8
08322-0106B
WASHER
€ 2.00
9
0918006024
ref: 9
09180-06298
SPACER (6.8X10X27.4)
€ 3.00
10
0912506038
ref: 10
09125-06055
SCREW
€ 3.00
11
0832221067
ref: 11
08322-01067
WASHER
€ 2.00
12
0918006030
ref: 12
09180-06310
SPACER (6.8X10X10)
€ 2.00
13
0946200017
ref: 13
BAND
€ 13.50
14
0980000301
ref: 14
09800-21022
TOOL SET
€ 33.00
