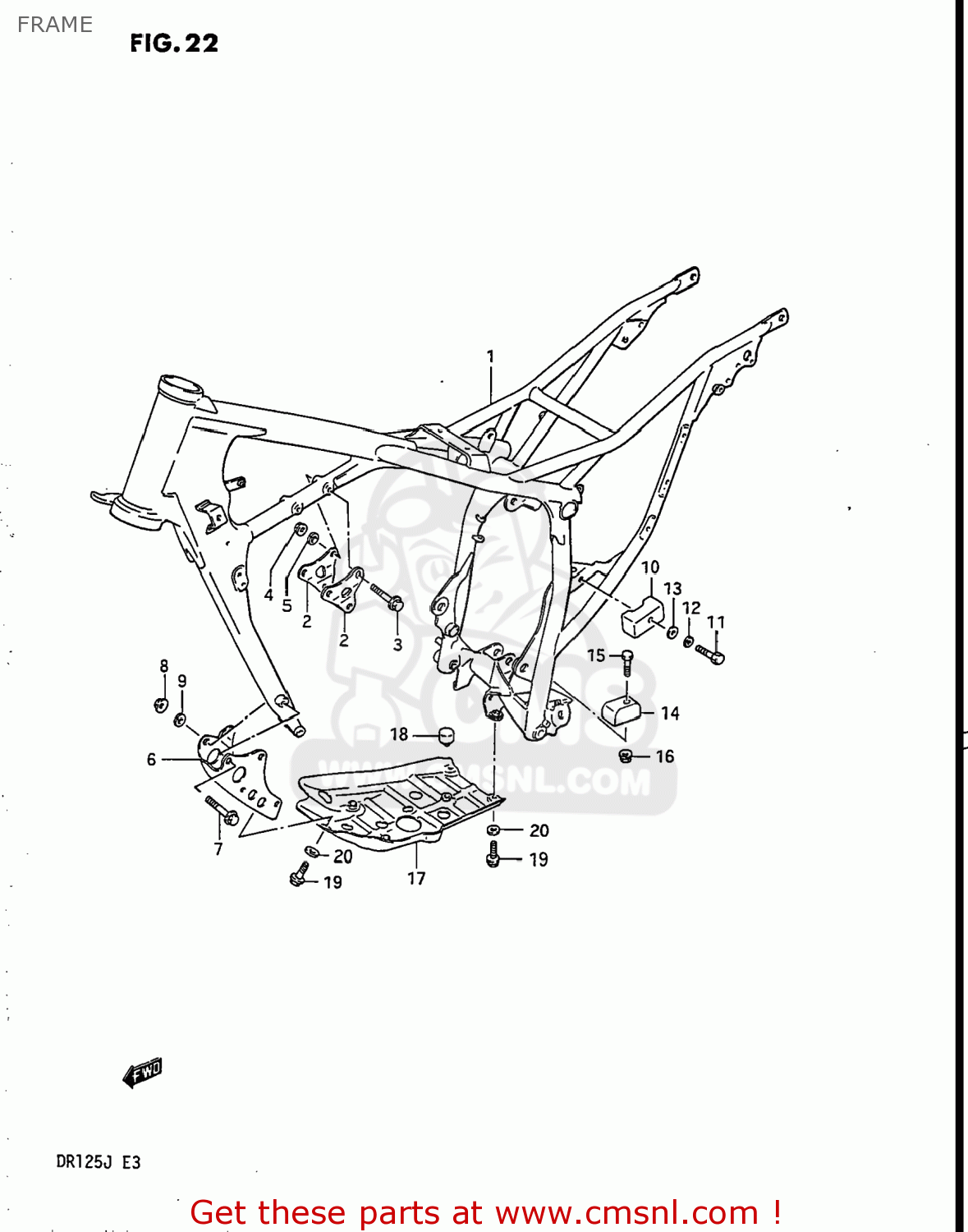

FRAME

ref

part #

description

quantity

1-1

4110044A4019F
ref: 1-1

FRAME

€ 576.50

1-2

4110044A4013L
ref: 1-2
41100-44A40-34S

FRAME

€ 576.50

1-3

4110044A4034S
ref: 1-3

FRAME

€ 576.50

2

4199144A00291
ref: 2

PLATE,ENGINE MOUNT UPR

€ 10.00

3-1

0910308190
ref: 3-1
09103-08332

BOLT

€ 3.50

3-2

0910308206
ref: 3-2

BOLT

€ 3.50

4-1

0831921085
ref: 4-1
08319-2108A

NUT

€ 1.50

4-2

0831931087
ref: 4-2

NUT

€ 2.50

5-1

0832131084
ref: 5-1
08321-0108A

LOCK WASHER

€ 2.50

5-2

0832131086
ref: 5-2
08321-0108A

WASHER,LOCK,8.

€ 2.50

6-1

419920520019F
ref: 6-1
41992-05200-019

PLATE,ENGINE MOUNTING

€ 9.50

6-2

419920520013L
ref: 6-2
41992-05200-019

PLATE,ENGINE MOUNTING

€ 9.50

6-3

419920520034S
ref: 6-3

PLATE,ENGINE MOUNTING

€ 9.50

7-1

0910308189
ref: 7-1

BOLT 8X70

€ 6.00

7-2

0910308205
ref: 7-2
09103-08099

BOLT

€ 6.00

8-1

0831921085
ref: 8-1
08319-2108A

NUT

€ 1.50

8-2

0831931087
ref: 8-2

NUT

€ 2.50

9-1

0832131084
ref: 9-1
08321-0108A

LOCK WASHER

€ 2.50

9-2

0832131086
ref: 9-2
08321-0108A

WASHER,LOCK,8.

€ 2.50

10

4391144A00
ref: 10

GUIDE,CH CONTROL UPR

€ 12.00

11-1

0910006033
ref: 11-1

BOLT(6X35)

€ 12.50

11-2

0110706355
ref: 11-2
01500-0635A

BOLT 6X35

€ 2.50

12

0832121064
ref: 12
08321-0106A

WASHER,LOCK

€ 2.00

13

0832221064
ref: 13
08322-0106B

WASHER

€ 2.00

14

4391244A00
ref: 14

GUIDE,CH LENGTH CONTROL LWR

€ 14.50

15

0110706257
ref: 15
01500-06257

BOLT

€ 2.00

16

0831626068
ref: 16
08316-2006A

NUT 6MM

€ 2.00

17

425100520213L
ref: 17
42510-05203-13L

PROTECTOR,ENGINE

€ 64.00

18

0932912003
ref: 18

CUSHION

€ 4.00

19-1

0712006125
ref: 19-1
07120-0612B

BOLT

€ 3.50

19-2

0712006128
ref: 19-2
07120-06127

BOLT

€ 3.00

20-1

0916006069
ref: 20-1
09160-06052

WASHER

€ 2.00

20-2

0916006019
ref: 20-2

WASHER(6.5X16X1.2)

€ 1.50
