RIGHT HANDLE SWITCH
DR125 1987 (H) USA (E03)

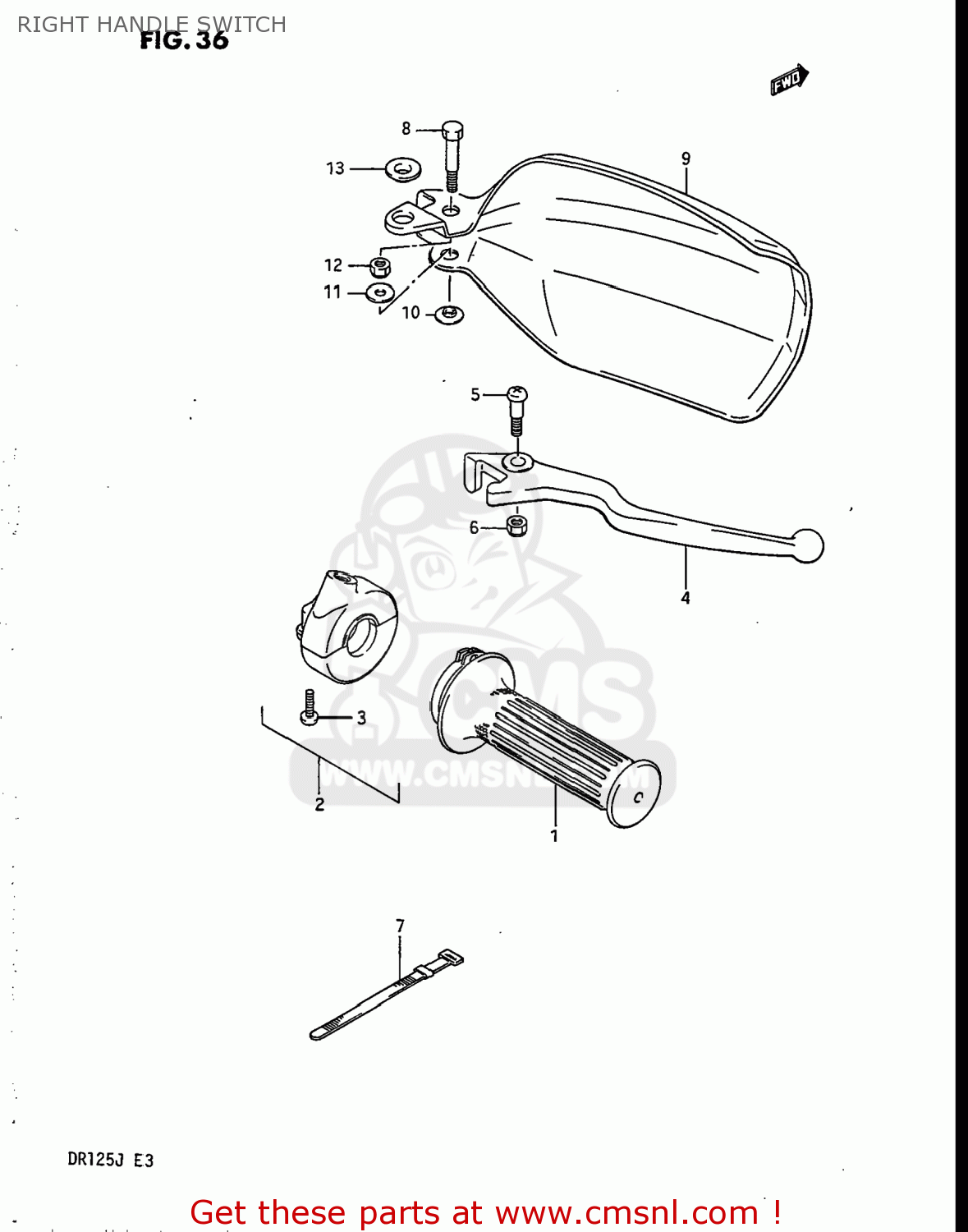

Right handle switch diagram DR125 1987 (H) USA (E03)
RIGHT HANDLE SWITCH DR125 1987 (H) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5711037200
ref: 1
GRIP,THROTTLE
€ 20.50
2
5710037400
ref: 2
CASE ASSY,THROTTLE
€ 52.50
3
0211205208
ref: 3
02112-05207
SCREW 5X20
€ 3.00
4-1
5742113000
ref: 4-1
57421-13001
LEVER,BRAKE
€ 18.00
4-2
5742113010
ref: 4-2
57421-13011
LEVER,BRAKE
€ 38.50
5-1
5743113010
ref: 5-1
09139-06114
SCREW
€ 5.50
5-2
5743113000
ref: 5-2
57431-13001
SCREW
€ 5.00
6
0831921065
ref: 6
08319-2106B
NUT
€ 2.50
7
0940712402
ref: 7
CLAMP(L:120)
€ 3.00
8
5743114A00
ref: 8
BOLT,LEVER PIVOT
€ 6.50
9-1
5734114A00163
ref: 9-1
57341-14A00-10V
COVER,KNUCKLE,RIGHT
€ 18.50
9-2
5734114A0025Y
ref: 9-2
COVER,KNUCKLE,RIGHT
€ 14.50
10
0916906033
ref: 10
WASHER
€ 1.50
11
0916006019
ref: 11
WASHER(6.5X16X1.2)
€ 1.50
12
0831921068
ref: 12
08319-2106A
NUT 6MM
€ 2.00
13
0916910010
ref: 13
WASHER
€ 3.00
