DR125 1987 (H) USA (E03)

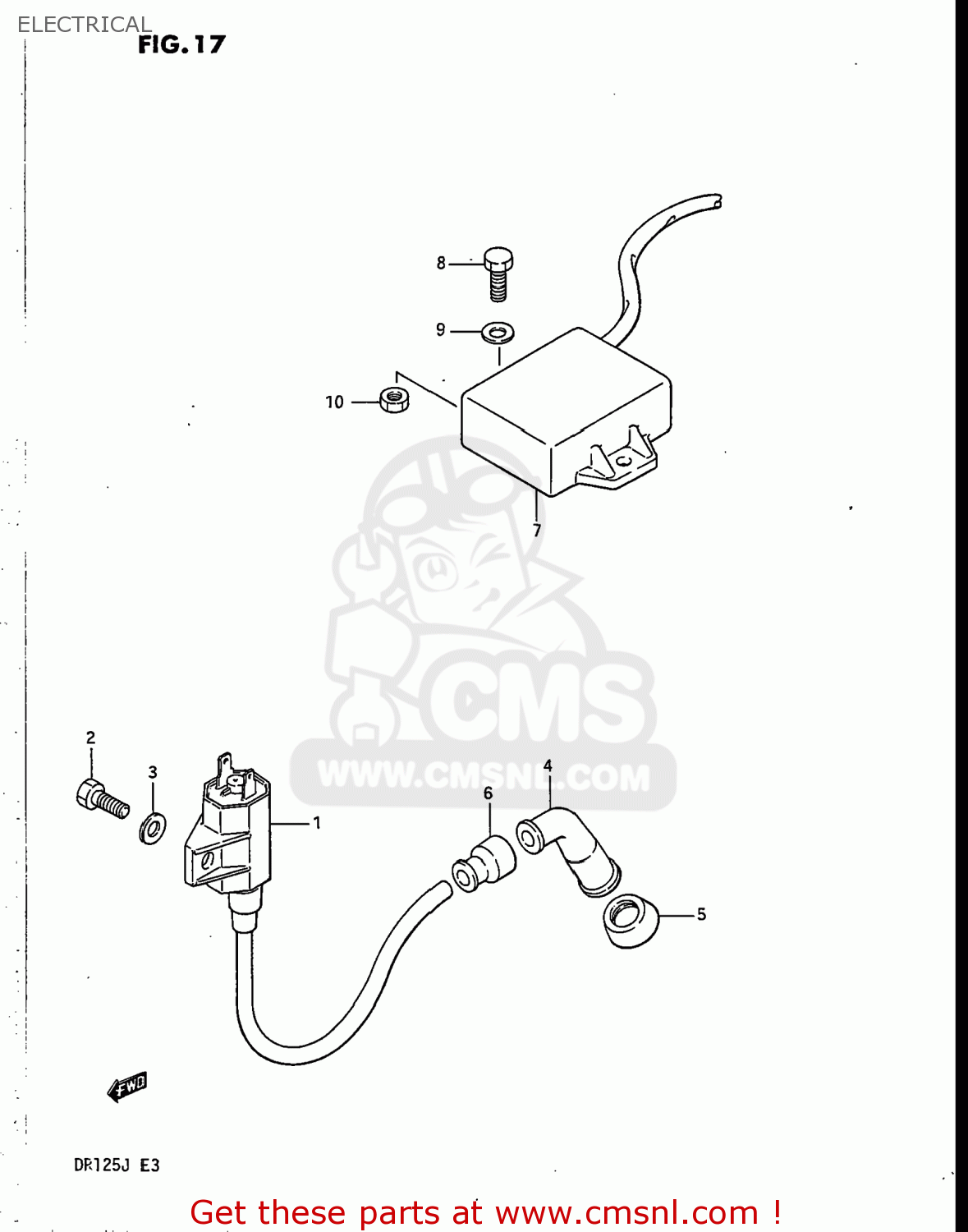

Electrical diagram DR125 1987 (H) USA (E03)
ELECTRICAL DR125 1987 (H) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3341042A00
ref: 1
33410-22AV0
COIL ASSEMBLY,IGNITION
€ 80.50
2
0110706166
ref: 2
01500-0616A
BOLT
€ 2.00
3
0832221066
ref: 3
08322-0106B
WASHER, LOWER
€ 2.00
4
3351043010
ref: 4
CAP,SPARK PLUG
€ 11.50
5
3354124510
ref: 5
33541-47D00
SEAL,SPARK PLUG CAP
€ 7.00
6-1
3354298000
ref: 6-1
33542-38B00
SEAL,SPARK PLU
€ 4.50
6-2
3354238B00
ref: 6-2
SEAL,HIGH TENSION CORD
€ 4.50
7
3290044A00
ref: 7
CDI UNIT
€ 250.50
8
0110706166
ref: 8
01500-0616A
BOLT
€ 2.00
9
0832221066
ref: 9
08322-0106B
WASHER, LOWER
€ 2.00
10
0831011066
ref: 10
08310-0006A
NUT
€ 2.00
