CARBURETOR (MODEL V/W/X)
DR125SEU 1997 (V) GERMANY (E22)

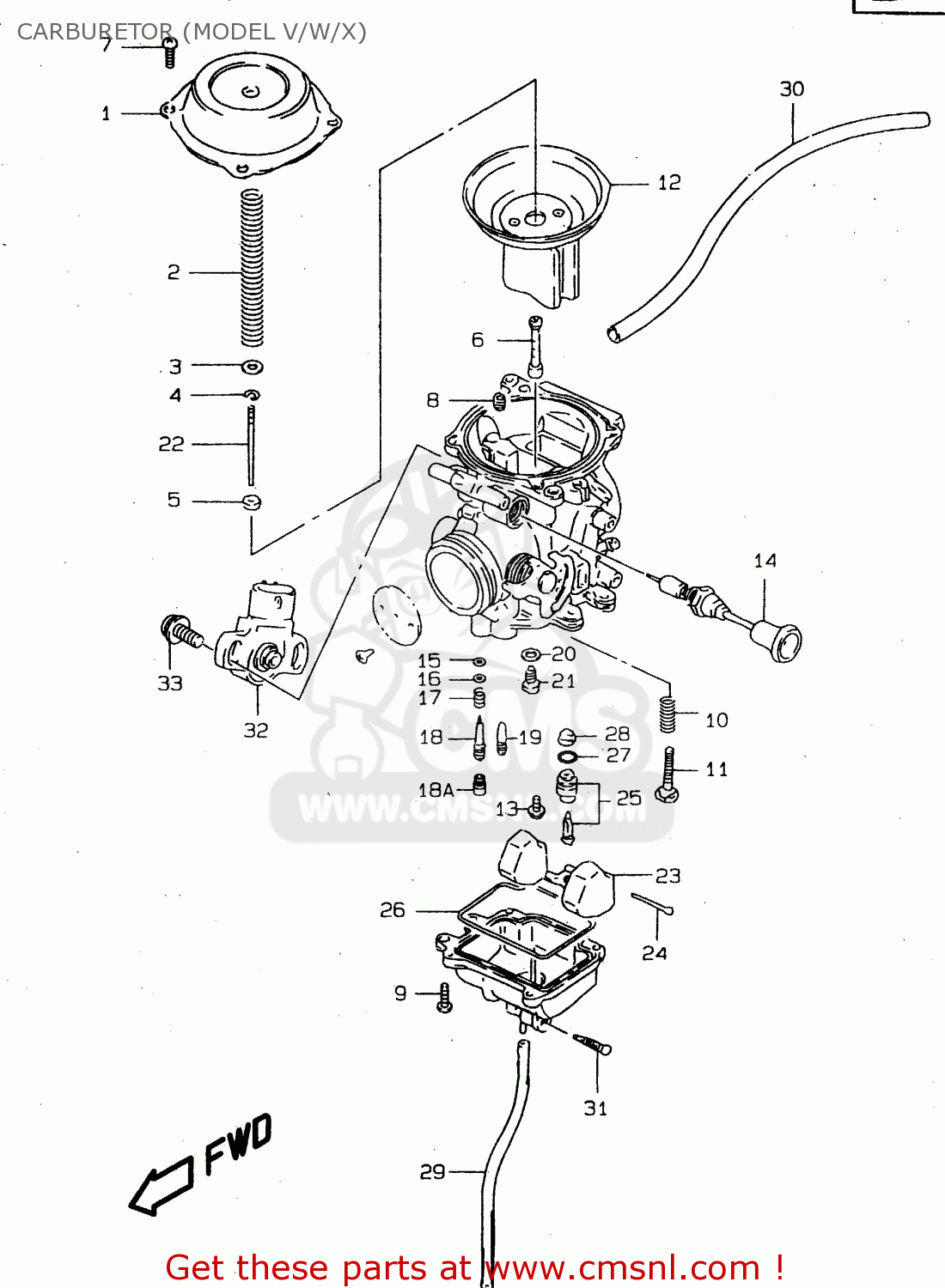

Carburetor (model v/w/x) diagram DR125SEU 1997 (V) GERMANY (E22)
CARBURETOR (MODEL V/W/X) DR125SEU 1997 (V) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
0
1320044AF0
ref: 0
CARBURETOR ASSY
€ 472.00
0
1320044AM0
ref: 0
E18
CARBURETOR ASSY
€ 0.00
0
1320044AG0
ref: 0
DR125SEV/SEW/SEX E22
CARBURETOR ASSY
€ 534.50
0
1320044AH0
ref: 0
DR125SEUV/SEUW/SEUX
CARBURETOR ASSY
€ 0.00
1
1350242A00
ref: 1
COVER,DIAPHRAGM
€ 25.00
2
1341742A00
ref: 2
SPRING
€ 6.00
3
1338242A00
ref: 3
RING
€ 3.50
4
1339410010
ref: 4
CLIP
€ 4.50
5
1338747010
ref: 5
RING
€ 7.50
6
0949400908
ref: 6
JET,NEEDLE(P-5)
€ 29.50
7
0211204083
ref: 7
SCREW
€ 2.00
8
0949330003
ref: 8
JET,AIR(150)
€ 13.00
8
0949335001
ref: 8
E18
JET,AIR (175)
€ 0.00
9
0211204123
ref: 9
SCREW
€ 1.50
10
1326837420
ref: 10
SPRING,THROTTLE SCREW
€ 3.50
11
1326725D00
ref: 11
<-13267-37100
ADJUSTER
€ 9.00
12
1350028A00
ref: 12
DIAPHRAGM ASSY
€ 183.00
13
1360243410
ref: 13
SCREW
€ 2.50
14
1341144AF0
ref: 14
PLUNGER ASSY
€ 38.00
15
1329529900
ref: 15
O RING,PILOT AIR SCREW
€ 4.00
16
1329129900
ref: 16
WASHER
€ 2.00
17
1326847070
ref: 17
SPRING
€ 5.00
18
1327947070
ref: 18
E4, E34
SCREW,PILOT
€ 11.50
18
1327947070
ref: 18
E18
SCREW,PILOT
€ 11.50
18
1327947070
ref: 18
DR125SEV/SEW/SEX E22
SCREW,PILOT
€ 11.50
18
1327947070
ref: 18
DR125SEUV/SEUW/SEUX
SCREW,PILOT
€ 11.50
18A
1328105A00
ref: 18A
E18
PLUG
€ 3.50
19
0949222016
ref: 19
JET,PILOT(40)
€ 9.50
20
1338203110
ref: 20
<-13332-44080
WASHER
€ 2.50
21
0949122016
ref: 21
E4, E18, E34, DR125S
JET,MAIN(110)
€ 7.00
21
0949122015
ref: 21
DR125SEUV/SEUW/SEUX
JET,MAIN(112.5)
€ 11.00
22
1338342A00
ref: 22
NEEDLE,JET
€ 10.00
22
1338342A00
ref: 22
E18
NEEDLE,JET
€ 10.00
23
1325042A00
ref: 23
FLOAT
€ 27.00
24
1325492311
ref: 24
PIN,FLOAT
€ 2.00
25
1337044500
ref: 25
VALVE ASSY,NEEDLE
€ 40.50
26
1325142A00
ref: 26
O RING,FLOAT CHAMBER
€ 7.50
27
1337444080
ref: 27
O-RING,NEEDLE VALVE
€ 6.00
28
1337684110
ref: 28
FILTER
€ 6.50
29
1368440A00
ref: 29
L:650->400
HOSE(3X5X650)
€ 7.50
30
0935250823600
ref: 30
L:600->250
HOSE(5X8.2X600)
€ 13.00
31
1324713A00
ref: 31
SCREW,DRAIN
€ 5.50
32
1355013D60
ref: 32
SENSOR ASSY,THROTTLE
€ 129.50
33
1360255A00
ref: 33
SCREW, SENSOR
€ 3.00
