CLUTCH
DR125SEU 1997 (V) GERMANY (E22)

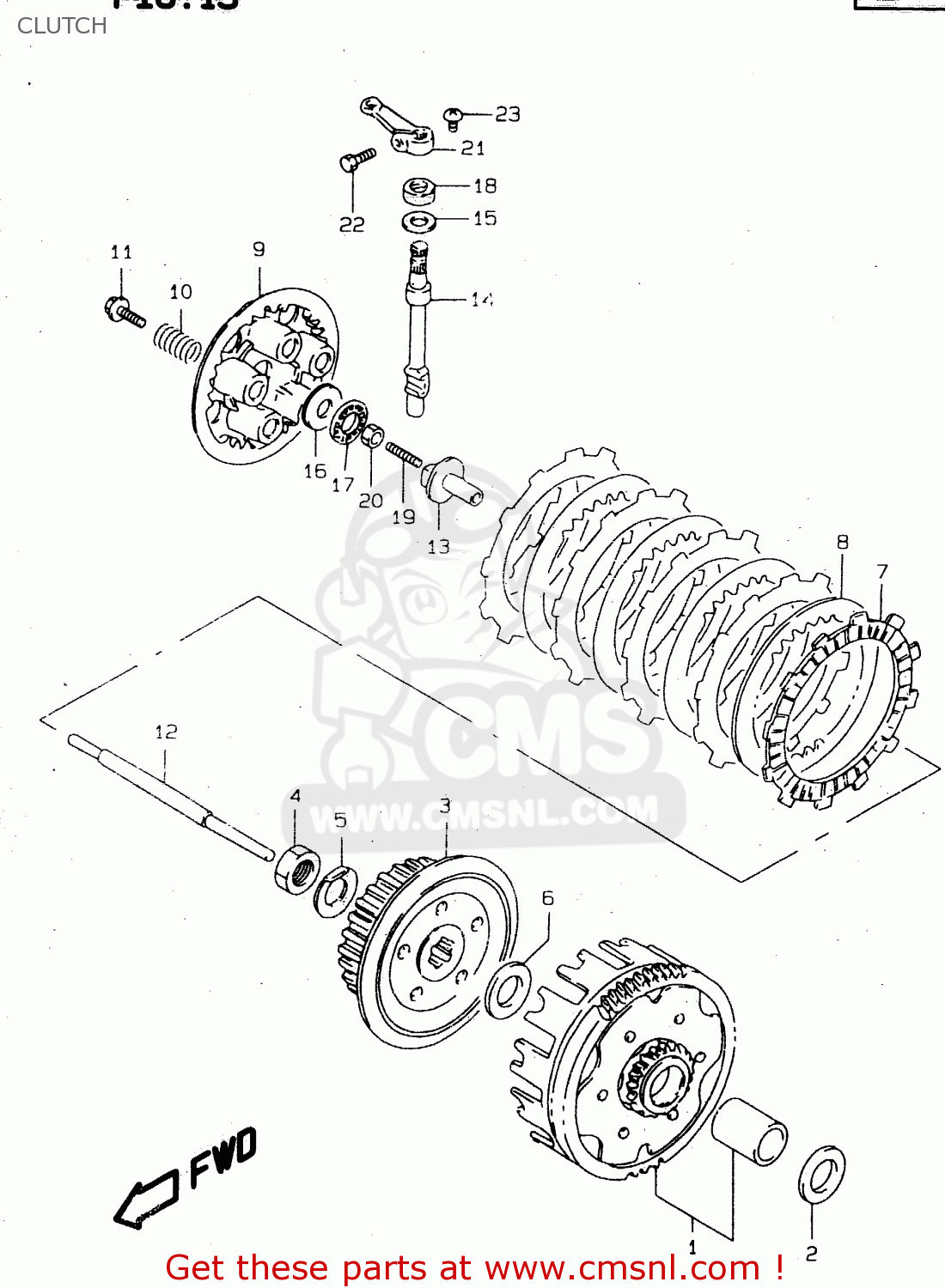

Clutch diagram DR125SEU 1997 (V) GERMANY (E22)
CLUTCH DR125SEU 1997 (V) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1
2120044812
ref: 1
MODEL R/S/T/V/W, NT:
GEAR ASSY,PRI DRIVEN(NT:59)
€ 166.00
1
2120044840
ref: 1
MODEL R/S/T/V/W, E18
GEAR ASSY,PRI DRIVEN(NT:59)
€ 176.00
1
2120044840
ref: 1
MODEL X
GEAR ASSY,PRI DRIVEN(NT:59)
€ 176.00
2
0821120353
ref: 2
WASHER
€ 2.50
3
2141105200
ref: 3
HUB,CLUTCH SLEEVE
€ 47.00
4
0914016005
ref: 4
<-09140-16014
NUT
€ 4.50
5
0916916003
ref: 5
WASHER
€ 2.00
6
0821120352
ref: 6
WASHER
€ 3.00
7
2144142A00
ref: 7
PLATE,CLUTCH DRIVE (NAS)
€ 12.00
8
2145119A00
ref: 8
PLATE,CLUTCH DRIVEN (NAS)
€ 4.50
9
2146214102
ref: 9
PLATE,CLUTCH PRESSURE
€ 16.00
10
0944015021
ref: 10
SPRING
€ 4.50
11
0911605003
ref: 11
MODEL R/S/T/V
BOLT 5X16
€ 2.50
11
0911605020
ref: 11
MODEL W/X
BOLT(5X16)
€ 2.50
12
2311005202
ref: 12
ROD,CLUTCH PUSH
€ 11.00
13
2312142A00
ref: 13
MODEL R/S
PIECE,CLUTCH PUSH
€ 17.00
13
2312138201
ref: 13
MODEL T/V/W/X
PIECE,CLUTCH PUSH
€ 17.00
14
2312205200
ref: 14
CAMSHAFT,CLUTCH RELEASE
€ 31.00
15
0821110201
ref: 15
MODEL R/S/T
WASHER,THRUST
€ 2.00
15
0918110195
ref: 15
MODEL V/W/X
SHIM(10X20X1)
€ 2.00
16
0916015045
ref: 16
WASHER(15.5X28X1)
€ 4.00
17
0926315003
ref: 17
BEARING(15X28X2)
€ 7.00
18
0928210012
ref: 18
SEAL,OIL(10X20X6)
€ 7.50
19
0913406010
ref: 19
SCREW(6X25)
€ 3.00
20
0914006023
ref: 20
NUT
€ 2.00
21
2327146010
ref: 21
ARM,CLUTCH RELEASE
€ 14.50
22
0150006163
ref: 22
BOLT
€ 2.00
23
0214206103
ref: 23
SCREW 6X10
€ 2.00
