REAR COMBINATION LAMP
DR125SEU 1997 (V) GERMANY (E22)

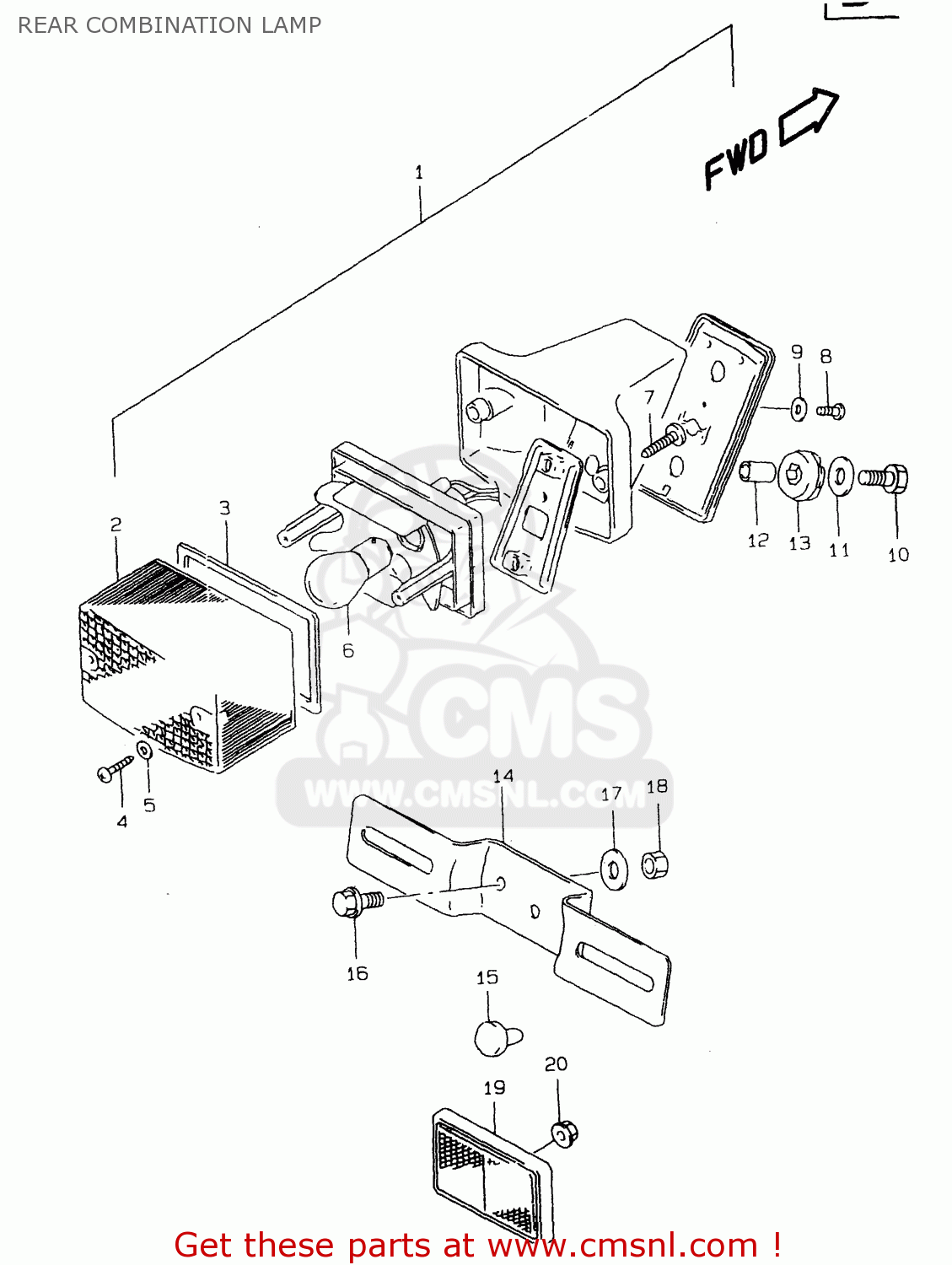

Rear combination lamp diagram DR125SEU 1997 (V) GERMANY (E22)
REAR COMBINATION LAMP DR125SEU 1997 (V) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1
3571042A10
ref: 1
<-35710-42A20
LAMP ASSY,RR COMBINATION
€ 132.00
2
3571236A70
ref: 2
LENS
€ 19.00
3
3571313600
ref: 3
GASKET,RR COMBI LAMP LENS (NAS)
€ 3.50
4
0321104203
ref: 4
SCREW
€ 1.50
5
3562743010
ref: 5
GASKET (NAS)
€ 2.00
6
0947112128
ref: 6
E1
BULB(12V21/5W,BF141-49642A)
€ 6.00
6
0947112083
ref: 6
E4, E18, E22, E34
BULB(12V21/5W)
€ 6.00
7
0321105255
ref: 7
SCREW
€ 2.50
8
0211203107
ref: 8
SCREW
€ 1.50
9
0832201037
ref: 9
WASHER
€ 2.00
10
0150006253
ref: 10
BOLT
€ 2.50
11
0916006057
ref: 11
MODEL R/S/T
WASHER
€ 2.00
11
0916006109
ref: 11
MODEL V/W/X
WASHER(6.5X18X1.6)
€ 2.00
12
0918006270
ref: 12
<-09180-06270
SPACER(6.5X9X17.5)
€ 0.00
13
0932009015
ref: 13
CUSHION
€ 2.50
14
3592714D30
ref: 14
BRACKET,LICENSE PLATE
€ 0.00
15
0932106026
ref: 15
E1, E18, E22
CUSHION
€ 3.50
15
0932106030
ref: 15
E4, E34
CUSHION
€ 3.00
16
0155006163
ref: 16
BOLT
€ 2.50
17
0916006057
ref: 17
MODEL R/S/T
WASHER
€ 2.00
17
0916006109
ref: 17
MODEL V/W/X
WASHER(6.5X18X1.6)
€ 2.00
18
0831000063
ref: 18
NUT 6MM
€ 2.00
19
3597014A00
ref: 19
RR ASSY,RR
€ 15.50
20
0831610053
ref: 20
NUT
€ 2.50
