REAR SWINGING ARM
DR125SEU 1997 (V) GERMANY (E22)

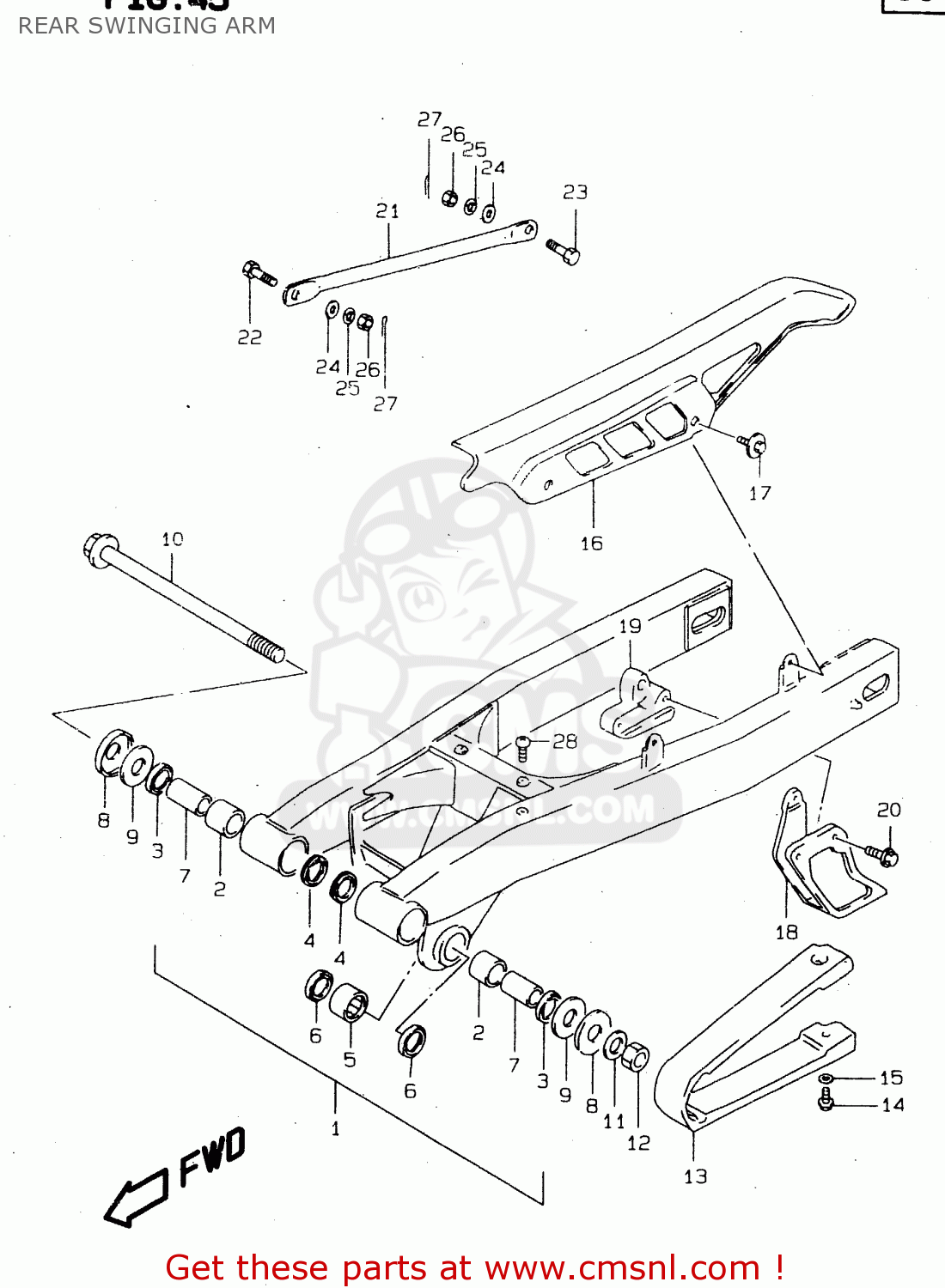

Rear swinging arm diagram DR125SEU 1997 (V) GERMANY (E22)
REAR SWINGING ARM DR125SEU 1997 (V) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1
6100044A3013L
ref: 1
SWINGINGARM ASSY,RR
€ 356.00
2
6126113700
ref: 2
BUSHING,RR SWGARM PIVOT
€ 8.00
3
0928320031
ref: 3
SEAL,OIL(20X27X5)
€ 5.00
4
0928320031
ref: 4
SEAL,OIL(20X27X5)
€ 5.00
5
0926320053
ref: 5
BEARING(20X27X25)
€ 15.50
6
6264744A00
ref: 6
SEAL,CUSHION LEVER OUT DUST
€ 3.50
7
6125142A00
ref: 7
SPACER,RR SWGARM PVT
€ 9.50
8
6126240400
ref: 8
COVER,RR SWGARM DUST SEAL
€ 4.00
9
0821114322
ref: 9
WASHER
€ 2.50
10
6121126B01
ref: 10
SHAFT,RR SWINGINGARM PIVOT
€ 16.50
11
0916014027
ref: 11
MODEL R
WASHER(14.2X24X2.3)
€ 2.50
11
0916014501
ref: 11
MODEL S/T/V
WASHER
€ 2.50
11
0916014057
ref: 11
MODEL W/X
WASHER(14.5X24X2.3)
€ 2.50
12
0915914019
ref: 12
NUT
€ 8.50
13
6127344A00
ref: 13
BUFFER,CHAIN TOUCH DEFENSE
€ 24.00
14
0155005163
ref: 14
MODEL R/S
BOLT
€ 2.00
14
0214205163
ref: 14
MODEL T/V/W/X
SCREW
€ 2.50
15
0916905012
ref: 15
WASHER
€ 3.00
16
6131101A03
ref: 16
CASE,CHAIN
€ 33.50
17
0911606096
ref: 17
BOLT(6X10)
€ 2.00
18
6134113A00
ref: 18
GUIDE,CHAIN
€ 20.00
19
6134542A00
ref: 19
RUBBER,CHAIN GUIDE
€ 7.50
20
0155006203
ref: 20
BOLT
€ 2.50
21
643114870013L
ref: 21
TORQUE LINK,RR
€ 11.50
22
0911108015
ref: 22
BOLT(8X22)
€ 3.00
23
0911108013
ref: 23
BOLT(8X26.5)
€ 3.00
24
0832201083
ref: 24
WASHER
€ 1.50
25
0916208008
ref: 25
WASHER,LOCK
€ 2.00
26
0914008008
ref: 26
NUT
€ 1.50
27
0411120208
ref: 27
PIN 20X20
€ 1.50
28
0214206203
ref: 28
SCREW
€ 2.00
