CRANKCASE COVER
DR125SEU 1997 (V) GERMANY (E22)

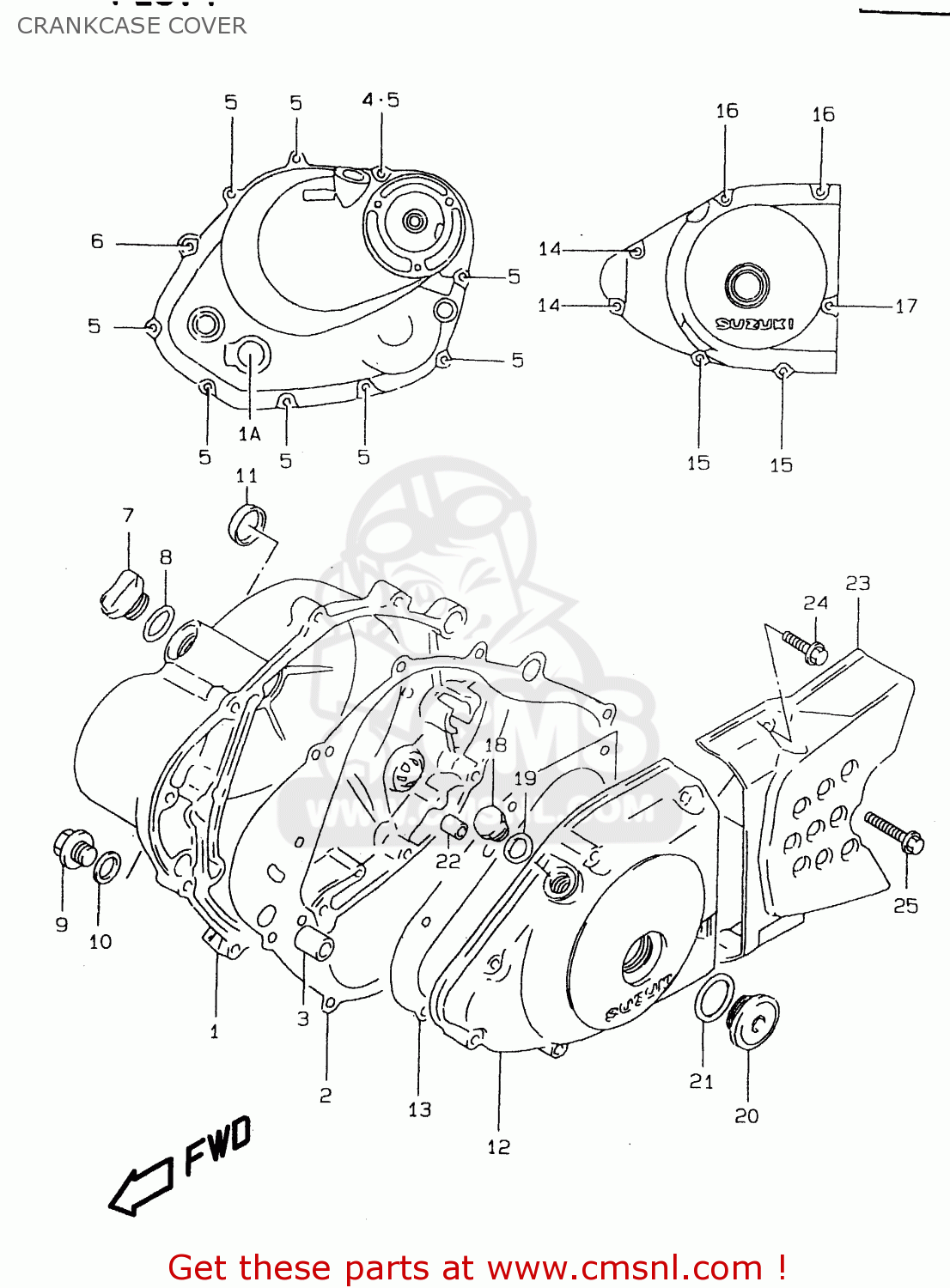

Crankcase cover diagram DR125SEU 1997 (V) GERMANY (E22)
CRANKCASE COVER DR125SEU 1997 (V) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1
1134042A20
ref: 1
COVER,CLUTCH
€ 138.00
1A
1197145010
ref: 1A
LENS,OIL LEVEL CHECK
€ 13.00
2
1148205211
ref: 2
<-11482-05210
GASKET,CLUTCH COVER (NAS)
€ 13.00
3
0421113189
ref: 3
<-09206-13001
PIN
€ 2.50
4
0916806024
ref: 4
GASKET(5.8X11X1.2) (NAS)
€ 2.00
5
0154706303
ref: 5
BOLT,G/S SWITC
€ 3.00
6
0154706453
ref: 6
BOLT
€ 3.00
7
0925920019
ref: 7
PLUG
€ 9.50
8
0928017003
ref: 8
O RING(D:3.1,ID:16.8)
€ 2.00
9
0924714026
ref: 9
PLUG(14X12)
€ 3.50
10
0916814002
ref: 10
GASKET(13.8X18.8X4.8) (NAS)
€ 2.50
11
1134212C51
ref: 11
PLUG,CLUTCH COVER KICK
€ 7.00
12
1135142A20
ref: 12
COVER,MAGNETO
€ 97.00
13
1148305312
ref: 13
<-11483-05310
GASKET,MAGNETO COVER (NAS)
€ 8.50
14
0154706303
ref: 14
BOLT,G/S SWITC
€ 3.00
15
0154706353
ref: 15
BOLT
€ 3.00
16
0154706403
ref: 16
BOLT
€ 3.00
17
0154706503
ref: 17
BOLT
€ 3.50
18
0924712104
ref: 18
PLUG,12X9
€ 2.50
19
0916812002
ref: 19
GASKET(12.1X16.2X3.7) (NAS)
€ 2.00
20
0925926011
ref: 20
PLUG(26X9)
€ 8.50
21
0928022008
ref: 21
O RING(D:3.1,ID:22.7)
€ 2.50
22
0421109129
ref: 22
PIN
€ 2.00
23
1136044A20
ref: 23
COVER,ENGINE SPROCKET
€ 38.00
24
0154706253
ref: 24
SCREW
€ 2.50
25
0154706353
ref: 25
BOLT
€ 3.00
