CARBURETOR
DR200SE 1997 (V) USA (E03)

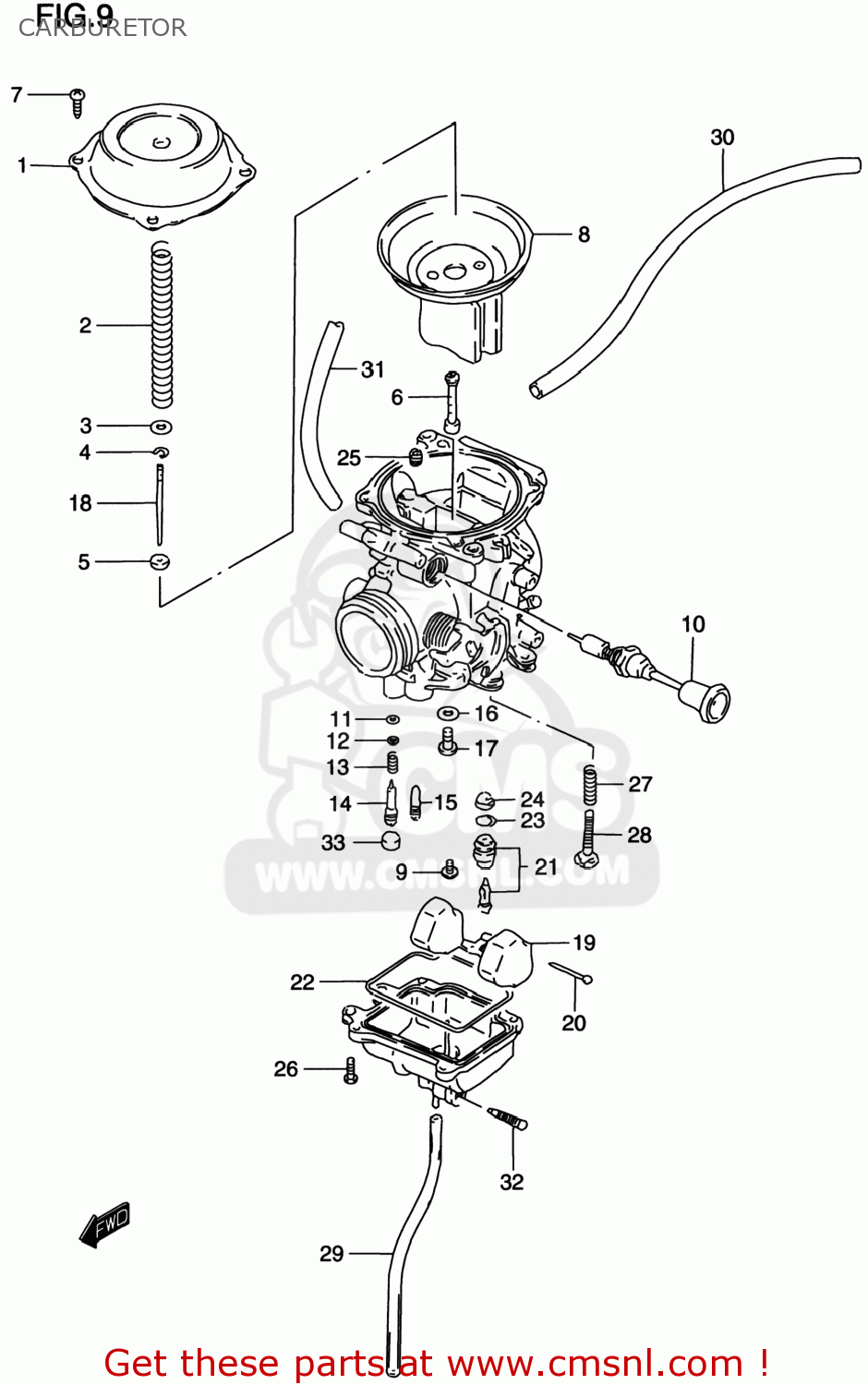

Carburetor diagram DR200SE 1997 (V) USA (E03)
CARBURETOR DR200SE 1997 (V) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1320042AC0
ref:
13200-42AC1
CARBURETOR ASSEMBLY
€ 325.50
1320042AF0
ref:
CARBURETOR ASSY
€ 0.00
1320042AC0
ref:
13200-42AC1
CARBURETOR ASSEMBLY
€ 325.50
1320042AE0
ref:
13200-42AE1
CARBURETOR ASSEMBLY
€ 325.50
1
1350242A00
ref: 1
COVER,DIAPHRAGM
€ 25.00
2
1341742A00
ref: 2
SPRING
€ 6.00
3
1338242A00
ref: 3
RING
€ 3.50
4
1339410010
ref: 4
CLIP
€ 4.50
5
1338747010
ref: 5
RING
€ 7.50
6-1
0949400881
ref: 6-1
JET,NEEDLE(P-5M)
€ 0.00
6-2
0949400514
ref: 6-2
JET,NEEDLE(P-5)
€ 16.00
7
0211204083
ref: 7
02112-0408A
SCREW
€ 2.00
8
1350042A00
ref: 8
DIAPHRAGM ASSY
€ 123.00
9
1360243410
ref: 9
SCREW
€ 2.50
10
1341142A20
ref: 10
PLUNGER ASSY
€ 26.50
11
1329529900
ref: 11
O RING,PILOT AIR SCREW
€ 4.00
12
1329129900
ref: 12
WASHER
€ 2.00
13
1326847070
ref: 13
SPRING
€ 5.00
14-1
1327947070
ref: 14-1
SCREW,PILOT
€ 11.50
14-2
1327947070
ref: 14-2
SCREW,PILOT
€ 11.50
15-1
0949235008
ref: 15-1
JET,PILOT(35)
€ 7.50
15-2
0949240014
ref: 15-2
JET(40)
€ 8.50
16-1
1333244080
ref: 16-1
13382-03110
WASHER,NEEDLE NOZZLE
€ 2.50
16-2
1338203110
ref: 16-2
WASHER
€ 2.50
17-1
0949125010
ref: 17-1
JET,MAIN(125)
€ 8.50
17-2
0949124013
ref: 17-2
JET,MAIN(122.5)
€ 7.00
18-1
1338342AC0
ref: 18-1
NEEDLE,JET(5D77-1)
€ 0.00
18-2
1338342A00
ref: 18-2
NEEDLE,JET
€ 10.00
19
1325042A00
ref: 19
FLOAT
€ 27.00
20
1325492311
ref: 20
PIN,FLOAT
€ 2.00
21
1337044500
ref: 21
VALVE ASSY,NEEDLE
€ 40.50
22
1325142A00
ref: 22
O RING,FLOAT CHAMBER
€ 7.50
23
1337444080
ref: 23
13374-35C00
O-RING,NEEDLE VALVE
€ 6.00
24
1337684110
ref: 24
13376-19F00
FILTER
€ 6.50
25
0949327001
ref: 25
JET,AIR(135)
€ 11.00
26
0211204123
ref: 26
02112-0412A
SCREW
€ 1.50
27
1326837420
ref: 27
SPRING,THROTTLE SCREW
€ 3.50
28-1
1326737100
ref: 28-1
13267-25D00
SCREW,THROTTLE STOP
€ 9.00
28-2
1326725D00
ref: 28-2
ADJUSTER
€ 9.00
29
1368440A00
ref: 29
HOSE(3X5X650)
€ 7.50
30
0935250823600
ref: 30
44420-44AR0
HOSE(5X8.2X600)
€ 13.00
31-1
0935445853600
ref: 31-1
09355-45855-600
HOSE (4.5X8.5X600)
€ 14.00
31-2
0935545855600
ref: 31-2
HOSE(4.5X8.5X600)
€ 14.00
32
1324713A00
ref: 32
13247-02340
SCREW,DRAIN
€ 5.50
33
1328105A00
ref: 33
PLUG
€ 3.50
33
1328105A00
ref: 33
PLUG
€ 3.50
