FRAME COVER (MODEL T/V/W)
DR200SE 1997 (V) USA (E03)

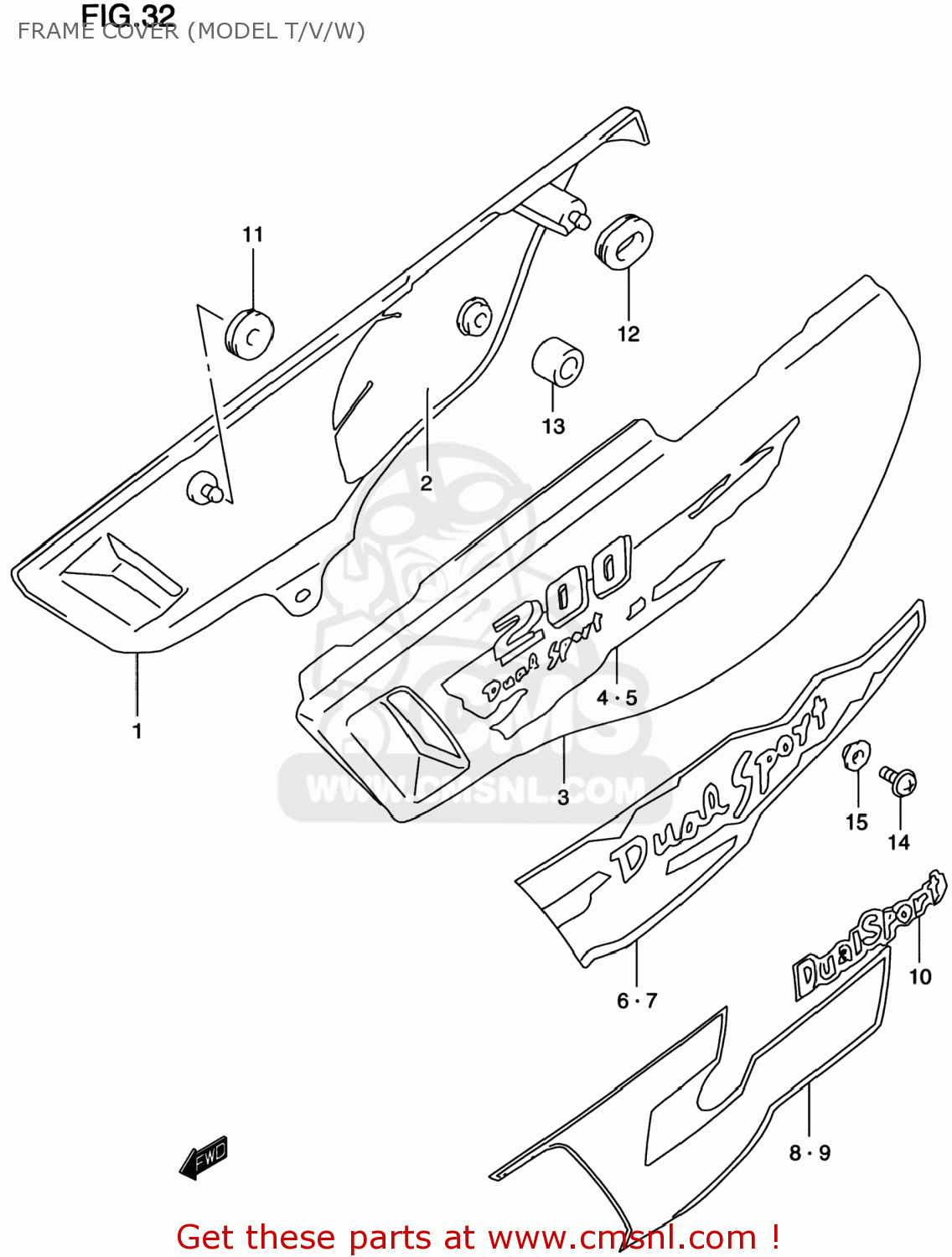

Frame cover (model t/v/w) diagram DR200SE 1997 (V) USA (E03)
FRAME COVER (MODEL T/V/W) DR200SE 1997 (V) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4711144AA030H
ref: 1
COVER,FRAME,R(WHITE)
€ 61.50
2
4716644AA0
ref: 2
SHIELD,FRAME COVER,R
€ 14.50
3
4721144AA030H
ref: 3
COVER,FRAME,L(WHITE)
€ 42.00
4
6813544A60Z65
ref: 4
TAPE,FRAME COVER,RIGHT
€ 0.00
5
6814544A60Z65
ref: 5
TAPE,FRAME COVER,L
€ 0.00
6
6813544A80G3M
ref: 6
TAPE,FRAME COVER,RIGHT
€ 20.00
7
6814544A80G3M
ref: 7
TAPE,FRAME COVER,LEFT
€ 31.00
8
6813544AC0J6Z
ref: 8
TAPE,FRAME COVER,RIGHT
€ 0.00
9
6814544AC0J6Z
ref: 9
TAPE,FRAME COVER,LEFT
€ 0.00
10
6813144A70J7B
ref: 10
EMBLEM,FRAME COVER
€ 0.00
11
0932008018
ref: 11
CUSHION
€ 4.00
12
0932008029
ref: 12
CUSHION
€ 2.50
13
0932110027
ref: 13
CUSHION
€ 5.50
14
0913606017
ref: 14
SCREW(6X16)
€ 2.50
15
0916906028
ref: 15
09169-06041
WASHER
€ 2.00
