FRAME (MODEL T/V/W)
DR200SE 1997 (V) USA (E03)

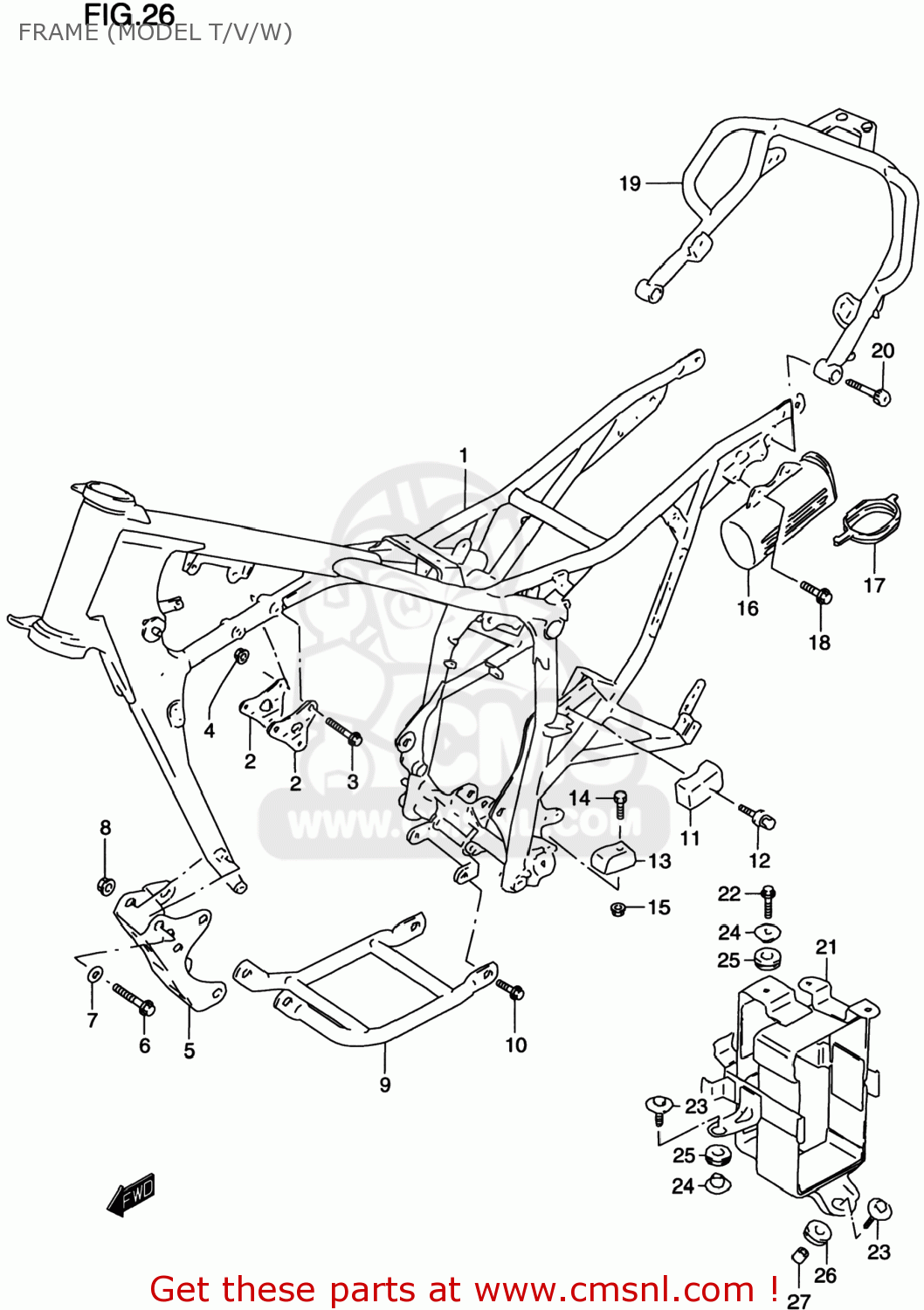

Frame (model t/v/w) diagram DR200SE 1997 (V) USA (E03)
FRAME (MODEL T/V/W) DR200SE 1997 (V) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4110044AB0Z16
ref: 1-1
41100-44AB1-Z16
FRAME COMP
€ 871.00
1-2
4110044AD0Z16
ref: 1-2
41100-44AD1-Z16
FRAME COMP
€ 871.00
2
4199142A00291
ref: 2
PLATE,ENGINE MOUNT UPR
€ 15.00
2
4199142A00291
ref: 2
PLATE,ENGINE MOUNT UPR
€ 15.00
3
0910308332
ref: 3
BOLT(8X53)
€ 3.50
4
0831931083
ref: 4
08319-3108A
NUT
€ 2.50
5-1
4199244AA0Z16
ref: 5-1
PLATE,ENGINE MOUNTING
€ 0.00
5-2
4199244AA1Z16
ref: 5-2
41992-44AA0-Z16
PLATE,ENG MTG LWR
€ 0.00
6
0910308328
ref: 6
BOLT(8X65)
€ 4.00
7
0832101083
ref: 7
08321-0108A
LOCK WASHER
€ 2.50
8
0831931083
ref: 8
08319-3108A
NUT
€ 2.50
9
4251044AA0Z16
ref: 9
PROTECTOR COMP,ENGINE
€ 149.00
10
0155010163
ref: 10
01550-1016A
BOLT
€ 2.50
11
4391144A00
ref: 11
GUIDE,CH CONTROL UPR
€ 12.00
12
0158006353
ref: 12
01580-0635B
BOLT
€ 3.50
13
4391242AA0
ref: 13
GUIDE,CHAIN CONTROL LWR
€ 12.50
14
0150006203
ref: 14
01500-0620A
BOLT
€ 2.00
15
0831931063
ref: 15
08319-3106A
NUT
€ 2.50
16
4155138200
ref: 16
41551-38201
HOLDER,TOOL
€ 17.00
17
4155237210
ref: 17
CAP,HOLDER
€ 5.00
18
0911606144
ref: 18
09116-06165
BOLT 6X16
€ 2.50
19
4398044AB21TS
ref: 19
GRIP,RR
€ 187.50
20
0910608105
ref: 20
BOLT(8X30)
€ 3.00
21
4154044AA0
ref: 21
HOLDER,BATTERY
€ 0.00
22
0155006203
ref: 22
01550-0620A
BOLT
€ 2.50
23
0911606047
ref: 23
BOLT(6X25)
€ 2.00
24-1
4157047D00
ref: 24-1
09169-06065
SPACER COMP,BATTERY
€ 3.00
24-2
0916906065
ref: 24-2
WASHER
€ 3.50
25
0932008021
ref: 25
CUSHION
€ 4.00
26-1
0932010043
ref: 26-1
09320-10501
CUSHION
€ 5.50
26-2
0932010501
ref: 26-2
CUSHION
€ 5.50
27-1
0918006210
ref: 27-1
09180-06285
SPACER (6.8X10X9)
€ 2.50
27-2
0918006285
ref: 27-2
SPACER(6.5X10X9)
€ 2.50
