REAR WHEEL
DR200SE 1997 (V) USA (E03)

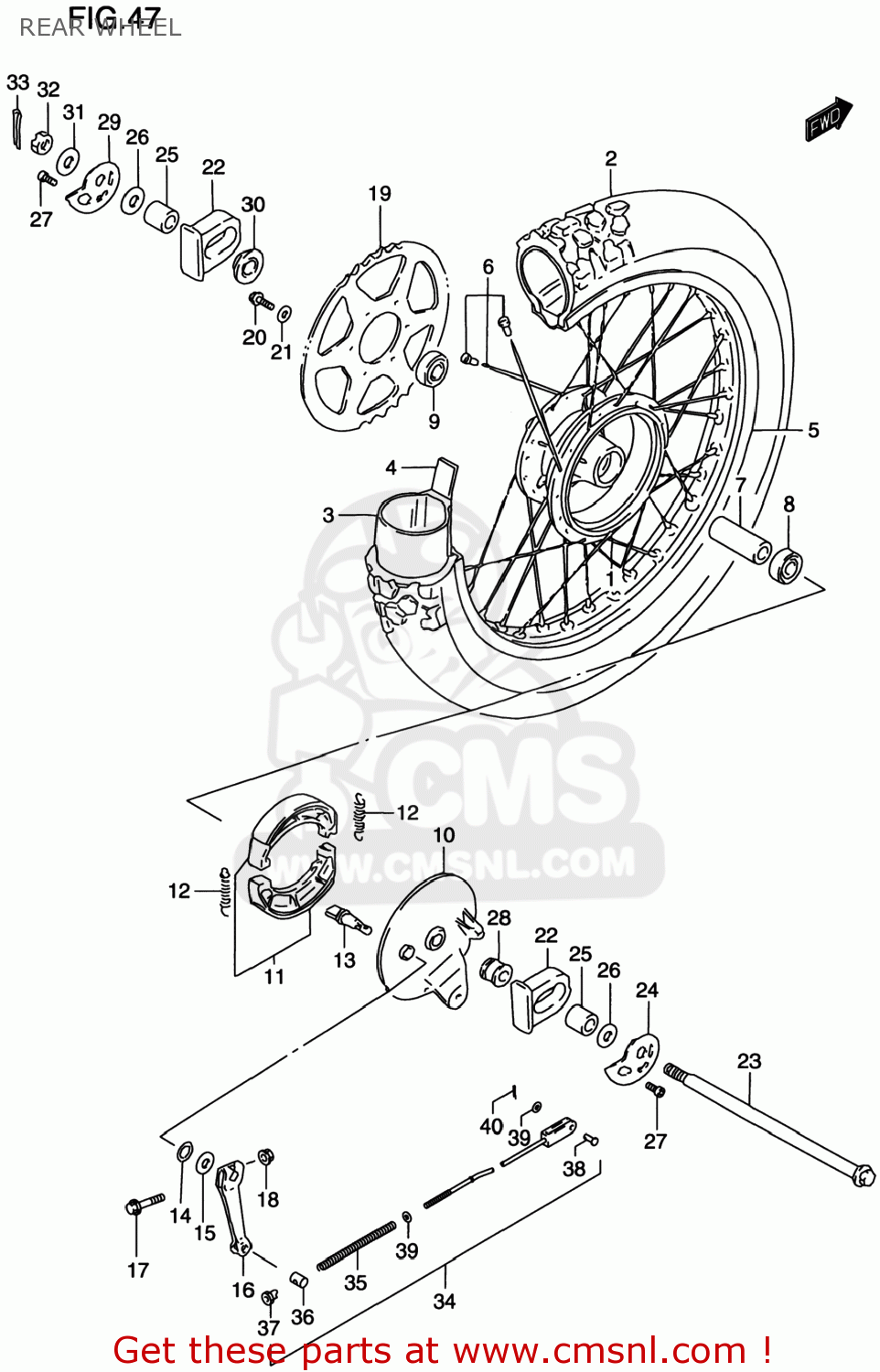

Rear wheel diagram DR200SE 1997 (V) USA (E03)
REAR WHEEL DR200SE 1997 (V) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6411044A10
ref: 1
HUB,RR WHEEL
€ 200.50
2
6511042AA0
ref: 2
TIRE,RR(100/90-18 56P)
€ 0.00
2
6511042AA0
ref: 2
TIRE,RR(100/90-18 56P)
€ 0.00
3
6520042AA0
ref: 3
TUBE ASSEMBLY,WHEEL,INNER
€ 34.00
4
6526133030
ref: 4
PROTECTOR,INNER TUBE
€ 5.50
5
6531142AA0
ref: 5
RIM,RR WHEEL(18X2.15 AL)
€ 0.00
6
6532042AA0
ref: 6
SPOKE ASSY,RR WHEEL
€ 47.50
7
0918015013
ref: 7
SPACER(15.3X21.7X107.5)
€ 7.50
8
0814362027
ref: 8
BEARING
€ 12.50
9
0812363027
ref: 9
BEARING
€ 19.00
10
6421044A00
ref: 10
PANEL,RR BRAKE ANCHOR
€ 128.50
11
5440007870
ref: 11
SHOE SET,BRAKE (NAS)
€ 35.00
12
0944307001
ref: 12
09443-07025
SPRING(L:34)
€ 2.50
13
5444129305
ref: 13
CAM,BRAKE
€ 13.00
14
0928014011
ref: 14
O RING(D:2.5,ID:13.8)
€ 3.50
15
0916014055
ref: 15
WASHER(14.5X22X1.6)
€ 2.50
16
6445130501
ref: 16
LEVER,RR BRAKE CAM
€ 15.00
17
0155006403
ref: 17
01550-0640A
BOLT
€ 2.00
18
0831610063
ref: 18
08316-1006B
NUT
€ 2.50
19
6451142A01
ref: 19
SPROCKET,RR(NT:45)
€ 54.00
20
0910308048
ref: 20
BOLT(8X30)
€ 3.50
21
0916408020
ref: 21
WASHER
€ 2.50
22
6147042A00
ref: 22
CAP,RR SWINGING ARM
€ 8.50
23
6471144A11
ref: 23
AXLE,RR
€ 30.00
24
6141142A00
ref: 24
ADJUSTER,CHAIN,R
€ 7.00
25
6141342A00
ref: 25
SPACER,CHAIN ADJUSTER
€ 5.00
26
0916015039
ref: 26
WASHER(15.5X30X3.2)
€ 1.50
27
6143142A10
ref: 27
BOLT,CHAIN ADJUSTER
€ 4.50
28
6474142A00
ref: 28
SPACER,RR AXLE,R
€ 5.50
29
6142142A00
ref: 29
ADJUSTER,CHAIN,L
€ 7.00
30
6475042A00
ref: 30
SPACER,RR AXLE,L
€ 7.50
31
0916014033
ref: 31
09160-14062
WASHER
€ 3.00
32
0831440143
ref: 32
08314-4014B
NUT
€ 3.00
33
0411130308
ref: 33
04111-3030A
COTTER PIN
€ 1.50
34
4330042A02
ref: 34
ROD ASSY,RR BRAKE
€ 12.50
35
0944009004
ref: 35
SPRING
€ 2.00
36
0920913018
ref: 36
PIN(13X18)
€ 3.50
37
0915006014
ref: 37
09150-06010
NUT
€ 3.50
38
0920006013
ref: 38
PIN(L:13.5)
€ 2.00
39
0832201063
ref: 39
08322-0106B
WASHER
€ 2.00
40
0411120208
ref: 40
04111-2020A
PIN 20X20
€ 1.50
