SPEEDOMETER
DR200SE 1997 (V) USA (E03)

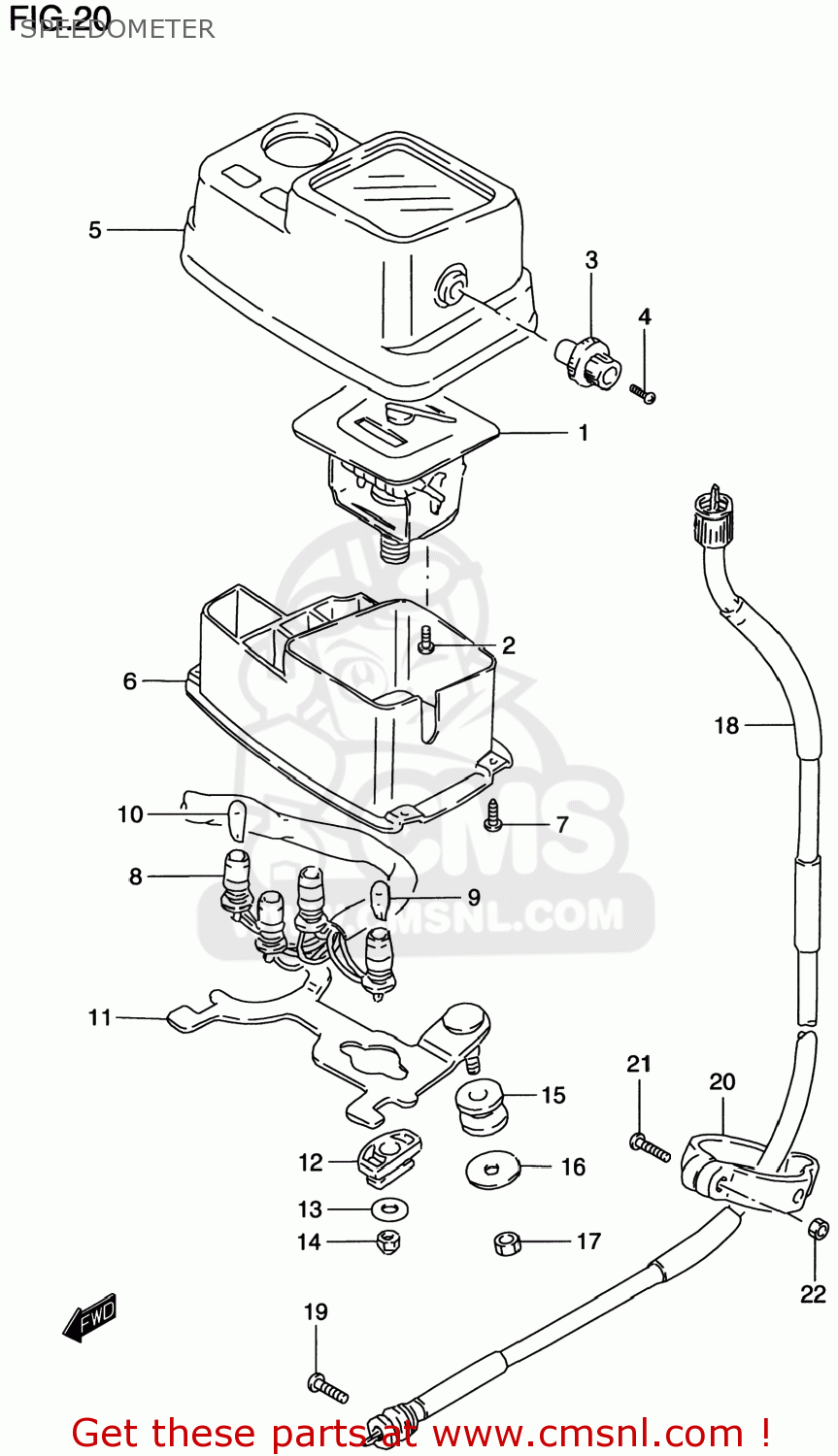

Speedometer diagram DR200SE 1997 (V) USA (E03)
SPEEDOMETER DR200SE 1997 (V) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3412044AB0
ref: 1-1
SPEEDOMETER
€ 0.00
1-2
3412044A90
ref: 1-2
SPEEDOMETER
€ 392.00
2
0211274123
ref: 2
02112-7412A
SCREW
€ 2.50
3
3412414A10
ref: 3
KNOB,TRIP
€ 8.50
4
0913902003
ref: 4
SCREW(2X6)
€ 2.00
5-1
3415044AE0
ref: 5-1
HOOD,METER
€ 0.00
5-2
3415044AD0
ref: 5-2
HOOD,METER
€ 34.50
6
3411114A10
ref: 6
CASE,METER
€ 36.50
7
3418412B00
ref: 7
SCREW
€ 1.50
8
3417344A90
ref: 8
SOCKET ASSY
€ 0.00
9
0947112028
ref: 9
BULB(12V3.4W,T10)
€ 3.50
10
0947112077
ref: 10
BULB(12V1.7W,T10,WB121)
€ 1.00
11
3495044A00
ref: 11
BRACKET,METER
€ 40.00
12
3418914A10
ref: 12
CUSHION
€ 5.00
13-1
0916005017
ref: 13-1
09160-05043
WASHER (5.5X16X1.2)
€ 2.50
13-2
0916005043
ref: 13-2
WASHER(5.5X16X1.2)
€ 2.50
14
0831000057
ref: 14
NUT
€ 2.50
15
3495615100
ref: 15
CUSHION
€ 4.00
16-1
0916006006
ref: 16-1
09160-06084
WASHER
€ 2.00
16-2
0916006132
ref: 16-2
09160-06084
WASHER(6.5X18X1.6)
€ 2.00
16-3
0916006084
ref: 16-3
WASHER(6.5X18X1.6)
€ 2.00
17
0831000063
ref: 17
08310-0006A
NUT 6MM
€ 2.00
18
3491044A20
ref: 18
CABLE ASSY,SPEEDOMETER
€ 42.50
19
0211205163
ref: 19
02112-0516A
SCREW
€ 2.00
20
3493801A00
ref: 20
CLAMP,SPEEDOMETER CABLE
€ 7.50
21
0211205163
ref: 21
02112-0516A
SCREW
€ 2.00
22
0831000053
ref: 22
08310-0005A
NUT
€ 2.50
